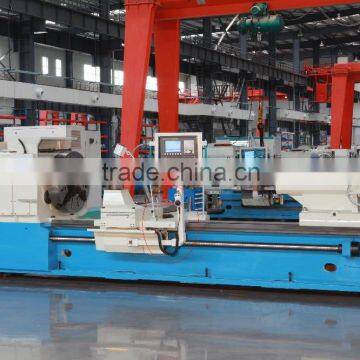

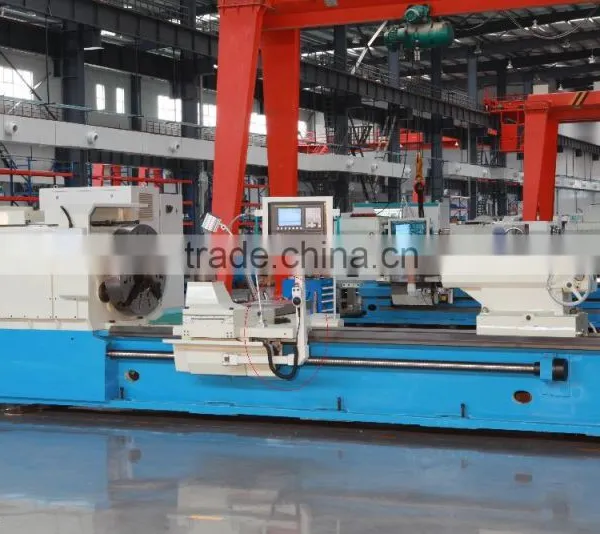

CK6628x3000 cnc oil pipe threading lathe machine for sale

FOB Price

USD $123,000 - $125,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	1000mm	Place of Origin	Liaoning, China
Brand Name	LFM	Model Number	CK6628x3000 cnc oil pipe threading lathe machine
Voltage	3Phx220V 380V 400V 415V 440V 480V, 50/60Hz	Power(W)	18.5kW
Dimension(LWH)	depends	Weight	depends
Certification	ISO9001:2008; GB/T19001:2008	After-sales Service Provided	Engineers available to service machinery overseas

CK6628x3000 cnc oil pipe threading lathe machine

Main Usage

Such cnc oil pipe threading lathe is mainly used for processing all kinds of pipe threads:

including inner, outer, taper, metric and inch thread etc.,

and also undertake various turning works such as inner and outer cylindrical surface, conical surface and end surfaces.

Main Technical Data

Specifications	Unit	Parameter
Max. Swing over bed	mm	1,000
Max. Swing over carriage	mm	640
Range to turning diameter of pipe	mm	50 to 280
Max. Length of work-piece	mm	2,000
Max. Length to be turned	mm	1,700
Max. Supporting weight between two centers	Kg	4,000
Width of bed	mm	600
Diameter of spindle inner hole	mm	280
Range of spindle speed		2 steps; automatic infinitely variable 6.3 to 450 r.p.m
Diameter of chuck	mm	720
Turret type		Vertical 4 positions
Size of tool	mm	32×32
Ball leadscrew		made by China
Travel of X-axis, cross travel	mm	600
Rapid traverse of X & Z axis	mm/ min	X: 4000; Z: 6000
Feed range of X-axis	mm/min	1 to 2000
Feed range of Z-axis	mm/min	1 to 2000 mm/min
Threading range	mm	1 – 200
Torque of X & Z-axis	Nm	22/ 22
Max. Movement of tailstock sleeve	mm	250
Diameter of tailstock sleeve	mm	120
Taper hole of tailstock sleeve		Mores no. 6
Power of main motor	KW	AC18.5
Inverter for adjusting speed of motor		China brand
Movement of tailstock		Manual
Power of motor of oil pump	KW	1.5
Power of cooling motor	KW	0.55
Type of control system		SIEMENS 808/FANUC 0i mate

Factory Overview

kinds of colors for your choice/can be customized
