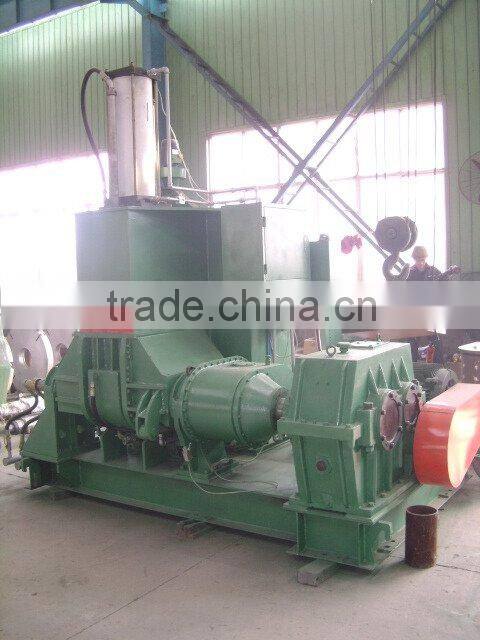

The machine is mainly used for plasticating and mixing of natural rubber,
synthetic rubber, reclaimed rubber and plastics, and used in the mixing of
various low glue degree materials.
The machine is the most advance new type mixing equipment of rubber and
plastics industry, each characteristic is so advanced as the same product offoreign. It furnished with reasonable designing, construction tightly packed,
occupying small area, installing convenience, high efficiency of production,
operating simply. It is easy for cleaning the mixing chamber and replacing color
material, the mixing chamber adopts close construction.
X(S)N Rubber(Plastic)Dispersion Mixer Technical Specification
X(S)N-10x32 | (S)N-20x32 | (S)N-35x30 | X(S)N-55x30 | X(S)N-75x30 | X(S)N-110x30 | |||
Total Vol. of Mixing Chamber | L | 25 | 45 | 75 | 125 | 180 | 250 | |
Working Vol. of Mixing Chamber | L | 10 | 20 | 35 | 55 | 75 | 110 | |
Driving Motor Power | kW | 15 | 30 | 55 | 75 | 110 | 185 | |
Tilting Motor Power | kW | 1.1 | 1.5 | 2.2 | 2.2 | 4 | 4 | |
Tilting Angle | ° | 140 | 140 | 140 | 140 | 140 | 140 | |
Rotational Speed of the Rotor | r/min | 32/23.5 | 32/25 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 | |
Pressure of Compressed Air | MPa | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | |
Capacity of Compressed Air | m³/min | ≥0.5 | ≥0.7 | ≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 | |
Pressure of cooling water | MPa | 0.2~0.4 | 0.2~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | 0.3~0.4 | |
Pressure of heating steam | MPa | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | |
Overall Dimension | L | mm | 2580 | 2630 | 3200 | 3280 | 3330 | 3930 |
W | 1300 | 1520 | 1900 | 1930 | 2620 | 3000 | ||
H | 2280 | 2550 | 2950 | 3070 | 3340 | 3660 | ||
Mass | kg | 3300 | 4500 | 6500 | 7800 | 10500 | 14500 | |
