2016 hot sale W-beam highway guardrail

Name: 2016 hot sale W-beam highway guardrail
Brand: YUANYU
Availability: InStock

FOB Price

USD $20 - $35 / Piece

500 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Tianjin
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	YUANYU
Model Number	Yuanyu-23

Product Description

2016 hot sale W-beam highway guardrail

> product information <

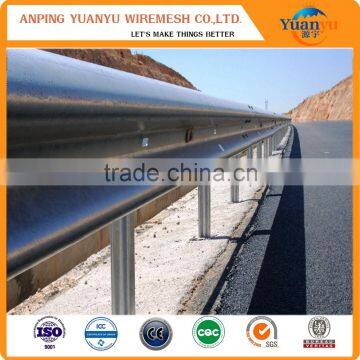

W-beam guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects. So it is most commonly fixed on the side of the highways, dock areas, aisles, especially on curves and slopes for protection against run-off-road collisions.

Our W-beam guardrail product is formed in accordance with the latest highway safety barrier technology for making sure its high durability and maximum strength. It is made of high quality steel, which reduces the impact force caused by mobile equipment to the maximum extent. Meanwhile, the zinc coating or PVC coating perfectly combined to the W-beam guardrail keeps the products free of damages of corrosion and rust.

> product detail <

Specification	Detailed introduction
Profile	W-beam,Thrie-beam
Materials	Steel Grade Q235( S235JR/ASTM A283M) Steel Grade Q345 (S355JR/ ASTM A529M 1994)
The thickness of the steel	2.55, 2.67, 2.75, 3, 4mm, according to consumers' request
Normal size	length: 2800/ 3200/ 3300/ 3800/ 4128/ 4130/ 4300/ 4320 mm wave: 306/ 310/ 312/ 350/ 506mm wave height: 75/ 80/ 82/ 83/ 85mm Available in different size
Surface treatment	Hot Dipped Galvanized or Powder Coated.
The thickness of galvanized	550G/M2 (80µ), 610G/M2 (85µ), 1100 G/M2 (160µ), 1200 G/M2 (170µ), according to consumers' request
Technique	Cold Rolled
Features	High intensity, Great corrosion resistant, Strong plasticity, Oxidation resistance, Good impact resistance, Low cost, Long lifehigher security, Environmental protection, etc.
Relevant parts for guard rails	Posts : C post, U post, Sigma Post, Square Post, Spacer : Hex Spacer, C spacer, U spacer, and Special Spacer Bolts and Nuts and washers, Reflectors and Terminal Ends
Certification	ISO9001:2000, ISO14000, SGS, CE
Standards	JT/T281-2007,AASHTO M180,EU,USA,AS/NZS,etc.

Accessories:

Features:

W beam standard guardrails have good shock-absorbing functions:
The joint pillar bends when a vehicle crashes, absorbing the impact of the shock, protecting the passengers and reducing overall car damage.
Excellent durability
Molten Zinc plating layer make the beams corrosion-resistant, rust free and maintains the semi-permanent look.
Easy maintenance
In most cases, car crashes do not damage the beam product. It is easy to replace parts.

Advantages:

Easy installation: just attach the beam directly to the post, no need of blocks.
Prevent the mobile equipment from skidding off the road by redirecting it
Minimum the damage of errant vehicles
High quality material and anti-rust surface for longer service life
Corrosion resistant
Can be repaired quickly after accident

> usage <

To provide guard railing protection for motor vehicles against dangerous road areas such as steep slopes, high embankments, obscure curves/bends and sharp corners.
To act as a directional guard railing for drivers to be aware of the correct driving direction.
To act as a median barrier to avoid head-on collision.

> packing <

> company <

Anping County YUANYU Wire Mesh Co,. Ltd. is a professional manufacturer of wire mesh and wire mesh machines. Started since Aug. 1985, we have now over 200 working staff and an occupation area of more than 36000 square meters. A sincere commitment to contact and service helped us to expand quickly in the past years to become a big factory with 26 sets stainless steel wire drawing machines, 15 sets of iron wire drawing machines, 30 sets wire mesh weaving machines and 4 production lines of wire galvanized.

We enjoy state –of – the –art machines for wire drawing , galvanizing, wire mesh weaving and pvc coating to produce mainly Gabion box, Aluminum window screen, Stainless steel wire, Black iron wire, Galvanized iron wire, PVC coated iron wire, Stainless steel wire mesh , Welded wire mesh, Hexagonal wire netting, Brass wire mesh, Galvanized square wire mesh , Diamond wire mesh , Chain link mesh , Barbed iron wire and different wire mesh processed products.

We produce all range of wire mesh products under strict quality control management and passed IS9001:2000 international quality system in the year 2000. While supplying over 30 countries such as Asia, Australia, Europe and the USA
