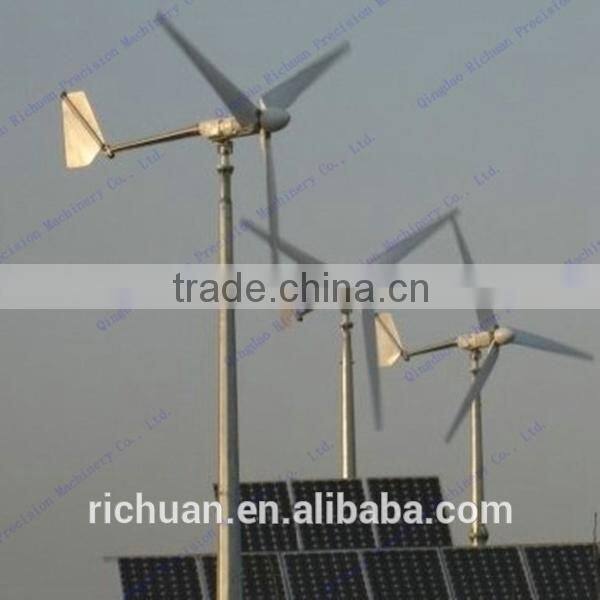

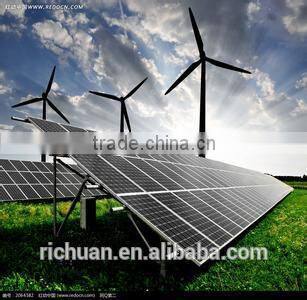

3KW Wind Solar Hybrid System for Home

Generator

Type of generator:           permanent magnet 3-phase

Stator:                                  silicon settle sheet

Magnet steel:                                  NdFeB

Magnet material:                            38SH

Rated rotated speed:                    320r/min

Hybird System Rated power:        3000W

Hybird System  Max power:          3500W

Output voltage:                               96V/AC local voltage & frequency

Blades

Material of blades: high efficiency FRP material, ultraviolet prevention rosin, plus unidirectional high strength glass fiber, modernization craft vacuum cast technique synthesis.

number of blade:                             3pcs

Rotor diameter:                               4m

Blads size:                                       1.8m

Start-up wind speed:                      3m/s

Rated wind speed:                          9m/s

Work wind speed:                            3-25m/s

Tower

Tower type:                                       guy cable tower / free stand tower

Height of pole:                                  8m/10m (26.2 feet/32.8 feet)

Material:                                            Q235 steel

Surface treatment:                           painting against decaying

Other Parameters

Weight of top section:                      95kg

Suggested battery type for reference:       12V150AH 8pcs

Service life:                                                  >20years

Can supply power for:  Refrigerator, washer, water pump, tv, lighting, electric fan, charger, air condition

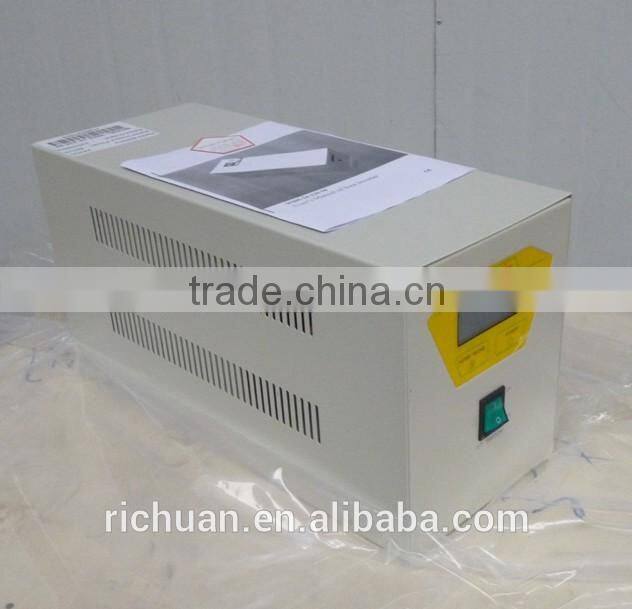

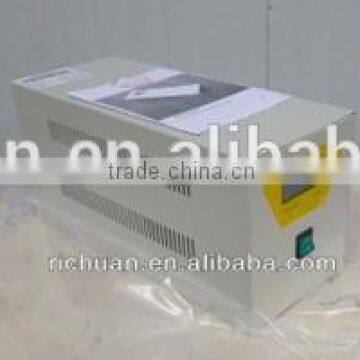

Pure sine wave inverter

Rated Battery Voltage: 96V

Rated Output: 2KW

Output Wave Form: Pure Sine Wave

Display Mode: LCD

Rated Output Voltage: 220 V_AC (adjustable)

Output Frequency: 50 Hz±0.05Hz (adjustable)

Inverter Efficiency: More than 90%

Protection Function: Battery over voltage protection, Battery under voltage protection, Battery reverse-connection protection, Output over load protection, Output short circuit protection, Over temperature protection.

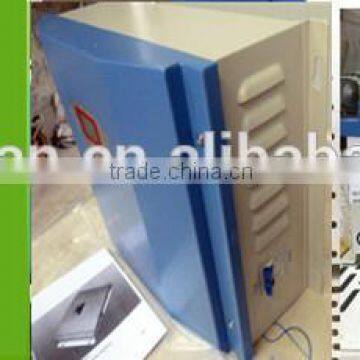

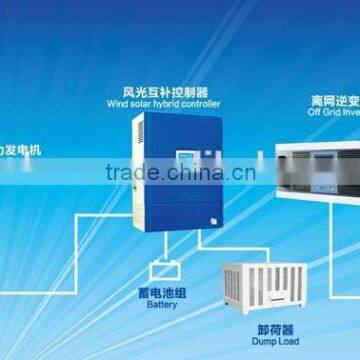

Micro-computer intelligence controller

Rated Battery Voltage: 96V

Rated Wind Turbine Maximum Power: 3KW

Rated PV Power : 900W  (Max.PV Power:2000W)

Control Mode: PWM

Display Mode: LCD

Protection Type: Solar cells reverse charging, solar cells anti-reverse, battery over charge, battery over-discharge, battery anti-reverse, lightning protecting, wind turbine current limitting, wind turbine automatic brake and manual brake.
