Horizontal Axis 60kw Wind Turbine/wind Power Generator Home Standby Inverter Wind Generator

Product detail

 Packaging & Delivery

Specifications

1.CE
2.Automatic braking system
3.Low noise lever
4.Remote control
5.Low rated torgue,low request to air

1.Product parameters and advantages:

1. Low starting torque

2. Low start-up wind speed

2. Low speed permanent magnet generator.

3. No vibration & low noise.

4. All of our products confirm to CE.

5. Reliable wind power system by multifunction controller.

6. PWM constant voltage recharge function provides stable output.

7. On-grid or Off-grid wind power system optional.

8. 1-year warranty for generator and 18-20 years service life.

9. Electronic brake and manual brake, optional.

10. High efficiency and Low mechanical resistance energy loss.

11. Special sealed wind turbines, moisture, sand and water proof.

2.Control System:

Controller

Rated output voltage of generator:AC690v

Rated output current:70A

way of protection:Manual,brake,unload.

Operating environment temperature:-10℃~40℃

Relative humidity:30%~90%,>90%(No condensation)

Operating environment height:<2000m

Protective level:IP44

Way of cooling:enforcement

Noise:30-40dB

Inverter

Output way of power:three phase/four lines

Rated power:100KW

Normal voltage:380v±3%

Normal frequency:50Hz±0.05

Waveform:pure sine wave

Distortion of total sinusoidal:linear load 5%,nonlinear load <8%

Dynamic load and voltage transient:<5%

Overload capacity:overload125% 2min,overload 150% 1min

Working temperature of environment:-10℃~40℃

Relative humidity:<90%

Relative humidity:<2000m(100m increase 1% decreases)

Way of cooling:enforcement air-cooled(temperature controlled)

Noise :50-65dB

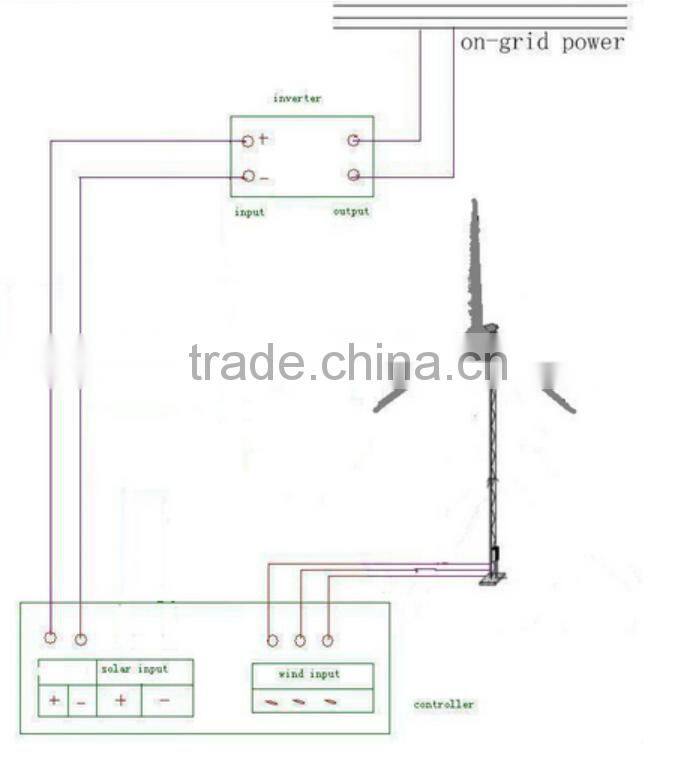

  3.Connection Mode

4.Notes

a. Tower type and tower height can be changed according to customer’s requirement.

 b. Working voltage can be adjusted according to customer’s requirement.

 c. For the details, please feel free to contact us.

5.Company Profile

Qingdao Richuan Precesion Macinery Co., Ltd., located in a nice coastal city called Jiaonan is a hi-tech company specialized in research & development, production, sales and service of medium and small wind turbines and devoted to the development and utilization of natural environmental protection energy such as wind energy, solar energy, etc.

The main products of our company include off-grid and grid-connected wind turbines, wind turbine blades and wind solar lighting system. They are widely used in agricultural and pastoral areas, mountainous areas, islands, frontier defence sentries and observatories with no electricity or insufficient electricity and rich wind resources.

 6.Main Market

High quality and competitive price guarantee us a huge market all over the world, such as in Eastern Asia, Europe, North America, South America and Middle East.

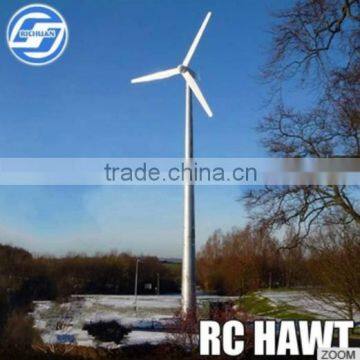

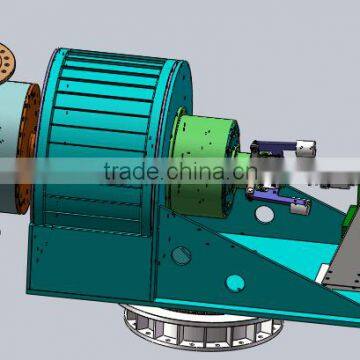

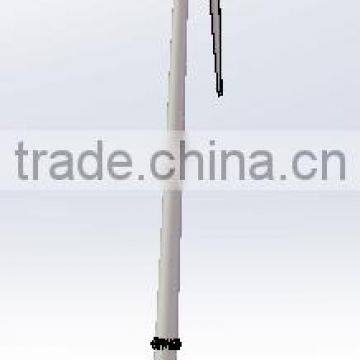

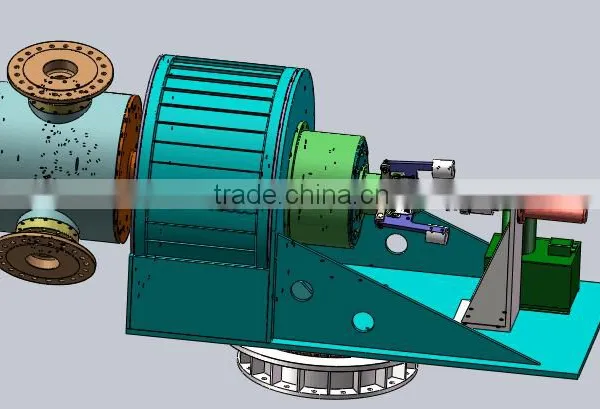

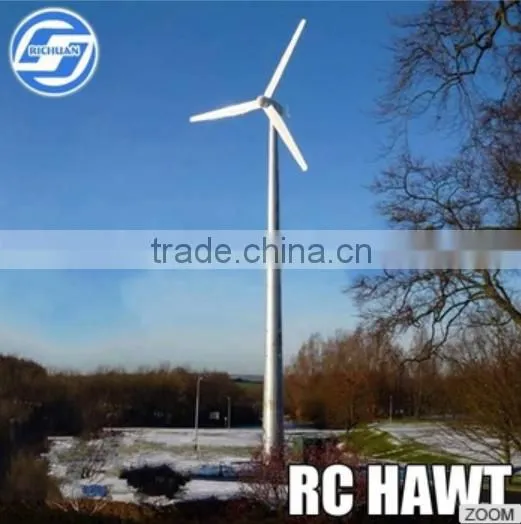

7.Pictures for Your Reference:
