Hanf 30A 12v 24v 48v multi-purpose Solar Charge Controller

Name: Hanf 30A 12v 24v 48v multi-purpose Solar Charge Controller
Brand: hanf
Availability: InStock

FOB Price

USD $19 - $22 / Piece

1 Piece(Min.Order)

Supply Ability 30000 Piece / Pieces per Month
Port Shnaghai Shenzhen Ningbo Xiamen Tianjing Wuhan
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Hubei, China	Brand Name:	hanf	Model Number:	TK30DU
Application:	Solar System Controller	Rated Voltage:	Other, 12v 24v 48v	Maximum Current:	30A

Product Description

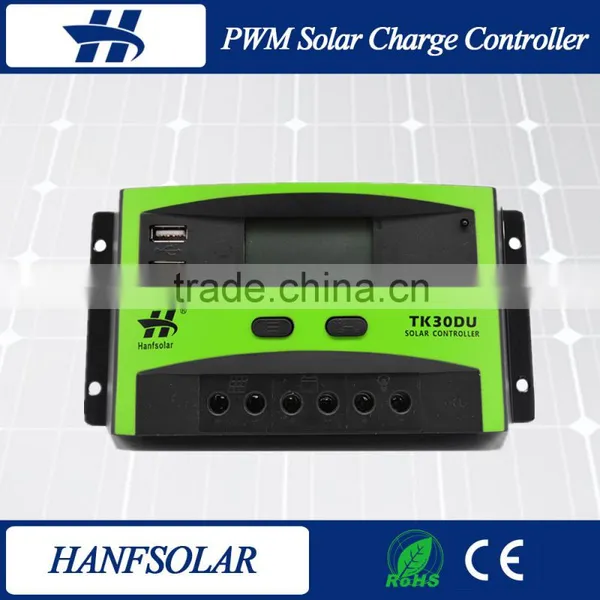

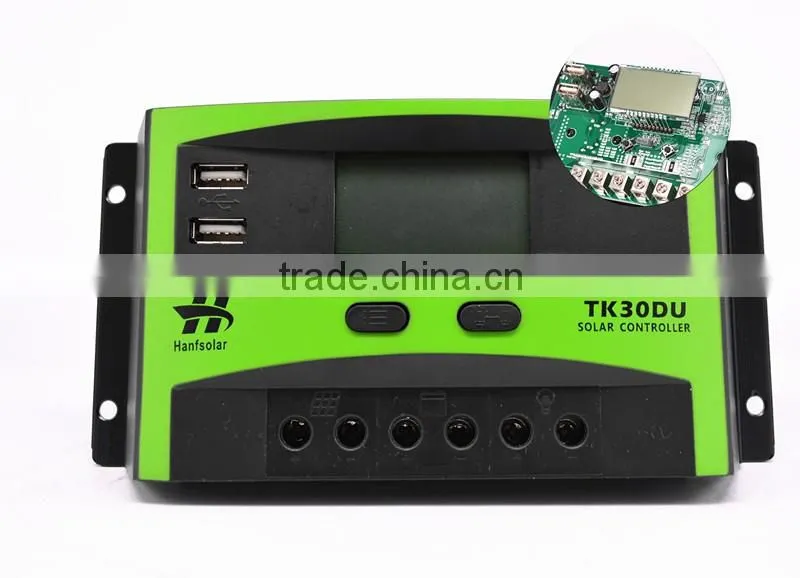

Hanf 30A 12v 24v 48v multi-purpose Solar Charge Controller

Product Description

TK series is a new series of intelligent multi-purpose solar charge controller

It is equipped with explicit LED for you choice.While meeting functional needs,it also offers user-friendly.installation and operation.All in all,it is a popular high-efficient product.

1.Connection diagram

duct details

Package Information:

Product size: 188 mm * 95 mm * 47.5 mm
1pc/color box,30pcs/ctn
Ctn size:545mm*425mm*175mm
CBM/ctn:0.046
G.W:14.5kg

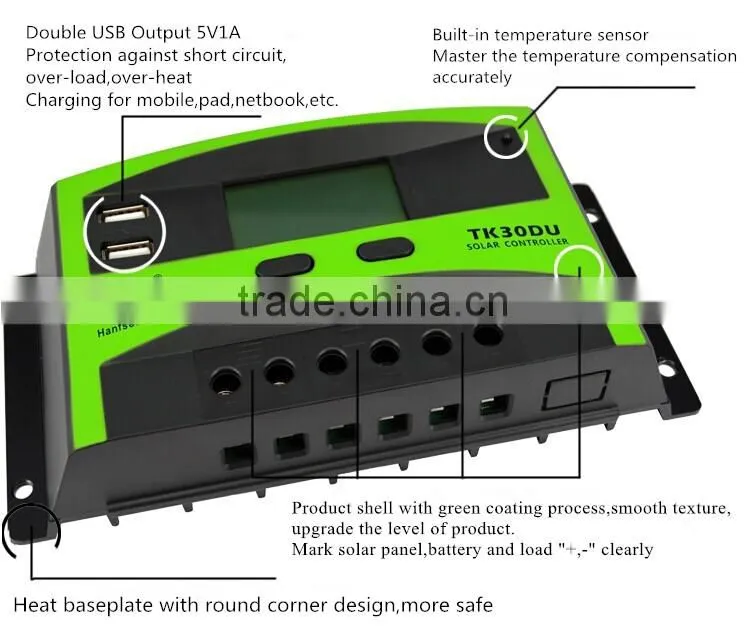

3.Features:

(1)Vivid LCD graphic symbols

(2)Simple button operation

(3)Automatic identification of system voltage level

(4)Intelligent PWM charging mode

(5)Adjustablecharge-discharge protection

(6)Automatic temperature compensation

(7)Settable operation mode of load

(8)Battery reverse-discharge protection

(9)Battery low voltage disconnection(LVD)

(10)Battery reverse connection protection

(11)Overcurrent protection

(12)USB output

4.Technical data :

Model	30DU	3048D
Input
PV voltage	≤50V	≤100V
Rated Current	30A	30A
Output
System Voltage	12V/24V Auto	48V
HVD	16.00V×1/×2/×3/×4
Rated discharging current	30A	30A
No-load loss	≤13mA	≤25mA
Charge loop voltage drop	≤0.21V	≤0.25V
Discharge loop voltage drop	≤ 0.12V	≤0.12V
Charging mode	PWM 4-stage(bulk, absorption,float, equalized)
Voltage of float charging	13.8(13V~15V)×1/×2/×3/×4
Voltage of absorption charging	14.4V(13V~15V) ×1/×2/×3/×4
Duration of absorption charging	2hs
Voltage of equalized charging *	14.6V(13V~15.5V) ×1/×2/×3/×4
Duration of equalized charging	2hs
LVD	10.7V(10V~14V) ×1/×2/×3/×4
LVR	12.6V(10V~14V) ×1/×2/×3/×4
Load working mode	Regular control mode
	Light control with switch-off point at night and switch-on point before dawn
	Light control mode
Light control voltage	5V(1V~10V) ×1/×2/×3/×4
Battery type	GEL, SLD, FLD and USr(default)
USB	5V 1A	None
Other
Man-machine interface	LCD, 2 buttons
Wiring	PCB terminal, ≤16mm²	PCB terminal, ≤16mm²
Working temperature	-20 ~ +55 °C
Storage temperature	-30 ~ +80 °C
Working humidity	10% ~ 90%, no condensation
Dimension	188 x 95 x 46.5mm
Net Weight	360g	360g
IP Code	IP30
Optional function	Remote communication,TTL, standard ModBus protocol

Main products

Product application

Company Information

About Us

FAQ

1 Q:Do you have your own factory? Can we visit?
1 A:Absolutely.You are always welcomed to visit our factory.

2 Q:How do you control the quality of the products?
2 A:Our factory has obtained ISO9001 certificate. Every process of the production is strictly controlled. And all the products will be inspected by QC before shipment.

3 Q:What certificate do you have?
3 A:We have CE,ROHS.

4 Q:What kind of payment do you accept?
4 A:We accept T/T, Paypal, Escrow, Western Union for samples’ order.

5 Q:How long the delivery time?
5 A:2-7 days for ex-stock orders.15-30 days for production.

6 Q:What kind of controller you mainly manufacturer?
6 A:We mainly produce PWM solar charge controller, MPPT solar charge controller.

7 Q:Can we print our company logo on product and package?
7 A:Yes,but quantity of order is required. And we also need you to offer the Trademark authorization to us.

8 Q:How long is the warranty period?
8 A:1 year warranty. If you order our brand products, there will be 2 years warranty.
