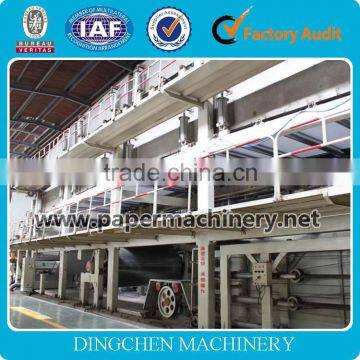

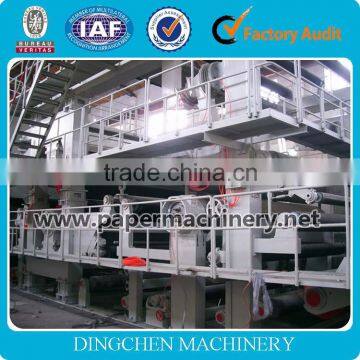

2100mm type multi-cylinder molds and multi-dryer Duplex Board Grey Back Making Machine

wooden board/wooden case/straw rope

2100mm type 20tons/day liner/duplex paper production line

Technical parameter:
1.Raw material: waste paper;finished wood pulp board
2.Output paper: test liner paper;corrugated medium paper
3.Net paper width:2200mm
4.Mesh width: 2450mm
5.Output paper weight:80-250g/m2
6.Capacity: 20T/D
7.Working speed:30-80 m/min
8.Designing speed:120m/min
9.Rail gauge: 2900mm
10.Drive way: Alternating current frequency converter speed control, sectional drive.

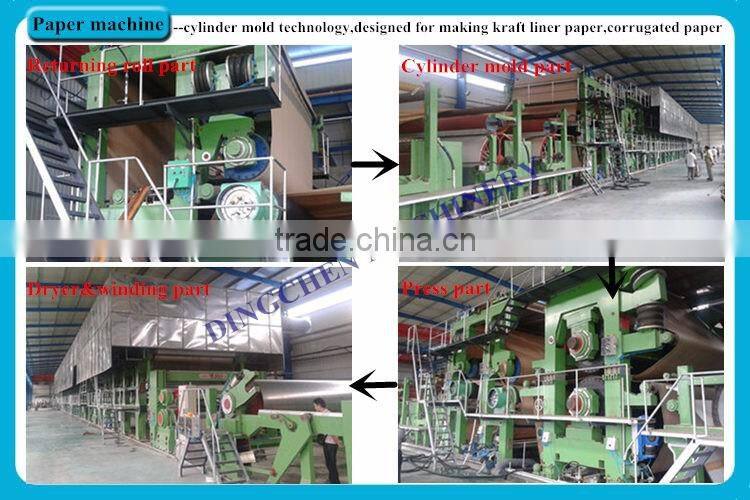

Main structure for paper making machine

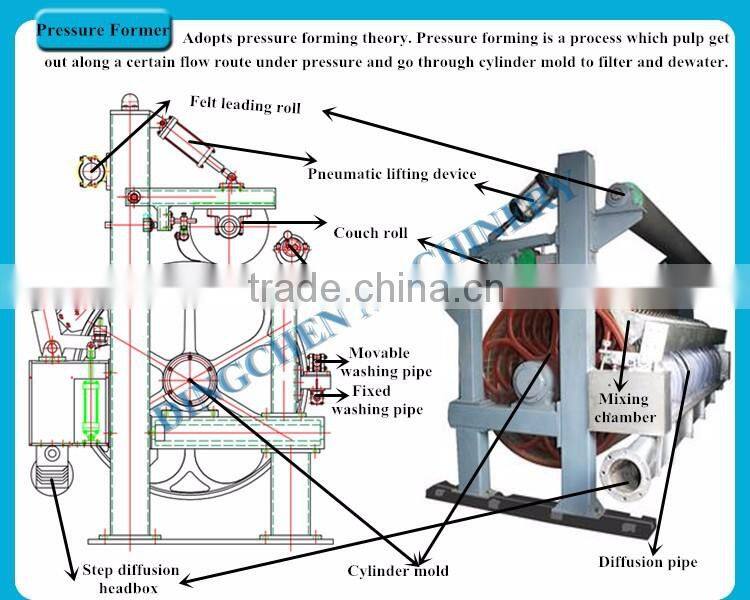

1.Cylinder mold part: 3 sets of stainless-steel plate cylinder mold  ; 3 sets of equipped with couch roll,coated by rubber,equipped with 1 set of reverse roll.
2.Press part : (There are two press sections. Each section include one set top natural marble stone roll and one set bottom rubber roll.)Top roll: natural marble stone rolls 2 sets; Bottom roll :rubber roll 2sets,coated by rubber.Equipped with pneumatic pressure device.
3.Dryer part:alloy dryer can 10 sets; equipped with scraper blade 10 sets,equipped with dry felt device,semi-closed dryer cans exhaust hood 1 group.
4.Calendering part: calendering roll 2 sets,.
5.Winding part: 2100mm type horizontal pneumatic winding machine 1 set.
6.Rewinding part: 2100mm type frame-type rewinding machine 1 set.

Main equipment list for paper production line
