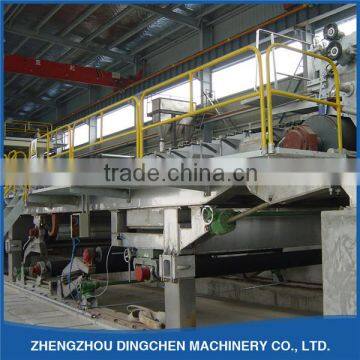

Semi Automatic China Supplier Copy Paper Printing Paper Making Machine
Technical parameter
1. Raw material: waste paper;wood pulp board
2. Output paper: office paper, writing and printing paper
3. Output paper weight: 60-80g/m2
4. Net paper width: 2400mm
5. Wire width: 2950mm
6. Capacity: 30 tons/day
7. Rail gauge: 3400mm
8.Drive way: A/C converter speed control, section drive.
The structure and specifications of main equipment:
1. Wire part
Closed type head box,Forming table for wire: 13 meters length, the forming table clad by
stainless steel board,Frame made of Q235 steel, and clad by stainless steel board.
2.Vacuum de-watering part
Liquid ring vacuum pump, Forming plate, 5piece hydrofoil box, Vacuum suction box,
Φ700 vacuum couch roll
3.Press part
2 groups of press part, each part includes one set of natural and one set of rubber roll
4.Dryer part
In this part, includes 18 sets of dryer cylinders
5.Sizing part
Top roll: imitation stone roll,Bottom roll: rubber roll. with pneumatic pressure device.
Double drive point.
6.Calender part
2400mm 3 rolls calendering machine
7.Winding & rewinding part
2400mm horizontal pneumatic reel;2400mm rewinding machine
8.Driving and controlling part
Frequency conversion controlling Cabinet
Main structure with spec for stock preparation
No. | Equipment | Function |
1 | 8m conveyor | to transport the raw materials into the hydra-pulper |
2 | 5m3 high consistency hydra-pulper | to stir the raw materials at high speed and make them into pulp for the first step |
3 | high consistency cleaner | to remove the heavy big impurities in the pulp |
4 | High-speed pulp washer | to wash out the waste water from the pulp, make the pulp clean |
5 | 0.6m2 Pressure screen | to screen out the impurities in the pulp by high pressure |
6 | 1.8m2 Vibrating screen | to screen out the impurities through vibrating |
7 | 606 sand remover | to remove the sands and tiny impurities in the water and pulp |
8 | Φ450mm double-disc pulp refiner | to grind the coarse pulp into fine pulp |
9 | Φ700mm propeller | to stir and resolve the pulp in pulp pool |
10 | 1.2m2 Pressure screen | to defibering pulp |
11 | pulp pump | to lift the processed pulp into the necessary section |
12 | water pump | to lift the water into the necessary section |
13 | Electrical operating cabinet | to control the on/off of the whole production line |
We Zhengzhou Dingchen machinery company limited has a history more than 30 years in producing pulp and paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines,and so on.Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our machines have been exported to many countries such as Uzbekistan,Pakistan,Syria,Jordan, Armenia,Yemen,Egypt,Sudan,Angola,Uganda,Nigeria,Tanzania,Gana,Brazil,Paraguay,Bangladesh, Fiji,Myanmar and so on. We win high praise from clients at home and abroad for our sophisticated craft, high quality and excellent function.
- Technical Consultation
- Assess Feasibility On-site
- Detailed Design of Machine and Factory or Workshop
- High Durability Equipment and Low Maintenance Cost
- Continuous Process (Less Labour Required)
- Good in-sale service and after-sale service
- Supplying Spare Part for Long Time
- Installing and Testing the Whole Production Line
- Training Engineers and Workers(operate and maintain machine)
- Power Consumption Low
1.What information do you need,if i need to get a quotation from you? Answer:Output paper type;Capacity(tons/24hours);Output paper weight(gram/m2);Raw material.
2.How long is guarantee period for paper making machine?
Answer:12 months after formal operational
3.What is the delivery time if we make a order from you?
Answer:Usually,the delivery time for smaller machines is 30-45 days after receiving deposit,
but for bigger machines,it will be longer to make sure the equipment quality.
4.What is your payment terms?
Answer:
(1). T/T(telegraphic transfer)30% as deposit,and 70%balance paid before shipment.
(2). 30%T/T + 70%L/C at sight. (3). 100%L/C at sight.
5.How is the quality of your equipment?
Answer:
(1).We have been specializing in pulp and paper making machines for 40 years.We have enough practice/experience.To keep and develop our good reputation,we couldn't allow the unqualified machine,as well as you.
(2).We have a technician team of engineers and experts.They mainly research the advanced paper making technology,to make sure our machines’ design are newest.
(3). The machines will be pre-installed at workshop before delivery.
(4). All of our machines has audited the certificate of ISO 9001:2008 and SGS.
6.Why your price is higher than other similar supplier?
Answer:Different quality,different price.Our price is matched with our high quality.Compared with other suppliers based on the same quality,our price is lower.But anyway,to show our sincerity,we will give you some discount.
7.Can we visit your factory and the running machine has installed in China?
Answer:Welcome to visit our factory.You can check our production ability,processing ability,check our facilities and running paper production line.What is more,you can discuss with engineers directly,and learn the machines well.
