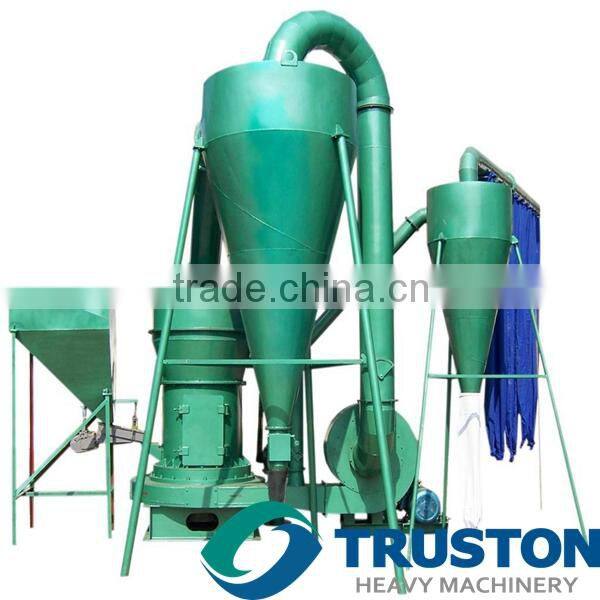

StonTRUSTON Raymond Mill

Specifications

Packaging & Delivery

Specifications

raymond mill
1.Output size 125~325 mesh
2.Equiped with classifier, dust-collector, iron separator, packing scale
3.ISO, CE

   TRUSTON Raymond Mill, Stone Grinding Mill Equipment from China Manufacturer --TRUSTON CRUSHER

1. Raymond Mill Technical Parameters

  Note:We could design the difference solution of mobile crusher as customer's requirements.

2.List Of Power Used On Attachments Of Pulverizers

3.Standard Capacity

The Raymond grinding mill was ever popular in mining, building materials, chemical engineering and metallurgy industries for size reduction, dispersion, or specialized needs, powder generation and processing for industrial process.

To improve and enhance the performances of pendulum pulverizer, raise the fineness of finished products,reduce the ferrous content mixed during pulverizing,lower the labor strength and promote environmental protection, we are capacitated to supply the following products to supplement the pendulum pulverizer: Superfine separator, bag dust filter, iron removal device, quantitative, bagging weigher and bag-sewing conveyor. Newly turned outs as well are pendulum pulverizer with finished product fineness up to 600 mesh for which the separator has been improved, and the powerful pendulum pulverizer with annual output up to 6-25 tons per hour since the adoption of the pc control.

3. Raymond Mill are Appropriate for

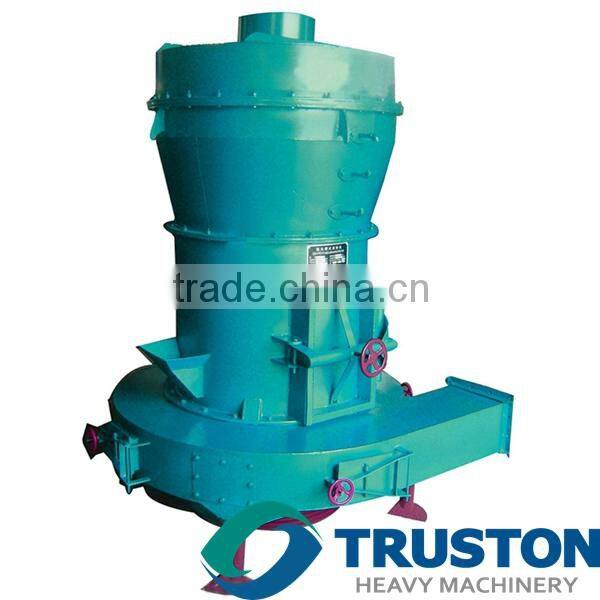

4.Raymond Mill Introduction

Raymond mill is suitable for grinding non-flammable and non-explosive materials with Moh's hardness not more than 7 grade and moisture less than 6%,such as non-plastic ores,minerals,metallic oxide,chemical composition,etc.In order to improve the performance of Raymond mill,enhance the fineness of final product, reduce the iron content during the process of grinding, lower labor intensity,and improve environmental conditions,the following equipments are optional to work together with Raymond mill:classifier,dust collector,iron separator,packing scale,and bag sewing conveyor.After improving the performance of classifier,Raymond mill can grind materials into 600mesh,and capacity can be increased to be 6-25t/h by PC control.

5. Main Advantages of Raymond Mill

1) The whole plant is a vertical structure of strong systematic characteristic, so it occupies small area. It is an independent production system from crushing of raw material to grinding and packing.

2) Compared with other milling plants, its passing ratio achieves 99%, which is what other mills cannot reach.

3) Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.

4) Main parts of the whole plant are made from cast and steel of high quality. The techniques are so subtly that they ensure the durability of whole plant.

5) The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.
