Specifications
2013 hot selling cement pipe making machine with low pricencrete pipe machine
2.easy operation
3,high quality
2013 hot selling cement pipe making machine with low price
Introduction of the product :
1.this machine can produce the pipe diameter from 150-1000mm,pipe length maxmium
is 1000mm.
2.the highest efficiency of the pipe making machine.the average is 15-22pipes/hour
3.don't need steel cage.
4.can produce flat mouth,socket mouth and groove mouth.
5.This machine can adopt low-priced stone bits., slag ,fly ash, and sand as the material to
produce all kinds of pipe with different specifications
6.Advantage:low cost of material,no serosity,low noise.only need 2 moulds for production
7.Application:driven well , the low pressure water distribution irrigation,pump station, urban
and rural water supply and drainage system
8.perfect pre-sales,mid-sales and after sales service,we have professional engineers to
help you setup the machine.
Main Technical Parameter:
Name | FC-73 Forced pipe making machine | ||||
Feature
| The machine can produce various types of cement pipe as Well tube and sewage pipe that can be a screw extrusion forming, whose inside diameter are 600mm, 500mm, 400mm, 300mm or 200mm. What’s more,the machine can immediately remove the mould ,recycling and canoperate singly . Besides,it can also match sub-pallet or the parent pallet to be as an interface between sub-pallet and the parent pallet. | ||||
Type | FC-73 | ||||
Inside diameter(mm) | 1000 | 200 | |||
The maximum diameter of the pipe(mm) | 1000 | ||||
Main motor power(kw) | 15 | ||||
The gross weight of machine(*kg) | 1500 | ||||

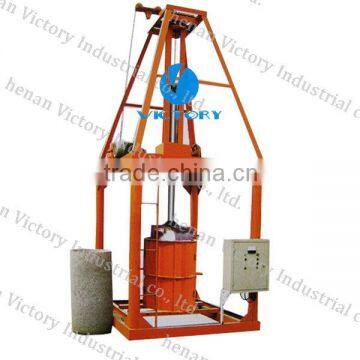

The Product Display:
If this product meet your need,please feel free to contract us .
We will give you the best price, high quality and best service .
Warmly welcome to inquiry, choose and buy!
