Home > Products > New Products > light weight concrete paver slab making machine
light weight concrete paver slab making machine
- 500 Set / Sets per Month
- Qingdao or as you request
- T/T L/C D/P D/A Credit Card PayPal
-
Precast concrete hollow core slab production line
-
hollow core slab machine for prefab homes ,concrete floor plate machine
-
JS500 batching plant of Concrete Mixer Machine With Lift
-
High strength concrete lintel machine
-
High efficient Concrete Column Molding Machine
-
Concrete lintel columns machine for sale
Product Details
| Condition: | New | Type: | Other, Hollow Block Making Machine, concrete paver slab making machine | Brick Raw Material: | Concrete |
| Processing: | Brick Molding Machine | Method: | Vacuum Extruder | Automatic: | No |
| Capacity: | 500 pcs/month | Place of Origin: | Henan, China | Brand Name: | victory |
| Model Number: | TWT | Voltage: | 380V | Power: | 4-22 KW |
| Dimension(L*W*H): | 2560x950x980 | Certification: | ISO9001 | Warranty: | 12 monthes |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Concrete paver slab making machine
The products: The hollow concrete slabs can be used as load-bearing floor in the buildings or ceilings for houses.The slab has advantages of dense texture,accurate size and shape, tidy and smooth appearing.
The machine: JWT precast hollow concrete slab machine is a new precast production machinery and it is suitable for molding a variety of pre-stressed hollow concrete slabs in the field of industrial and civil construction. This machine has advanced technology, with additional lift, steering,aligning structure, it is easy to operate.
Machine advantage:
Easy to operate, sample machine structure, full automatic, optional length. productivity: 1.1-1.7m/min.
specification
Type | Main motor (kw) | Speed (m/min) | Thickness (mm) | Width (mm) | No. hole x hole diameter (nxD) | Vibrator (kw) | Overall dimensions(mm) | GW (T) |
JWT12x50 | 4 | 1.1-1.7 | 120 | 500 | 4x80 | 1.5 | 2070x660x750 | 1.15 |
JWT12x60 | 4 | 1.1-1.7 | 120 | 8.86 | 5x80 | 1.5 | 2070x760x750 | 1.3 |
JWT12x90 | 7.5 | 1.1-1.7 | 120 | 900 | 5x80 | 2.0 | 2190x1060x850 | 2.0 |
JWT12x120 | 11 | 1.1-1.7 | 120 | 1200 | 11x80 | 2.0 | 2190x1360x970 | 2.7 |
JWT15x60 | 5.5 | 1.1-1.7 | 150 | 600 | 4x102 | 2.0 | 2181x745x840 | 1.5 |
JWT15x90 | 7.5 | 1.1-1.7 | 150 | 900 | 6x102 | 2.0 | 2181x1045x875 | 2.0 |
JWT15x120 | 11 | 1.1-1.7 | 150 | 1200 | 8x102 | 2.0 | 2181x1345x875 | 2.0 |
JWT18x60 | 7.5 | 1.1-1.7 | 180 | 600 | 3x135 | 2.0 | 2290x776x900 | 2.0 |
JWT18x90 | 11 | 1.1-1.7 | 180 | 900 | 5x135 | 2.0 | 2290x1096x920 | 2.7 |
JWT18x120 | 11 | 1.1-1.7 | 180 | 1200 | 7x135 | 2.0 | 2290x1370x920 | 2.7 |

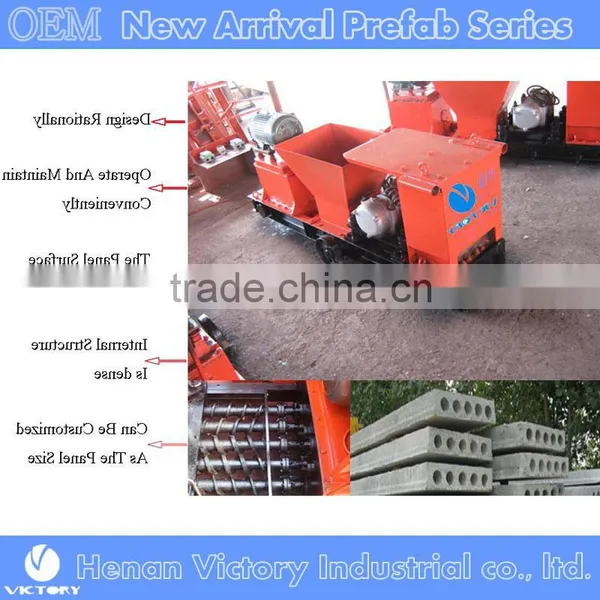

Precast hollow concrete slab machine picture

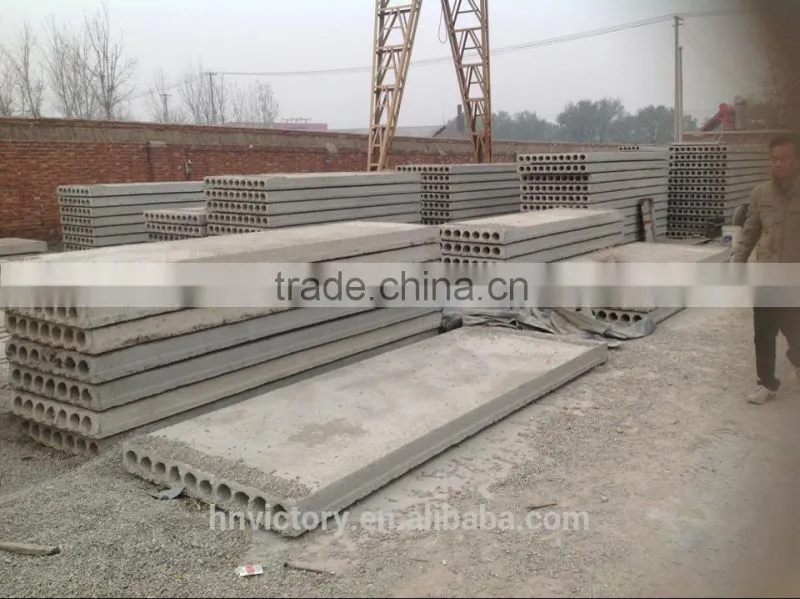

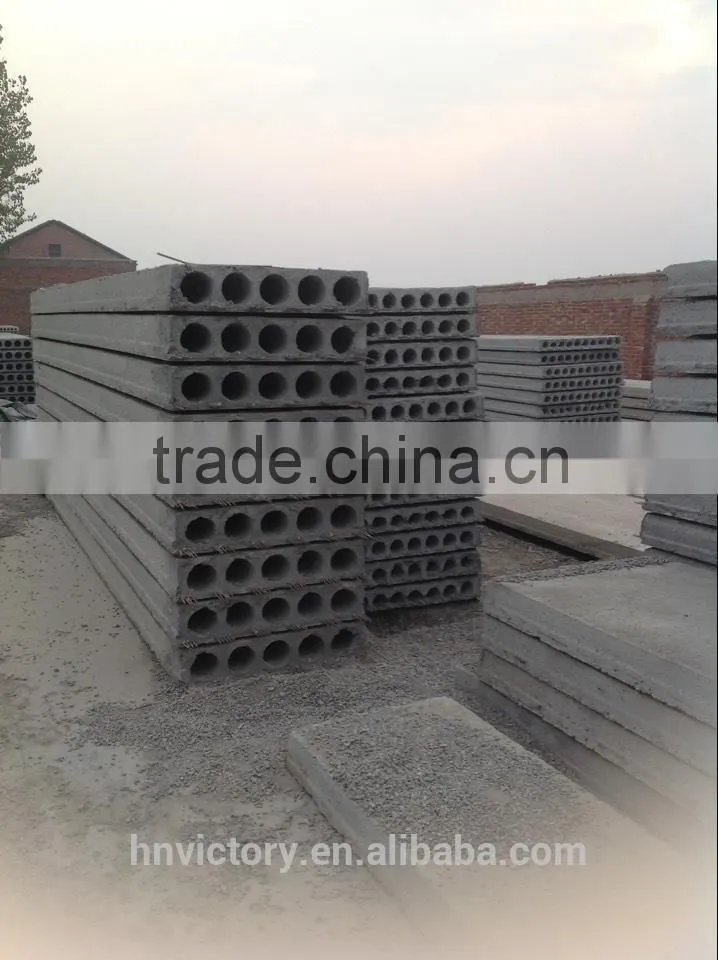

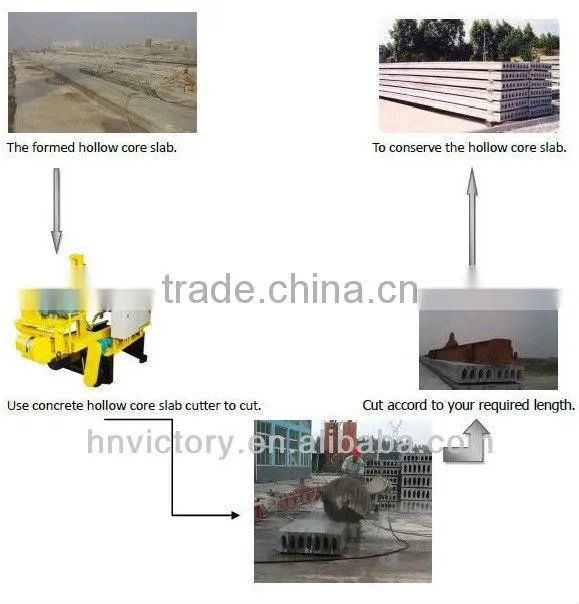

Well-cut hollow concrete slab making process and product picture

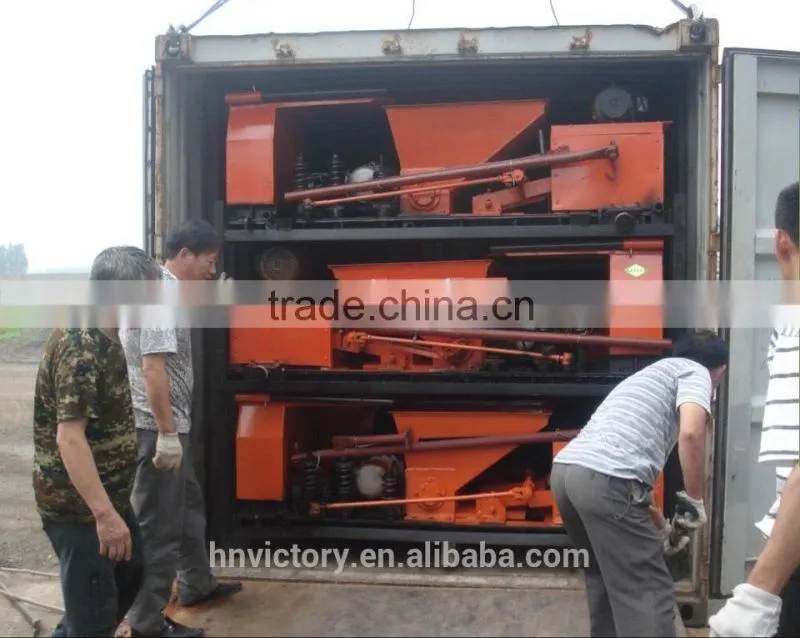

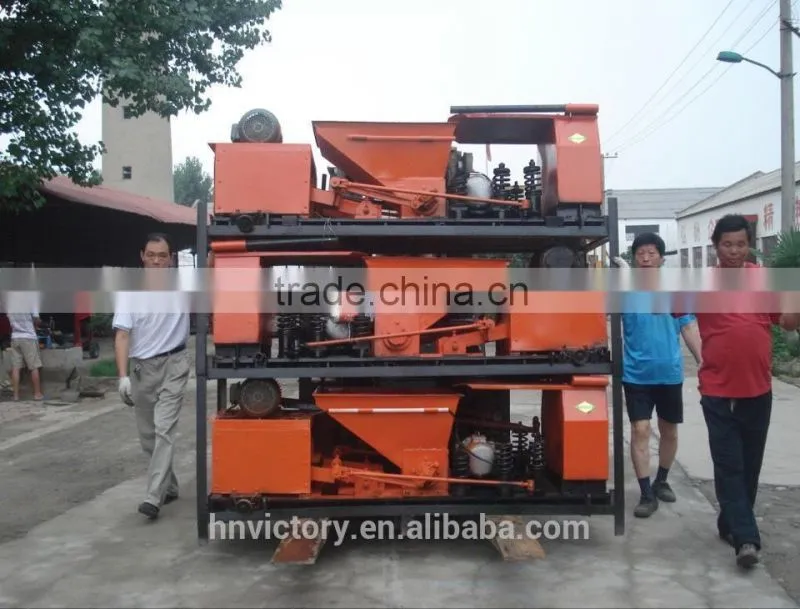

The shipping of our machine :
.
We can make free design machine according to your requirements! Any questions, free to talk to me! Have a nice day!
our service
1. We supply the technical supporting all the time.
2. We supply one year warranty for whole machine.
3. We supply free quick wear parts.
4. We supply low charge continue maintenance when warranty is expired.
5. We supply free training to end-users.
Henan victory is a company integrated by a team of professions with a wide and deep experience in the precast concrete machinery industry. The company was founded in 1995 and since then, it has been a leading manufacturer of single equipment and complete plants for the precast concrete industry. Especially, we are the earliest designer and manufacturer of slipformer precast wall panel extruder in Henan Province, even in all over China.
In order to develop overseas market, we set up foreign trading department in Zhengzhou City, provincial capital OF Henan in 2011. Since then, we have established business relations with over 30 countries. Currently, our precast concrete machinery has been used in many precast factories from South Asia, Middle East and African Countries.
What kind of machine dou you have?
Our main products: large span JWT concrete hollow core slab machine, light - weight wall panel machine, lintel machine, column machine, hollow core slab cutting machine, concrete feeding dumpe, high-strength steel wire tensioning machine, which amount to more than teh types and more than four hundred standards. We can provide the whole plan and technology supportingfor concrete precas component.
What is your payment term ?
You can transfer the payment via T/T. We will provide you the bank detail.
Generally, 30% prepaid and the rest 70% should be paid before shipping.
Where is your company situated?
Victory industrial is located in Zhengzhou city, Henan province China.
You can take plain to Zhengzhou airport, we will pick you you up .
