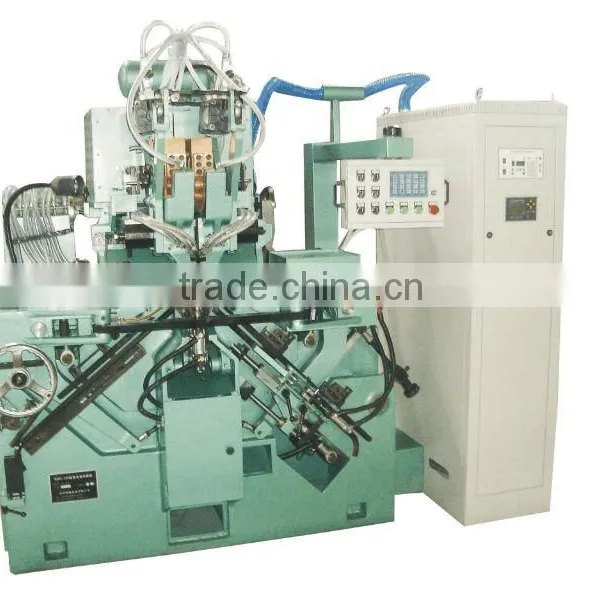

HJ-250 Automatic G80 Chain Welding Machine

Specifications

Design for making G80/G100 high quality lifting chain. Work fast, stable, reliable.

This welding machine is independently developed by our company by referring to related foreign advanced technologies. The lifting chain of mild alloy steel is welded by method of twiceresistance current flow, and total 19 steps including conveying, turning, welding, heading, and deburring of chain rings are done continuously via cam, electric control and pneumatic control devices. The machine features high automation degree, possible for manual operation, inching, semi-automatic and full automatic operation, stable and reliable actions, convenient maintenance and complete failure protection function. Using PC to control the electrical devices, the machine has ranked at world-level of the same kind in terms of performance indices. The machine is used in welding of hoist circular ring chains, it can also be used for welding of other kinds of circular ring chains such as antiskid chain, decoration chain, binding chain, marine anchor chain, mine chain, etc.

Main technical data

l         Model: HJ-250

l         Suitable wire diameter: 14-16mm

l         Chain pitch:35-65mm

l         Productivity: 22-35 rings/min

l         Rated capacity: 250KVA, 50Hz

l         Rotary encoder: 600 (round/minute)

l         Motor capacity: 3KW, 600-1200 mechanical stepless speed regulation with brake

l         Pneumatic pressure: ≥0.65MPa

l         Air consumption: 20L / cycle

l         Cooling water consumption: 30L/min

l         Machine dimension: 3100 x 1800 x 2600mm

l         Machine net weight: 6500KG.
