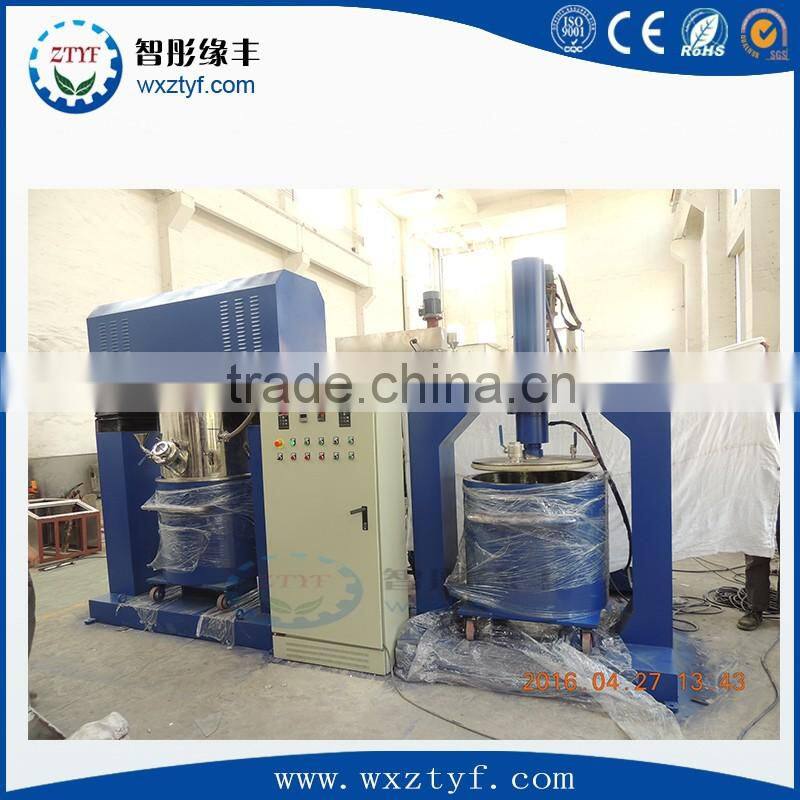

Dual Shaft High Speed Planetary Mixer High Viscosity Disperser

♦Specifications

Dual shaft high speed planetary mixer high viscosity disperser :

Professional chemical mixer emulsion paint,stone paint,putty paste,texture paint industrial mixers:

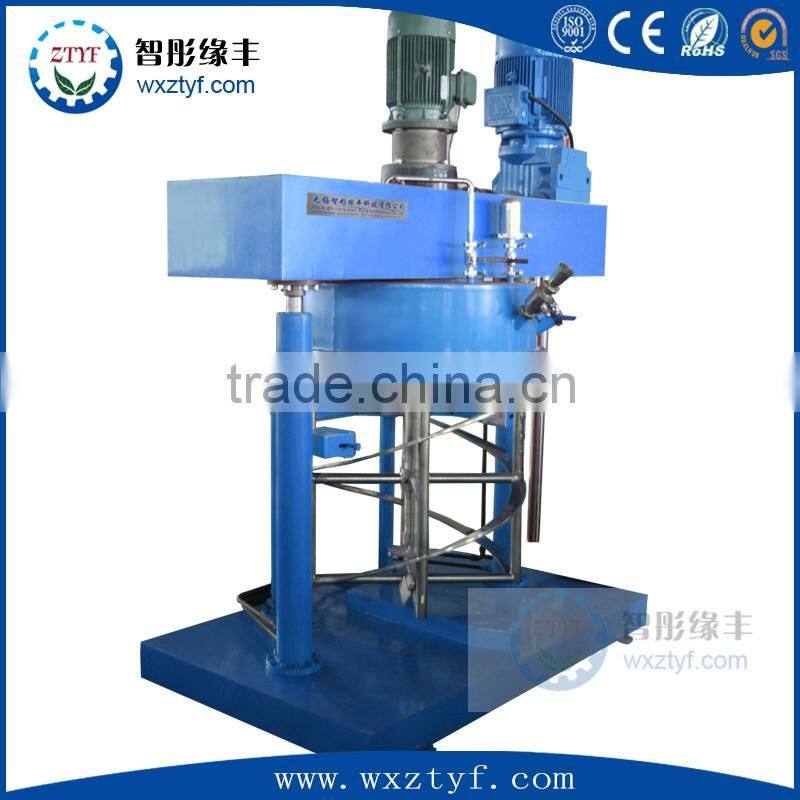

Dual Planetary Mixer:

Professional chemical mixer ,emulsion paint,stone paint,putty paste,texture paint industrial mixers is a new mixing machine with high performance, high efficiency, easy to clean and to maintain, which is innovated and improved based on the introduced oversea advanced technology. The Dual agitators of this equipment rotate and at the same time revolve around the axle, the agitators are divided by the viscosity and characteristics of the material,usually unclude paddle type, twist type, claw type,frame type etc.have good mixing,reacting,kneading,dissolving effect. The mixer is equipped with a separate set of scrap the bottom of the barrel and avoid dead corner to ensure the stability of the product. Dual planetary mixer adopts planetary gear wheel drive, there is a large output torque,suitable for high temperature, high solids, high viscosity, and other difficult working conditions; This equipment is closed design,can be used with a vacuum system to realize vacuum mixing, mixing bucket can be designed with a heating jacket, matching equipment for the high-viscosity material.

Material viscosity: ≤ 3,000,000 cps

Production Capacity: 5-2000L

Application Industry:

Suitable for dispersing and mixing material in industries such as coating, putty,         adhesive,energy,electronics& electrical appliances, pharmaceuticals, cosmetics, food etc,,,

Applicable materials : Various slurries with viscosity less than 3,000,000 cps, solid content under 90% such as battery paste, solder paste, ceramic paste, silicone inks, sealants, structure adhesives, soft cream, jam ect.

Product Advantages:

High mixing efficiency ,wide application

The dual planetary mixer has two set of agitators (can customize to be three set)

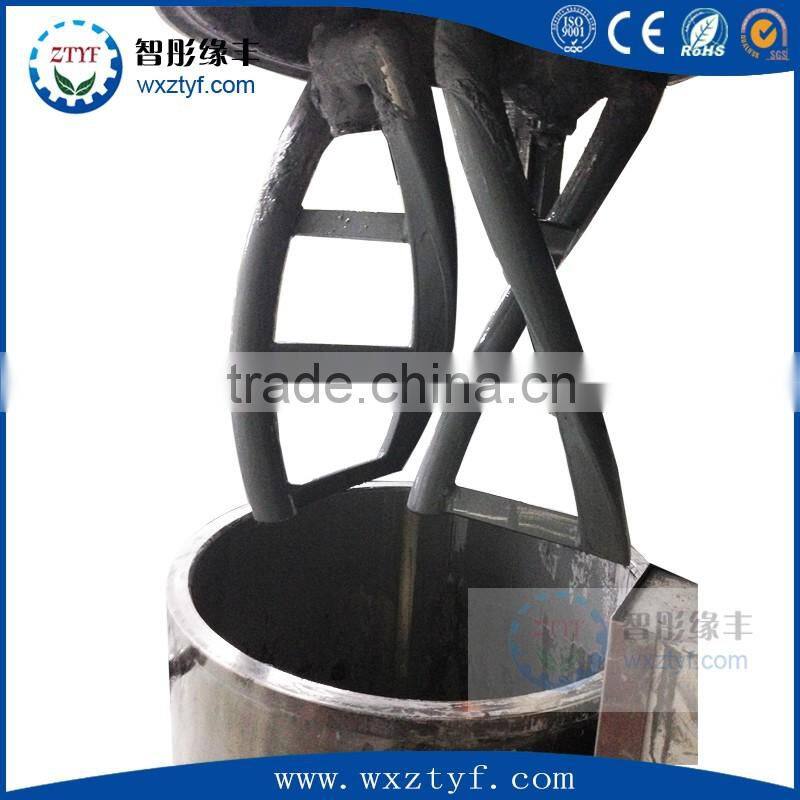

Revolving around the container axle and at the same time rotating at high speed, so that the material are mixed rapidly under the action of strong shearing and kneading force. (blade type, twist type,claw type, frame type etc) are in option based on material with different viscosity and different specific gravity.

Safe and convenient operation

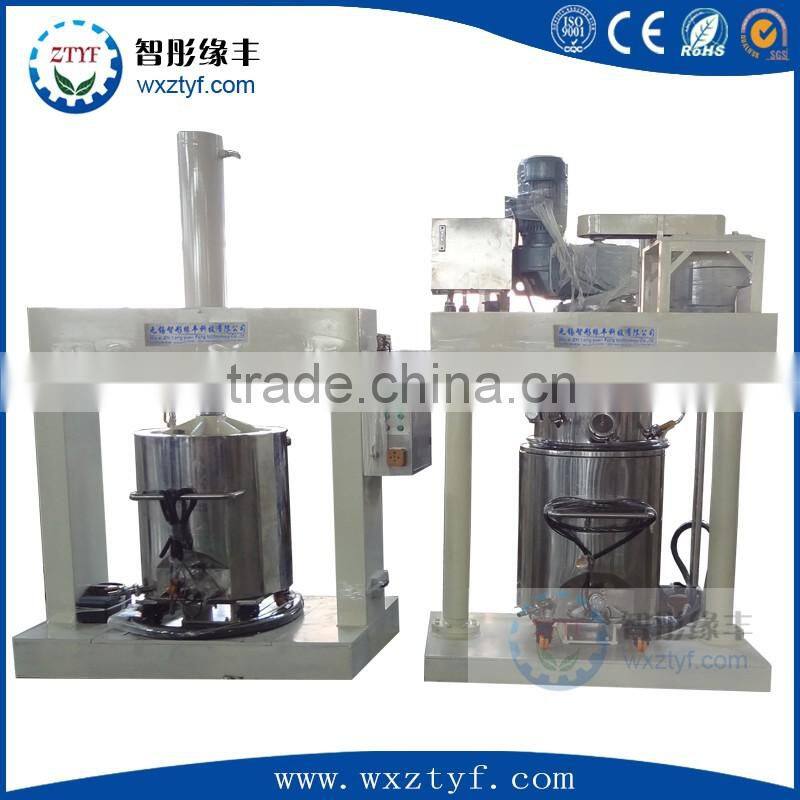

Adopt hydraulic cylinder as lifting actuators,control the mixer up,stop and down through controlling the valve,simple operation with high stability; with barrel holding device for tank rapidly to prevent any possible accident due to tank displacement. Interlock between the tank in place and machine running can be set to avoid mal-operation.

No residue on the wall,clean discharging

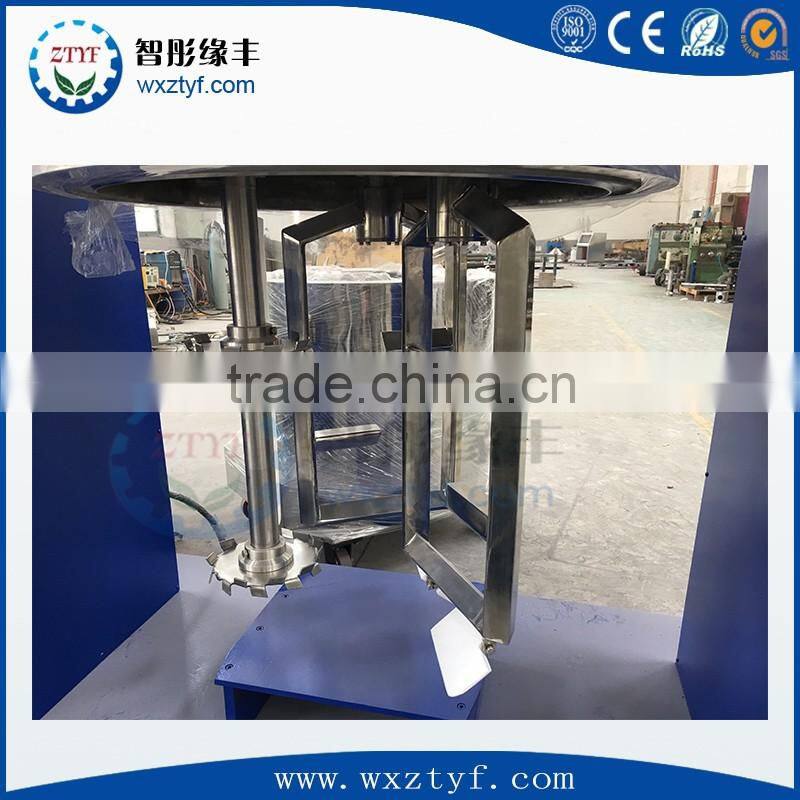

There is scraper on the planetary frame rotating together with the planetary frame, it clings to the container and scraper the materials on the wall off continuously. The container inner wall is precisely lathed and then mirror polished to ensure the scraper can scraper all materials sticking to the wall off without residue.The blades can also be equipped with scraper for scraping the material at bottom to ensure without mixing dead corner and excellent mixing result.Finished products with stable quality is ensured.

Customized options

Different options are available such as explosion-proof type,closed type,heating type,with PLC intelligent control type, etc,,, Material can be customized to be SS316L or special Spraying materials.

Specification:

5.Specification:

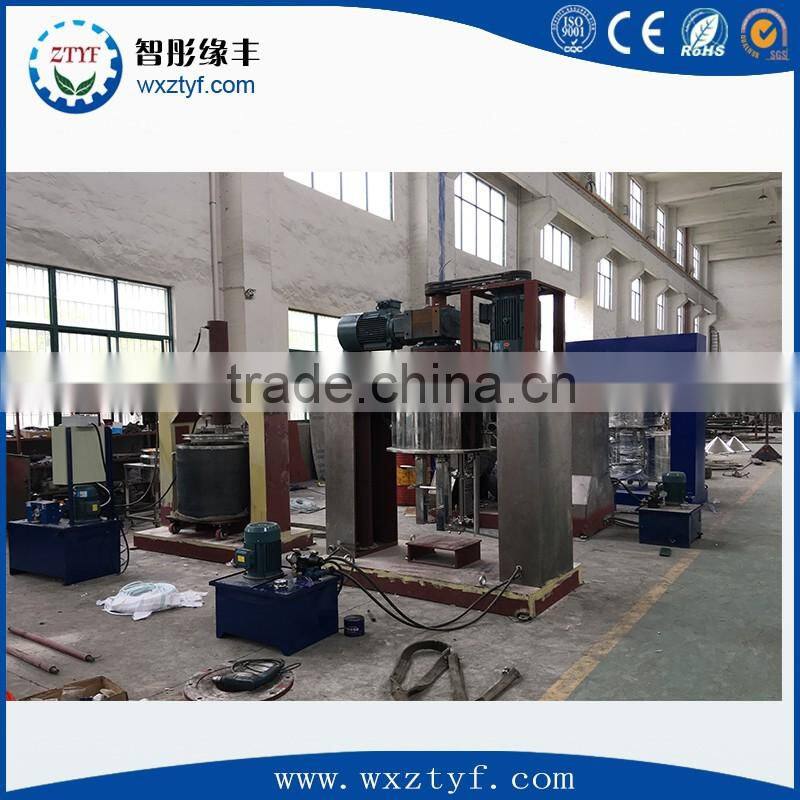

Factory view for making dual planetary mixer :

♦ Company profile

♦ Advantage

1. Homogenizer's design mainly stem from Japanese technology.

2. Completely Meet GMP

3. Material contact part all use SUS316L

4. Using Japan NSK bearings

5. Siemens motor, Panasonic Inverter, power-saving, machine-protect, keeping the machine working stably

6. Burgmamn mechanical seal, seal good, long working life, keep the homogenizer work 24 hours continually.

7. Safety protecting functions, make the produce saver

8. Install a fall buffer unit on the hydro-cylinder in the hydraulic system; keep the cover up and down stable.

♦  Frequently Asked Questions

Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.

Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.

Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.

Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q: Do you provide beneficiation flow chart?
A:  Yes, our experienced engineers are specialized in dedign various mixer and filling line and all is based on your requirements.

Q: Can we take material and do a test in your factory? A: Before you coming, just contact with me if we has the machine in factory yes you can test. ?
A: Yes. You can send your samples to us for test and analysis.

Q: For the function mixer , the viscosity of material is 50000cps,does mixing it is ok?
A: yes that is no problem ,we has double planetary mixer and tri-shaft mixer,which both main for the high viscosity.

Q: our material is Mayonnaise, does your vacuum emulsifying mixer mixing it is  ok?
A: That depend on your technology art, some clinets just using vacuum emulsifying mixer is ok but some need connect with our colloid mill. colloid can mill the material more fine and smooth.
