Home > Products > New Products > utility golf carts, left steering/right steering ,ce approved

utility golf carts, left steering/right steering ,ce approved

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 100 Unit / Units per Month
Port Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Seats:	5 - 6	Fuel Type:	Electric	Battery Voltage:	48V
Certification:	CE

Product Description

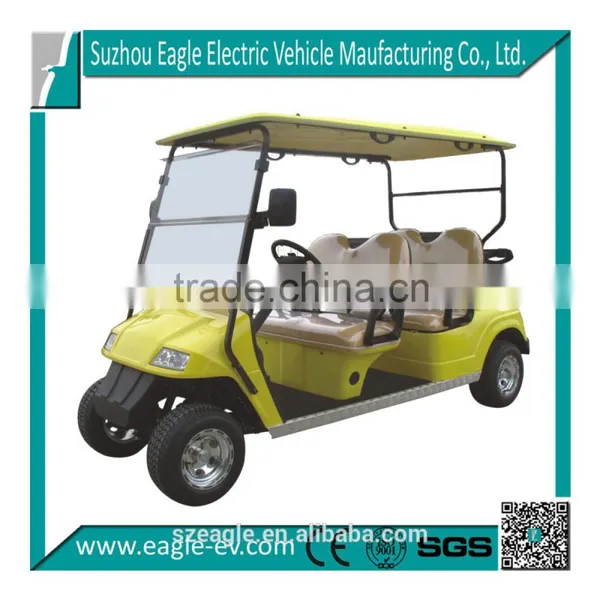

Utility golf carts, left steering/right steering ,ce approved

Product Description

Specifications	Model	EG2048KSZ
Key Components	Power Source	Pure Electric
	Electric System	Both AC and DC system are available
	Battery	Trojan battery
	Motor	ADC motor or Chinese Motor
	Controller	Curtis controller
	Charger	China origin, input 110V-240V~50Hz-60Hz,
Performance	Passenger capacity	6
	Range (loaded) based on flat road at a speed of 20km/h (km)^*	Up to 90
	Max. speed	Up to 40
	Minimum turning radius (m)	4.5
	Max. climbing ability (loaded)	Up to 20%
	Max. movement after brake at speed of 20km/h	≤4m
	Max. loading weight	480kgs
Dimensions	Overall dimensions (mm)	3420x1180x1850
	Min. ground clearance (mm)	120
	Wheelbase (mm)	2450
	Front wheel tread (mm)	855
	Rear wheel tread (mm)	975
Body and Frame	Frame	Welded steel framework with phosphate+electro-coating treatment
	Body	PP plastic front body + PP plastic rear body
	Roof	Injected plastic
Electric system	Lighting system and horn	Headlights,front turn signals, taillights, with DC-DC converter, horn,reversing alarm
Steering and Suspension	Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
	Brake system	Mechanical brake
	Suspension system	Front and rear plate spring + cylinder hydraulic shock absorber
	Driving mode	Rear axle two stage deceleration, motor direct driving
	Rear axle	Integrated
	Wheel & Tyre	Alumimum wheel & 205/50-10 Tyre
Options	Hinged Windshield
	Stainless steel package
	Meter (available for 48V system)
	2 point seat belt
	Formed seat&backrest vinyl
	Wood finish Package
	Inner & Side rear view mirror
	Solar Panel
	Cooler
	on-body charger
	Right hand drive system
	4-wheel hydraulic brake system
	Enclosure
Body Color	Up to 6 kinds of standard color for option
Loading	Both Assembly and Disassembly are available

Packaging & Shipping

Container loading qty	Disassembled	Assembled
Qty/20'	6units	4units
Qty/40'	14units	8units
Qty/40'HQ	22units	8units

Our Services

* life long spare parts supply
* 13 months warranty
* lifte long technical support
* parts manual * trouble shooting support

Company Information

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

FAQ

Payment Terms:
"T/T 30% down payment at order, T/T 70% to be paid before the delivery" Or Irrevocable L/C at sight
Lead time:
Four Weeks after getting your down payment or original L/C
MOQ:
We dont have minimum order requirement but may apply extra cost for sample unit
