4 Layers PCB and PCBA Assembly board
- 600000 Piece / Pieces per Month
- Shenzhen
- T/T D/P D/A
You May Like

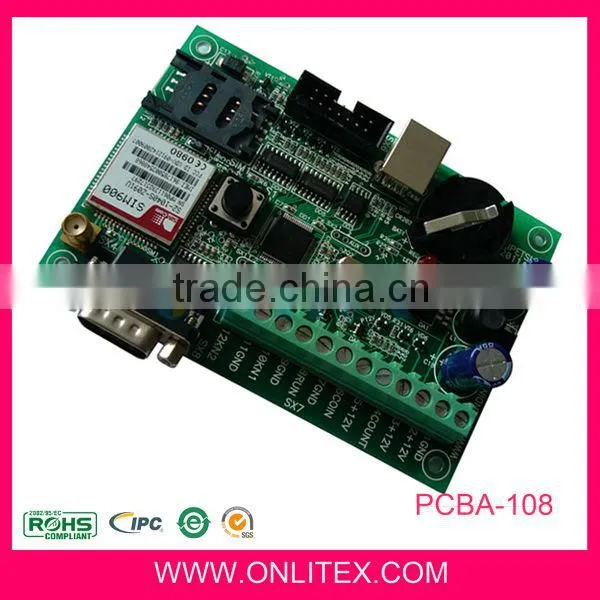

Product Details
| Place of Origin | Guangdong, China | Brand Name | ONLITEX PCBA | |
| Model Number | PCBA-108A | Base Material | FR4 PCB | |
| Copper Thickness | 35um | Board Thickness | 1.6mm | |
| Min. Hole Size | 0.2mm | Min. Line Width | 0.25mm | |
| Min. Line Spacing | 0.25mm | Surface Finishing | ENIG |
Product Description
Specifications
4L PCB assembly- upto 16 layers pcb
- smd through holes assembly
- IPC610 pcba standard
- 2 weeks fast delivery time
Specifications
4 Layers PCB & PCBA Assemblies board
1. material:FR-4 (thickness from 0.2mm~2.4mm)
2. surface finished: HASL,SOP,Immersion Gold
3.3000 square meter pcba factory
4. RoHS approved PCB
4L PCB Assembly Service:
- Printed circuit board assembly
- Upto 16 layers bare pcb making
- Compoents sourcing and purchasing
- Lead free PCB assembly (RoHS)
- PCBA turnkey
- SMT assembly
- DIP assembly
- Through hole assembly
- wave solder machine process
PCBA assembly Manufacturing Capability:
| PCB Layers | 1Layers to 16 layer (Max) |
| PCB Material | FR4 bare pcb |
| PCB Copper thickness | 18um,35um,70um,105um,140um |
| Surface finish of PCB | HASL, ENIG,OSP |
| PCB Min holes | 0.15mm |
| PCB Min wire width | 0.15mm |
| PCB Min clearance | 0.15mm |
| PCB Dimension scope | 457x567cm(max);4x3cm(min) |
| IC Pitch(min) | 0.2mm |
| Chip Size(min) | 0402/1005(1.0x0.5mm) |
| BGA Size | 8x6mm~55x55mm |
| BGA Pin Count | 48pins~600pins |
| Package | SOP/SSOP/PLCC/QFP/QFN/BGA/FBGA/u-BGA |
| u-BGA ball dia. | 0.2mm |
Type of Assembly | SMT and Through hole assembled board |
Solder Type | Both Lead and Lead free available |
Component | 0402components Ball grid array (BGA) double side pcb SMT assembly Through-hole and mixed technology assembly DIP wave soldering |
Type of Service | Turn-key, Partial Turn-key, Consignment |
Testing | In circuit Testing(ICT) Functional testing(FCT) XRAY Inspection |
Quality Standard | IPC-A-610E Class 2 ISO9001 |
Capacity | SMT: 15,000 pieces per day(suppose 100pcs chips/borad) 10,000pcs per day for DIP |
File Format | BOM list in Excel file Gerber files Testing procedure (*.doc format) |

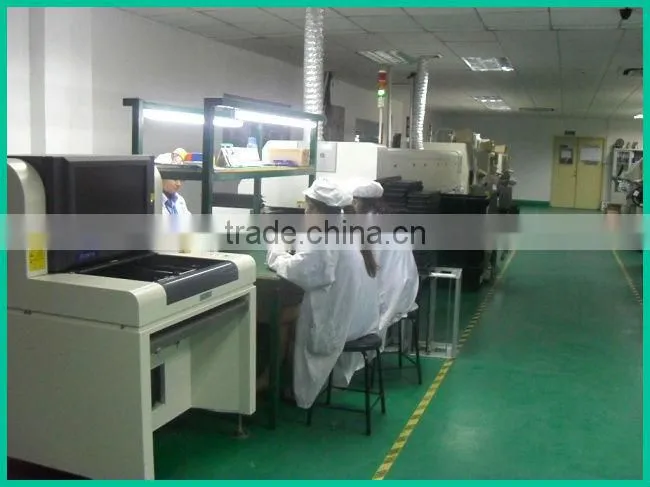

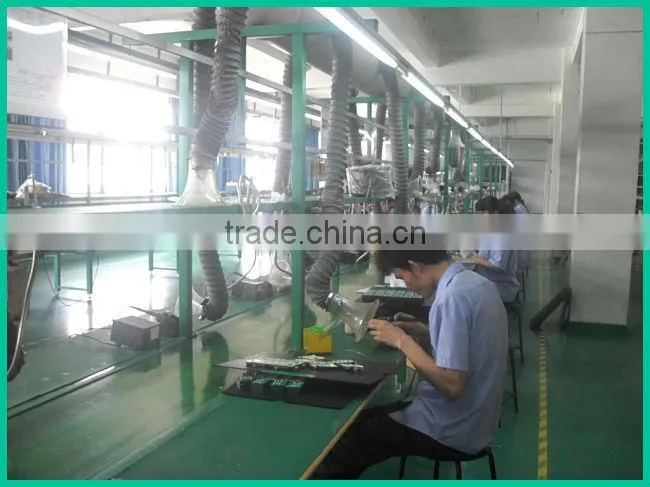

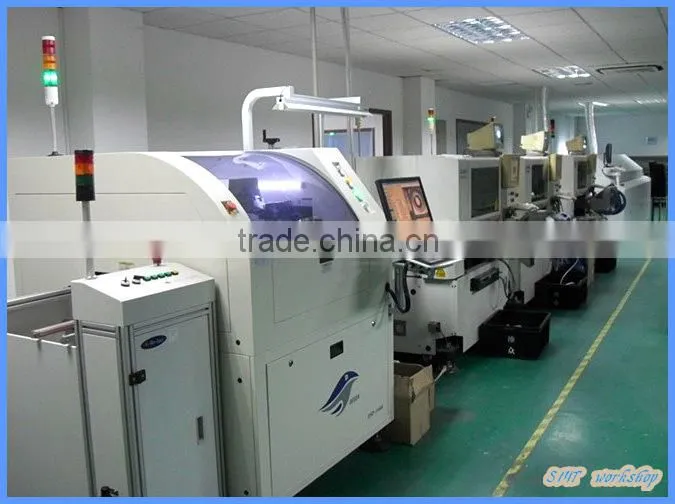

PCBA FACTORY Photos
