Shenzhen LED Bga Control Electronic PCBA

Specifications

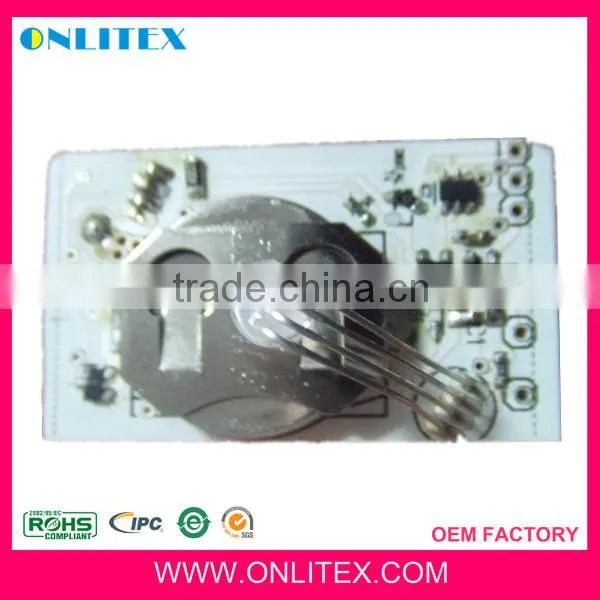

LED Bga pcba
1, Quotation within 5 days
2, SMT/DIP LED Bga pcba service
3, One -stop service s

Shenzhen LED Bga Control Electronic PCBA

 Our PCB fabrication capacity:

Item	Manufacturing Capability
Material	FR-4 / Hi Tg FR-4 / Lead free Materials (RoHS Compliant) /CEM-3, Aluminium, Metal based
Layer No.	1~12 layers
Finished Board thickness	0.2 mm-3.8mm’(8 mil-150 mil)
Board Thickness Tolerance	±10%
Cooper thickness	0.5 OZ,1.0OZ,1.5OZ and 2 OZ (18 um-75 um)
Copper Plating Hole	18-40 um
Impedance Control	±10%
Warp&Twist	0.007
Peelable	0.012"(0.3mm)-0.02’(0.5mm)
Min Trace Width	0.1mm (4 mil)
Min Space Width	0.1mm (4 mil)
Min Annular Ring	0.1mm (4 mil)
SMD Pitch (a)	0.3 mm(12mil)
BGA Pitch (b)	0.3 mm (12mil)
Min Solder Mask Dam (a)	0.0635 mm (2.5mil)
Soldermask Clearance (b)	0.1mm (4 mil)
Min SMT Pad spacing (c)	0.1mm (4 mil)
Solder Mask Thickness	0.0007"(0.018mm)
Min Hole size (CNC)	0.2 mm (8 mil)
Min Punch Hole Size	0.9 mm (35 mil)
Hole Size Tol (+/-)	PTH:±0.075mm;NPTH: ±0.05mm
Hole Position Tol	±0.075mm
HASL	2.5um
Lead free HASL	2.5um
Immersion Gold	Nickel  3-7um  Au:1-5u''
OSP	0.2-0.5um
Panel Outline Tol (+/-)	CNC: ±0.125mm, Punching: ±0.15mm
Beveling	30°45°
Gold Finger angle	15° 30° 45° 60°

Dongguan Onlitex Electronic Co. Ltd. is an China professional and competitive manufacturer(factory) that focus on pcb design & manufacture and marketing service of consumer & industrial electronics products,pcba made in china best price.

LED Bga pcba   Packaging

-Items per carton: 1000pcs/Carton

-Package Measurements: 46x46x36mm

-Gross Weight: 15kg

-Package Type: 1pcs/ESD bubble bags K=K Honey carton box





LED Bga pcba   PCB Full assembly capability

- Full experienced QC and inspector

- Strong sourcing ability in relative parts and components

- Experienced technical staffs in charge of product design

- Circuit boards 1 to 28 layers PCB layout, fabrication, PCB assembly and box build

- Enclosure cabinet case plastic injection molding, metal stamping, manufacturing and assembly

- High-precision 0201 size components SMT technology and lead-free

- RoHS compiant SMT, DIP process

- IC pre-program

- High-precision E-Tesing include: ICTin circuit, function tesst, etc.

Manufacturing capability
- PCBA Size: 457x567cm(max);4x3cm(Min)
- IC Pitch(min):0.2mm
- Chip Size(min):0402 /1005(1.0x0.5mm)
- BGA Size:8x6mm~37x37mm
- BGA Pin Count: 48pin~600pin
- Package: SOP/SSOP/PLCC/QFP/QFN/BGA/FBGA/u-BGA
- u-BGA Ball diameter: 0.2mm

LED Bga pcba    Trade Term:

1. Payment: T/T, LC,DA,DP,Paypal.

2. Lead time: 10 working days for normal products(components less than 100pcs on pcb board).

3. Samples can be available within 8~10working days

4. Shipping port:  Shenzhen or HongKong

5. Discount is offered at larg order quantities
