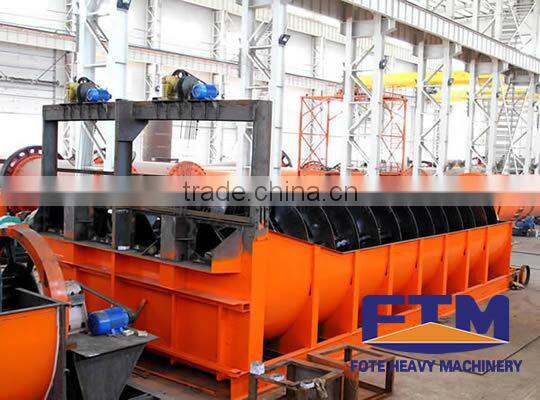

China FTM large capacity spiral classifier with good quality
- 15 Set / Sets per Month
- Shanghai / Tianjin / Qingdao port
- T/T
You May Like
-
professional manufacture CE/ISO certification spiral classifier with good quality
-
Henan spiral classifier with good quality and low price
-
efficiency spiral classifier with good quality and low price
-
high performance spiral classifier with good quality and low price
-
standard style spiral classifier with good quality and low price
-
good reputation spiral classifier with good quality and low price
Product Details
Condition | New | Type | Sprial Separator | |
Place of Origin | Henan, China | Brand Name | FTM | |
Model Number | 2FG - 30 | Voltage | customized | |
Power(W) | 40/8 | Dimension(L*W*H) | as per specification | |
Weight | as per specification | Certification | CE ISO | |
Warranty | 1 year warranty | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1.The spiral classifier manufactured by our company adopts advanced technology.
2.It is divided into single spiral classifier and double spiral classifier.
3.There are two types of spiral classifier.
1.)High weir single or double type:It's mainly used for the separator of ores with particle size between 0.83-0.15mm.
2.)Immersed single or double type:It is mainly applied to the separator of ores with particle size between 0.15-0.07mm.
Application
Spiral Classifier is widely applied to separate the particles into different product grades according to size in the complete
closed loop together with ball mill in the mining industry, separate light particles from heavy particles in the gravity
separation process, separate fine particles and liquid from coarse particles in the metal ore dressing process, separate the
slurry or liquid from solid particles in ore dressing plant.
Working Principle
Different solid granularities have different gravity and thus have different dropping speed. The fine ore granularities
floating in the water will overflow and the big ones will sink to the bottom, and then discharge from the upper part by
spiral pushing. It can filter the granularities from the machine and then spin the rough particles to charging part by spiral
vane and discharge the fine granularities from the overflow pipe.
Feature and Advantages
1.Energy saving.
2.Adjustable particle size.
3.Applicable for wide range of industries.
4.Simple to control the purity of ore sand.
5.Compact structure and reliable operation.
6.Easy to maintain and low repair rate for adopting tile lining.
7.Concise operation for adopting the technology of inverter control.
These machines are processed to be rustproof and moisture proof before delivery. Large mainframes are in nude, while small spare parts and motors are in wooden boxes.
1. Pre-sale services: Enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special
demand.
2. Sale services: Servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check
with you.
3. After-sale services: Faithfulness
To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design,
instruction, installation and debugging for free.
4. We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services
and provide spare parts for a long term, and repair main parts under right using for free in two years.
Henan Fote Mining Machinery Co., Ltd., the former Henan First Machinery Factory in Henan, is located in Zhengzhou, capital of machinery manufacturing in China. Founded in 1982, our company is a large joint-stock enterprise specialized in manufacturing heavy mining machinery and civil machinery. Our company covers 360mu, over 2,000 staff, 60,000 square meters of standardized heavy industrial plant, and about 500 sets of large and medium sized processing, riveting, welding and assembly machines. After 30 year's construction and development, Fote has become a famous production and export base of mining machinery and civil machinery in China.
1. How is the quality of your products?
Our products are manufactured strictly according to national and international standards, and we take a test on every
machine before delivery.
2. What guarantee do you provide?
If products’ quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3. How about price?
We have factory, so we can give you the lowest price than other companies. Besides, we have a policy that " to save
time and with honest business attitude, we quote as low as possible for any customer, and discount can be given
according to quantity."
