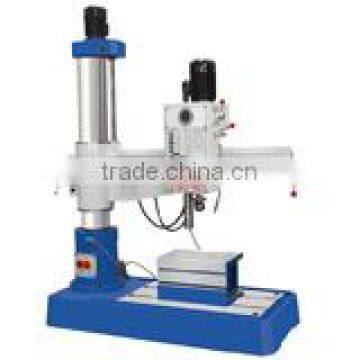

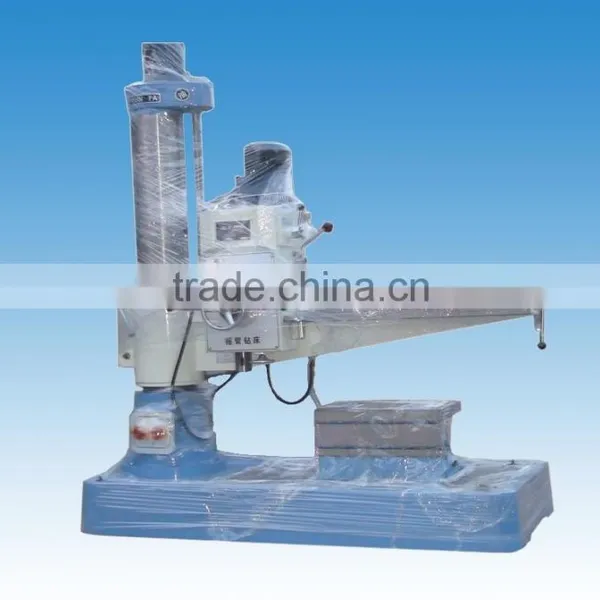

Radial Drilling Machine Z3040X10/13(dual column)

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	HELI	Model Number	Z3040X10/13
Voltage	380V	Rated Power	2.2KW
Dimension(LWH)	15007052200mm	Weight	1350kg
Certification	CE	Warranty	12 months
After-sales Service Provided	Overseas service center available

1.Mechanical transmission
2.Mechanical clamping
3.Mechanical speed change
4.Automatic lifting
5.Automatic feed

Main Features

Main parts and key parts of Z3040x10/13 radial drilling machine are made by high strength cast and special steel material.

Heat treatment made by first-class equipment, ensuring durability.

Machining is made by means of specialized equipment, to ensure basic parts.

Clamping for assemblies and speed-change of spindle is achieved by hydraulic power, and is sensitive and reliable.

6 steps of spindle speed and feed brings about economic and high-efficiency cutting.

Mechanical and electrical controls are centralized on the head stock, with easy and rapid operation.

New painting technology and improved outward appearance reflects the specialty of machines.

Optimum design conforming to international standard.

Z3040x10/13 main technical data

SPECIFICATION	UNIT	Z3040 x 10/13
Max. drilling diameter	mm	Cast iron 40/steel parts 32
Distance between spindle centerline and column generatrix	mm	360-1000	360-1300
Distance spindle nose and working surface of base plate	mm	260-1050
Spindle travel	mm	200
Range of spindle speeds	r.p.m	6 steps 75-1200
Spindle number of feeds	--	3 steps 0.10,0.16,0.25
Overall dimensions((LWH)	mm	15007052200		18208402420
Main motor power	kw	2.2
N.W/G.W	kg	1280/1500			1330/1900

After-sale Service:

1.Technical support online service provided.

2.Technical files service provided.

3.On-site training service provided.

4.Spare parts replacement and repair service provided.

5.All of the questions will be replied within 24 hours.
