Home > Products > Power Fittings. > Aluminium Parallel Groove Connector(aluminium wire electric connector,tinned aluminium cable connector)

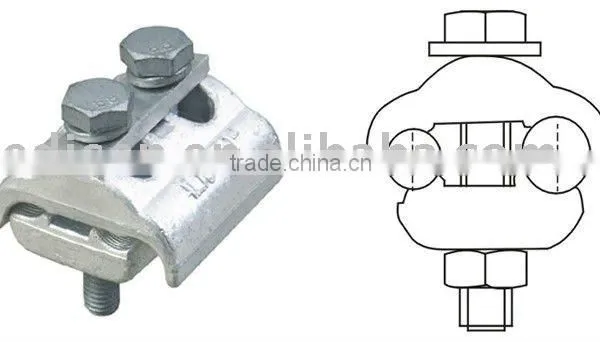

Aluminium Parallel Groove Connector(aluminium wire electric connector,tinned aluminium cable connector)
Negotiable
/ Piece
100 Pieces(Min.Order)
- 50 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T Credit Card PayPal
You May Like
-
Suspension Clamps(cable suspension clamp,abc suspension clamp)
-
AU Aluminium Connecting Tube(copper tube terminal)
-
Suspension Clamps(cable suspension clamp,abc suspension clamp)
-
SC(JGK) Copper Cable Lugs(Tinned copper cable lugs, copper terminal lugs)
-
AUS Imported Copper Terminals Connecting Tube (Tinned copper cable lugs, copper terminal lugs)
-
Feeder Clamps(cable suspension clamp,abc suspension clamp)
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | LEDISEN | Model Number: | APG |
| Type: | Other, IPC | Application: | Power | Gender: | Other, IPC |
Product Description
Specifications
Aluminium Parallel Groove Connector(aluminium wire electric connector,tinned aluminium cable connector)Material:Aluminium
Aluminium Parallel Groove Connector(aluminium wire electric connector,tinned aluminium cable connector)
Material:
Body:High strength, corrosion-resistant,aluminium alloy
Bolts:3, steel8.8, hot-dip galvanized Pressure Pad:aluminium alloy
Spring Washers:steel,hot-dip galvanized
| Conductor Cross(mm2) | Conductor Diameter (mm) | Bolts |
| A1 | ACSR | |
| APG-6-35 | 16/12.5-35/6 | 2×M8 |
| APG-10-95 | 16/2.5-70/12 | 2×M8 |
| APG-10-50 | 16/2.5-50/8 | 2×M8 |
| APG-16-70 | 16/2.5-70/12 | 2×M8 |
| APG-16-120 | 16/2.5-95/15 | 2×M8 |
| APG-25-150 | 25/4-120/20 | 2×M10 |
| APG-35-185 | 35/6-150/25 | 2×M10 |
| APG-35-185 | 35/6-150/25 | 3×M10 |
| APG-35-300 | 35/6-265/35 | 3×M10 |
Aluminium-Copper Parallel Groove Connector

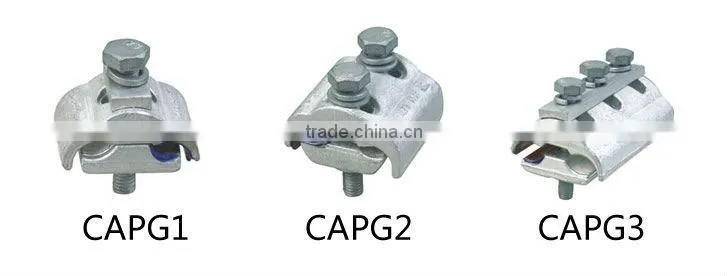

CAPG1
Conductor(mm2) | Bolts | |
A1 | Cu | |
16-70 | 1.5-10 | 1×M8 |
16-95 | 1.5-35 | 1×M8 |
16-70 | 6-50 | 1×M8 |
35-120 | 10-50 | 1×M8 |
CAPG2
| Conductor(mm2) | Bolts | |
| A1 | Cu | |
| 16-95 | 1.5-10 | 2×M8 |
| 25-95 | 1.5-35 | 2×M8 |
| 16-70 | 6-50 | 2×M8 |
| 35-120 | 10-50 | 2×M8 |
| 25-120 | 10-95 | 2×M8 |
| 95-120 | 10-50 | 2×M10 |
| 35-200 | 16-185 | 2×M10 |
| 50-300 | 35-240 | 2×M10 |
| 50-150* | 25-70 | 2×M10 |
| 70-120 | 95-120** | 2×M10 |
CAPG3
| Conductor(mm2) | Bolts | |
| A1 | Cu | |
| 35-185 | 35-185 | 3×M10 |
| 50-300 | 35-240 | 3×M10 |
