SINOSUN CAP Series Asphalt Drum Mix Plant (20-80T/H)
SINSOUN CAP series asphalt drum mix plant is type of continuous asphalt mixing plant, with characteristics of simple structure, low cost, easy dismantle and erection and convenient maintain. Capacity range is from 20-80TPH. It can be designed both stationary and mobile type. CAP series asphalt drum mix plant is suitable for road maintenance and small road construction project.
1. The dust collection system is friendly, dryer drum with quite low power consumption, its modular design saves the cost of transportation and installation, its diversified configuration can meet different investment requirement.
2. The cold aggregate bins used for temporary storage cold aggregate, the aggregate quantity were controlled by different rate charging belt.
3. The burner can use kinds of fuel, such as light oil, heavy oil, gas and coal.
CAP Series Main Parameters
Model | CAP20 | CAP40 | CAP60 | CAP80 |
Type | Drum Mix | Drum Mix | Drum Mix | Drum Mix |
Rated Capacity (T/H) | 20 | 40 | 60 | 80 |
Drying & Mixing Drum (mm) | Φ1000X4500 | Φ1200X6000 | Φ1500X6500 | Φ1600X9000 |
Aggregate Bins | 4.5m³X3 | 6m³X3 | 6.5m³X4 | 6.5m³X4 |
Fuel Consumption (kg /ton) | 6.5-7.5 | 6.5-7.5 | 6.5-7.5 | 6.5-7.5 |
Weighing Precision (%) | hot aggregate ±1; bitumen ±0.5 | hot aggregate ±1; bitumen ±0.5 | hot aggregate ±1; bitumen ±0.5 | hot aggregate ±1; bitumen ±0.5 |
Aggregate Moisture (%) | ≤5 | ≤5 | ≤5 | ≤5 |
Hot Asphalt Temperature (℃) | 130-165 | 130-165 | 130-165 | 130-165 |
Air Emissions (mg/Nm³) | ≤100 | ≤100 | ≤100 | ≤100 |
Working Noise (db(A)) | ≤70 | ≤70 | ≤70 | ≤70 |
Operation | Full Auto/Manual | Full Auto/Manual | Full Auto/Manual | Full Auto/Manual |
Installation Power(KW) | 40 | 80 | 120 | 175 |
Plant Covering Area(m) | 15.6X15 | 30X16 | 33X20 | 35X25 |
CAP Series Components
1. Cold Aggregate Feeding System
2. Drying & Mixing Drum
3. Burner (Oil burner or coal burner)
4. Dust Collection System
5. Hot Aggregate Elevating System
6. Bitumen Supply System (thermal oil direct-heating type)
7. Mixed Asphalt Storage Silo
8. Control System
9. Traveling Chassis (optional)
Cold Aggregate Feeding Bin Drying & Mixing Drum Burner Cyclone Dust Filter

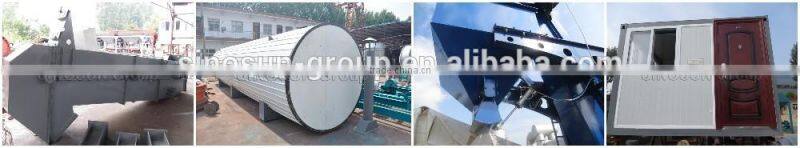

Hot Aggregate Elevator Bitumen Tank Mixed Asphalt Storage Silo Control Room

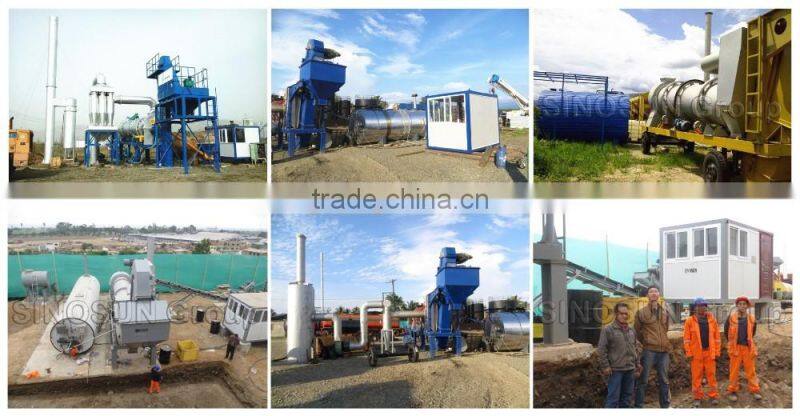

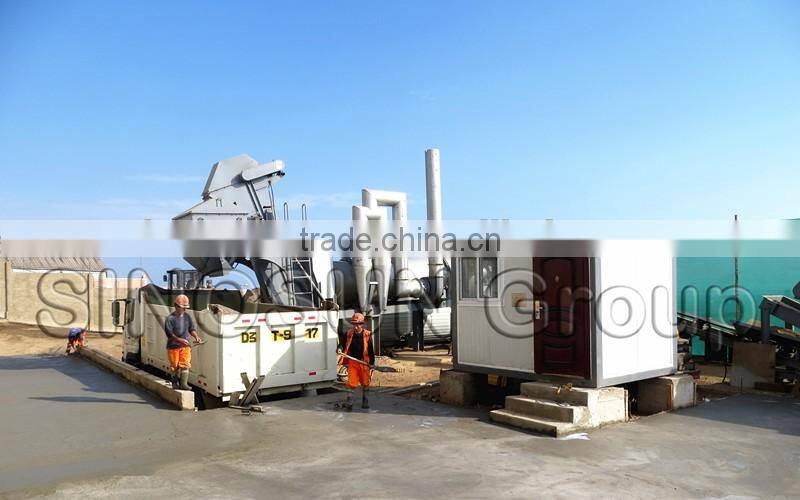

CAP40 Overseas Worksites
Introduction of SINOSUN Company
SINOSUN is one of China’s dominant manufacturers and exporters of Asphalt Mixing Plants and related asphalt plant parts. For years, SINOSUN has supplied customers with high quality full set asphalt plants and also has rich experience to help customer upgrade and reform asphalt plants. With advanced technology, modern workshop, professional technical team and sales team, we can supply good quality equipments and full service for you.
Welcome to visit our company and know more about our asphalt mixing plants!
Certificates for SINOSUN Asphalt Mixing Plant
Quality Control (QC):
Third Control
ISO9001:2008 Certificate
European CE Certificate
GOST Certificate
Enviroment Protection Design
Commercial Terms:
Manufacturing Time : 30~40 Working Days
Payment Term : T/T or L/C
Transportation : by sea or railway in containers.
After Sale Service:
1. Turn-Key Solutions
2. Erection & Commissioning Service
3. Operation Training Service
4. Spare Parts Supply (all working life)
Our Product Scope:
1. Stationary Asphalt Mixing Plant (40-320 T/H)
2. Mobile Asphalt Mixing Plant (40-160 T/H)
3. Asphalt Drum Mix Plant (20-80 T/H)
SINOSUN CAP series bitumen drum mix plant
