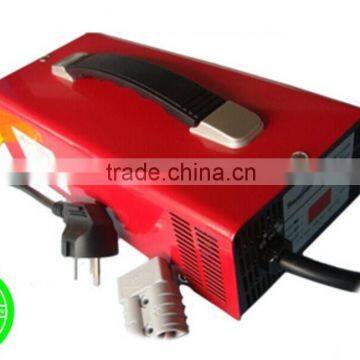

Full Automatic intelligent AC220V/50Hz/DC24V/25A portable industrial 300W-1000W lead-acid battery charger for forklift

General Introduction

1,The automatic charger using today's advanced non-frequency transformer switching power supply technology, small size, light weight, high efficiency;

2,Combined with intelligent charging technology to extend battery lifespan and charge battery fully and timely. This battery charger can be completely free of man monitoring and working automatically, especially for unattended charging occasions.

3,This battery charger can charge battery fully by maintaining long-term connection, suitable to be as cars and generators or other equipments, to start charging power supply and replenish.

4,The charger is suitable for automatic charging capacity (20 ~ 1000) Ah of the battery open or sealed type of lead-acid battery, both for temporary charge and be used for long-term float charging.

Operation and Precautions

Special remarking:Only completely right connect lead-acid battery with battery charger, battery charger can start working normally

1. Some examination before the energized: After long time storage and transportation, the battery charger should be checked completely against any damage, such as the screw is loose or not, the appearance of case, power wire, connector, etc., if these phenomena occurred, they should be promptly and properly handled before operation with live electricity.

2. Cut off “power switch” and connect input wire.

3. Wiring: under "power switch" situation, Connect lead-acid battery and battery charger with the front panel access (wire cross-section area should not be less than 12mm2 or based on the actual current choice), confirm the connection is correct, and specially make sure the connector is connected firmly to avoid large current flows make too heat to damage the lead-acid and battery charger.

4. Choose charging current:Generally the charging current is based on charging time 10 hours, that is: charging current(A)=rated battery volume(Ah) ÷10(h), e.g.200Ah battery, charging current(A)=200Ah÷10h=20A,then adjust the charging current to 23A,if need charge battery in a shorter time, the charging current can be enlarged to some extent

5. Put on “power switch”, the charging start.

6. Charger cooling fan is for the smart thermostat, when the internal temperature exceeds the thermostat switch start point, the cooling fan will start automatically, make sure do not block inlet and outlet of cooling fan.

7. When the internal temperature is too high and reach thermal shutdown temperature threshold, the charger will automatically stop working and make sure not to be damaged; when the temperature dropped slightly to start working automatically

8.If the over-discharge of the battery make the battery voltage is too low, use a larger charging current to charge the battery: If a connected battery leads to the charger exit start , the operation of this connection can be repeated several times to activate the battery which is over-discharged.

9.When fault happen: if find the battery charger is not working properly then cut off "Power Switch" promptly and cut off the input wire, carefully check whether the charger and battery is connected properly, whether the terminal nut loose, various switches, knobs position are correct, if the user is difficult to deal with problems, Never attempt to open the cabinet. Because a high-voltage inside the machine, the user who are not familiar with the expertise to repair machine by themselves do not open the cabinet, you should promptly contact service with our company or dealer.

10.Special Note: Only properly connect the battery and charger, the charger begin to work! Note that you should put more attention to the battery positive and negative polarity, wrong polarity indicator does not turn off power, you can not put on “power switch”.

Warranty Issues

1, One year product warranty since delivery date and lifetime maintenance

2, If the following conditions happen during using our company's products process, , the Company does not reply warranty obligations

3, Do not follow user’s operation manual and cause product damage;

4, Wrong installation and assemble cause product damage.

5, Use the charger in an unsuitable environment.

6, Unauthorized alteration or repair without professional instructions cause product damage

7, Product is damaged due to the abnormal external force

8, Products damaged due to natural disasters or other force majeure

9, Warranty for quality problems only, our company's liability is limited to the product itself, does not bear the other responsibility and the associated extension.

Payment Terms

      1. Samples:  100% TT payment in advance;

      2.Trial order: 30% TT payment in advance and 70% balance before goods delivery.

      3.Bulk order: 30% TT payment in advance and 70% balance against copy of B/L.

      Delivery time

      1. Samples: 5-7 working days;

      2. Bulk order: 10-25 working days.

      Warranty

       3 years warranty:we will replace the broken ones with new ones free of charge in 3 years.

      Shipping Method

      1. By Express: DHL, UPS, Fedex, normally 4-5 working days for delivery, (suitable for samples)

      2. By Air: if package gross weight is over 45KGS, 5-7 days for delivery, (suitable for trial order)

      3. By Sea: the most economic shipping method for bulk order, (suitable for bulk order)

      4. We can arrange all shipment matters or you arrange your shipping agent or forwarder

After-sale Service

           1. Quick reply on customers' questions;

           2. If anything goes wrong with the products'quality, we will replace for you free

Quality Control

          1,All LED lamps have been tested and lighting for 24 hours to test quality reliability and other parameters.

          2,Each lamp must pass all the QC procedures before goods delivery from factory.

Our Services
          1. For all your inquires about us or our products, we will reply you in 24 hours;
          2.Our well-trained and professional sales are online with Alibaba trademanager and Skype.

          3. OEM is available, our factory can customized your products and your LOGO printed package

FAQ

Q1. Can I have a sample order for battery charger?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for battery charger order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for battery charger?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on battery charger product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our battery charger products.

Q8: How to deal with the faulty?

Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
