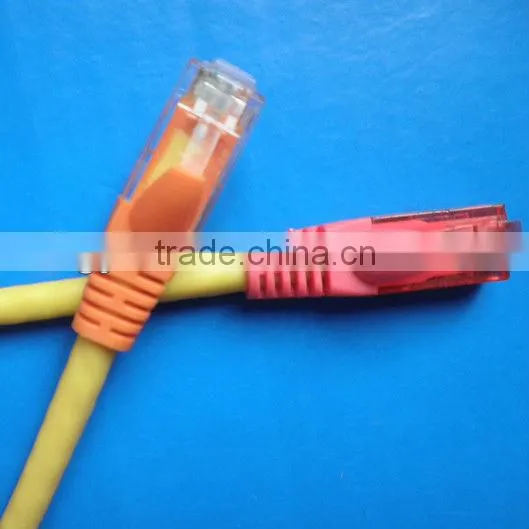

RJ45 UTP fluke test molded 568B 568A unshielded cable assembly

Specifications

unshielded cable assembly
1.ETL, UL, RoHS compliant
2. 100% fluke pass
3. all lengths colors
4. OEM for famous brands

RJ45 UTP fluke test molded 568B  568A  unshielded cable assembly

1.Curious about how to produce one patch cord?

2.Specification

1)cat5e patch cord



Cable	Cat.5e UTP or FTP cable
Jacket	PVC/LSZH jacket
Wire	4*2*AWG24/26, Twisted Pair
Plug	RJ45 Gold plating from FU” to 50U”
Transmission	It supports data transmission to 100MHz







2)Cat6 patch cord:



Cable	Cat.6 UTP or FTP cable, with Cross inside
Jacket	PVC/LSZH jacket
Wire	4*2*AWG24/26, Twisted Pair
Plug	RJ45 Gold plating from FU” to 50U”
Transmission	It supports data transmission to 250MHz







3) Cat6A patch cord:



Cable	Cat.6A SSTP(PiMF) cable
Jacket	PVC/LSZH jacket
Wire	4*2*AWG26, Twisted Pair
Plug	RJ45 50U" Gold plating
Transmission	It supports data transmission to 500MHz







3.Testing

1)normal test

2)strict test---component test:Our patch cords can be individually tested by strict component test and

comes with test results in every bag.

4. How do we Quality Control?

1)Importing QC:

2)In-process QC:

3)Outgoing QC:

5.Certification

ETL,ISO,UL and ROHS



6.packing

1)packing rate

2)Netrual packing

3)Special packing



About us:

   GYA, professional manufacturer producing good quality Cat.5e, Cat.6, Cat.6A patch cords, and modular plugs, with competitive prices.      We only focus on production of medium and high quality patch cords and modular plugs, these two types of products. For patch cord,we can do 100% component test for Cat.6A and Cat.6 and attach test report with individual bag, which few factories in China are qualified. Our cables are UL verified, and patch cords are ETL certificated. For modular plug, we are doing full series, 4P4C, 6P4C, 8P8C, Cat5e, Cat.6, Cat6A, Cat7 plugs. We have complete production lines from stamping, electric gold plating, injection, and insertion. We are using Teijin PC materials from Japan with excellent transparency and flexibility. We also provide excellent support for cable assembly skills, because we design and produce plugs for our own patch cords. We are cooperating with world famous brand like Nexans.     For more information about us, please kindly refer to . We welcome customers to ask samples for evaluation. Our samples are free of charge.



 Hope to be a partner of your company!
