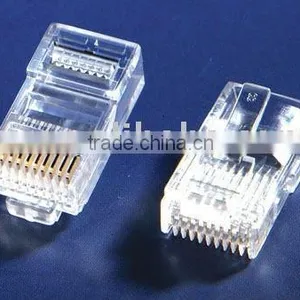

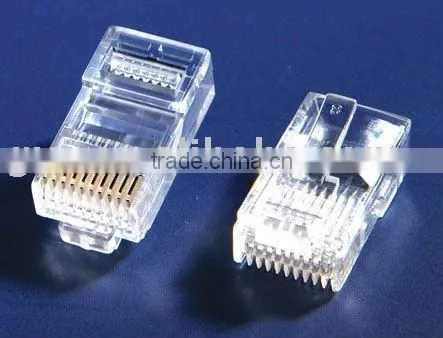

RJ48(10P10C) modular plug

Specifications

Modular plug 8P8C, 6P4C, 4P4C, shield or unshield; RJ11/RJ12/RJ45/RJ48 connector, male; Cat.5e/Cat.6/Cat6A UTP/FTP/STP plug.

WELCOME to JINHUA GUANYANG~~!!





1. Curious about how to produce one modular plug?



 2. Advantages:

1) Full seriesconnectors are available and High Capacity.

All modular plugs RJ11 RJ12 RJ45 RJ48, Cat.6A, Cat.7 , both UTP, unshielded and FTP, SSTP shielded are available. Our daily output is 1500Kpcs.

2) Gold plating thickness guarantee:

Full series of gold plating thickness from: gold flash, 03, 06, 15, 30 to 50U” are available. We do Salt Spray testing in factory, and evaluate the gold plating thickness by X-Ray tester in factory. The gold plating thickness of our modular plugs are guaranteed.

3) Fully compatible with female jacks:

All dimensions are designed according to FCC standard.

4) Japan imported PC materials:

TEIJIN Polycarbonate materials imported from Japan with good transparency and flexibility.



5) UL, Reach and RoHS verified:

Our V0 type of modular plugs are UL compliant.







6) Plug termination services:

We produce and design plugs for our own patch cords, and provide excellent services at cable assembly. You can easily provide your cable specification to us, and we will recommend the right plug specification for you.

 3. Quality control:



1)       Blade gold plating thickness inspection: X-Ray tester and Salt spray machine.



2)       Visual inspection:

   4. Packing Rate:



Spec.	Q'ty/CTN(PCS)	G.W./CTN(KGS)	N.W./CTN(KGS)	Carton dimension
4P plug	25000	18	17	450*350*270CM
6P plug	20000	18	17	450*350*270CM
Cat.5e UTP plug	10000	17	16	450*350*270CM
Cat.5e FTP plug	10000	25	24	450*350*270CM
Cat.6 UTP plug one part	10000	17	16	450*350*270CM
Cat.6 FTP plug one part	10000	25	24	450*350*270CM
Cat.6 UTP plug two parts	10000	17	16	450*350*270CM
Cat.6 FTP plug   two parts	10000	25	24	450*350*270CM



5. Packing pictures:



1)       Neutral packing:





2)       Special packing:
