Home > Products > CNG-2 composite cylinder > CNG2-G-406-100-20B CNG Tank

CNG2-G-406-100-20B CNG Tank

Name: CNG2-G-406-100-20B CNG Tank
Brand: tianen
Availability: InStock

FOB Price

USD $100 - $190 / Piece

100 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port NingBo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Steel	Use	CNG
Pressure	High	Place of Origin	Zhejiang, China
Brand Name	tianen	Model Number	CNG2-G-406-80-20B

Product Description

CNG Tank

cc1

Product Description

CNG Cylinder, CNG cylinder for car, CNG cylinder for type 2

Specifications

1.ISO11439 standard
2.34CrMo4 CNG cylinder
3.WP/TP:200/300bar
4.For natural gas powered motorcycle
5.ISO BV,ECER110

CNG cylinder for motorcycle, work pressure 200/300bar

Standard: Strictyly manufactured according to ISO11439:2000;

Test: Hydrostatic test, UT test etc that required by ISO standard will be applied to each cylinder;

ISO11439 CNG cylinder for vehicle series:

OD(mm): 232, 267, 325, 356, 406;

Water capacity(L): 20, 25, 28, 34, 40, 50, 52, 55, 60, 65, 70, 75, 80, 90, 100, 110, 113, 130, 140, 145, 160, 198 etc;

Composite cylinder can be provided as well.

Company:

Founded in 1953

Monthly export quantity:20,000pcs

Clients from: CIS, Latin Amercia, Asia, Europe, middle east, Africa etc

Type:CNG2-G-406-100-20B

Manufacturer: Zhejiang Tianen Pressure Vessel Co., Ltd.

Nominal Outer Dia.(mm):406

Volume(L): 80

Length(mm): 840

Weight(kg): 76

Nominal working Pressure(MPa): 20

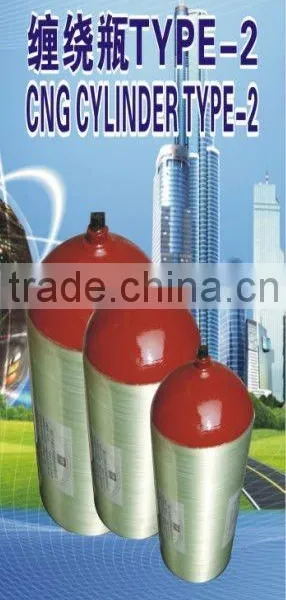

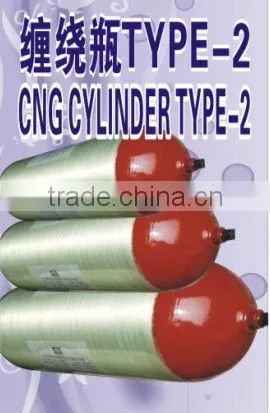

*CNG Cylinder type II*
Serial No.	Type	Nominal Outer Dia. (mm)	Volume (L)	Length (mm)	Weight (kg)	Nominal working Pressure (MPa)
1	CNG2-G-325-50-20B	325	50	810	42	20
2	CNG2-G-325-60-20B	325	60	930	51	20
3	CNG2-G-325-65-20B	325	65	995	56	20
4	CNG2-G-325-70-20B	325	70	1060	58	20
5	CNG2-G-325-80-20B	325	80	1200	66	20
6	CNG2-G-325-90-20B	325	90	1330	74	20
7	CNG2-G-325-100-20B	325	100	1460	82	20
8	CNG2-G-325-110-20B	325	110	1590	90	20
9	CNG2-G-325-120-20B	325	120	1720	98	20
10	CNG2-G-356-65-20B	356	65	860	56	20
11	CNG2-G-356-70-20B	356	70	912	58	20
12	CNG2-G-356-75-20B	356	75	965	61.5	20
13	CNG2-G-356-80-20B	356	80	1020	62	20
14	CNG2-G-356-90-20B	356	90	1146	74	20
15	CNG2-G-356-100-20B	356	100	1256	82	20
16	CNG2-G-356-110-20B	356	110	1366	89	20
17	CNG2-G-356-120-20B	356	120	1476	96	20
18	CNG2-G-356-200-20B	356	200	2356	155	20
19	CNG2-G-406-80-20B	406	80	840	76	20
20	CNG2-G-406-90-20B	406	90	925	85	20
21	CNG2-G-406-100-20B	406	100	1020	88	20
22	CNG2-G-406-110-20B	406	110	1090	90	20
23	CNG2-G-406-120-20B	406	120	1170	97	20
