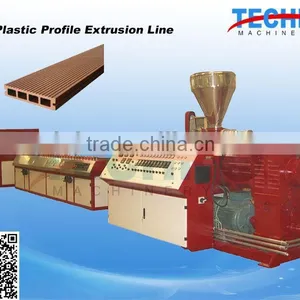

Wood Plastic Production Machine/WPC Board Production Machine Line
- 5 Set / Sets per Month
- Shanghai
- T/T
-
Wood Plastic Profile Extruding Machine (PE/PVC and Wood Powder Composite)
-
PP PE PVC Wood Plastic Profile Making Machine to Make Floor Fence Furniture
-
WPC Wood Plastic Composite Profile Production Machine
-
PVC WPC Wall Board Production Line
-
WPC Wood Plastic Composite Wall Panel Extrusion Machine
-
WPC Tile WPC Fence Material Garden Ornaments Wood Plastic Machine
Product Details
| Condition: | New | Application: | Profile | Plastic Processed: | PVC |
| Screw Design: | Double-screw | Automatic Grade: | High Automation | Place of Origin: | Jiangsu, China |
| Brand Name: | Techno | Model Number: | TECWPC | Voltage: | 220-480V |
| Power(W): | 20-220KW | Dimension(L*W*H): | L24000*W1800*H2200mm | Weight: | 20000KGS |
| Certification: | CE/ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Wood Plastic Production Machine/WPC Board Production Machine Line
Product Processing Flow
Raw material+Wood powder+Additive → Mixing → Granules → Conical twin screw extruder → Extrusion mould → Calibrator → Spray cooling → Cutter → Rack → Finished product inspecting and packing
Combination of Wood-Plastic
Thermoplastic-HDPE,LDPE,PP,PVC
Wood Flour-20-60 mesh
Lubricants, Pigments, Coupling agents, other additives
Features of Wood Plastic Production Machine/WPC Board Production Machine Line
WPC profile production line uses specially designed screw and controlling system ensure excellent plasticization and stable extruding.
This WPC profile extrusion line is mainly used in WPC (PVC or PE ) floor, WPC auxiliary profile for the decorative door and small profiles.Chaging the moulds,this wood plastic profile production line can manufacture many different kinds of profiles according to your requrest.
The new wood plastic composite functions same as natural wood,but with better performance.Resistant to water,corrosion and mildew.WPC is a very promising and sustainable green material to achieve durability without using toxic chemicals.Ideal for applications in high moisture environments.Recyclable to meet environmental protection requirements.
Technical Parameters of Wood Plastic Production Machine/WPC Board Production Machine Line
Extruder model | SJZ55/110M | SJZ65/132M | SJZ80/156M | SJZ92/188M | |||
Main motor Power (Kw) | 22 | 37 | 55 | 110 | |||
Auxiliary Equipment | YF240S | YF240A | YF300A | YF600 | YF900 | YF1200 | |
Production Width (mm) | Max240 | Max240 | Max300 | Max600 | Max900 | Max1200 | |
Vacuum Pump(Kw) | 2*5.5 | 4*5.5 | 4*5.5 | 4*5.5 | 1*7.5 2*11 | 1*7.5 2*11 | |
Water Pump(Kw) | 1.5 | 4 | 4 | 7.5 | 7.5 | 7.5 | |
Hauling Speed | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 | 0-2.5 | |
Auxiliary Equipment Power | 22 | 35 | 35 | 44 | 52 | 62 | |
Output(kg/h) | 70 | 120 | 120 | 180 | 400 | 400 | |
Twin Screw Extruder of Wood Plastic Production Machine/WPC Board Production Machine Line
Calibrating Table of Wood Plastic Production Machine/WPC Board Production Machine Line
Cutter of Wood Plastic Production Machine/WPC Board Production Machine Line
Tilting Stacker of Wood Plastic Production Machine/WPC Board Production Machine Line
Standard Export Seaworthy Packing Wood Plastic Production Machine/WPC Board Production Machine Line
a. Engineers available to service machinery overseas
b. Guarantee Period: 12 Months
c. During this guarantee period,TECHNO will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations,TECHNO will provide the buyer spare parts at cost price.
Zhangjiagang Techno Machinery Co.,Ltd. is specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
Our main machines include the following: 1)plastic pipes production line 2)plastic profiles production line 3)plastic sheets production line 4)plastic pellets production line 5)plastic mixers 6)plastic pulverizer 7)tire recycling machinery ...........
Term of Payment
a. L/C
b. T/T (30% as advance payment by T/T after signing contract, 70% of total will be paid by T/T before delivery)
Contact Us
- Zhangjiagang Techno Machinery Co., Ltd.
- Contact nameIven Koo Chat Now
- Phone86-512-56795381
- AddressRoom 307, 3rd Floor, P Building, No. 3, Zhenxing Middle Road
