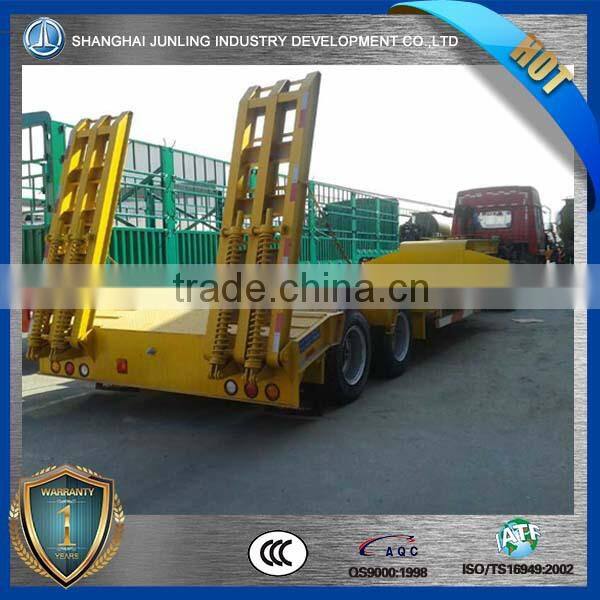

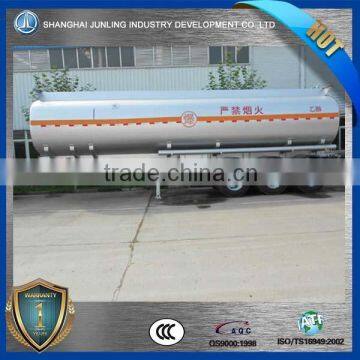

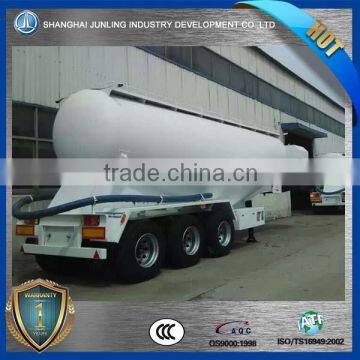

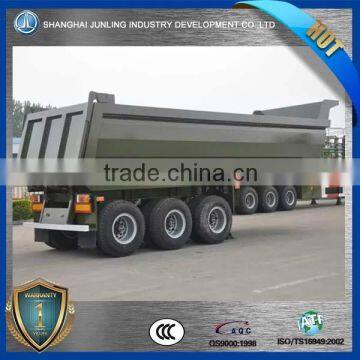

All Kinds of Truck Trailer With Tractor Truck for Sale/refrigerated Truck Trailer/machine Trailer

Specifications

Tare Weight

About 8.5T-13T

Dimension

13000mm*2500mm-3500mm*1650mm (Size can be choose freely)

Loading Capacity

40T-100T

Axle

13T/16T, FUWA/BPW/Huajing Brand

Rim

8.5-20 13PCS or other sizes

Tire

12R20 13 PCS or other sizes ,Triangle/Double Coin

Suspension

Mechanical suspension (Germany Type or America Type) or Air suspension(China brand or BPW brand)

Spring leaf

90(W)mm*13(Thickness)mm*10 Layer (especial for exporting market )

King pin

JOST brand 2.0 or 3.5 inch bolts type or Welding type

Support leg

JOST brand D200T or China brand 28Tons (Double speed)

Main beam

Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm,

down plate is 16mm-25mm ; Material is Q345B Steel .

Side beam

16mm-25mm channel steel ( Material is Q235steel ).

Bottom Platform

5mm thickness diamond steel plate or can be optional

Ladder

Manual type or Hydraulic type

Gooseneck

For choose

Brake chamber

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 45L air tanks

ABS

Optional

Valve

WABCO valve

Light

LED light (Special for export market)

Voltage

24V

Receptacle

7 ways (7 wire harness)

Tool box

One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Shipping Terms:

By bulk cargo carrier, RORO or 40HQ container.
