Automatic Bag Sealing Machine YF-130

Specifications

1. flat pouch ,3&4 side seal
2. excellent performance



I. Company Profile



Shanghai Uvanpack Machinery Co., Ltd. is an enterprise that specializes in the design and sales of horizontal automatic packaging machines and fully automatic filling machines.

Our company adopts European advanced packaging design concept and technology based on the market demands of diversified product packaging and varied packaging range.



II. Features



1. Versatility strong, one machine can be realized powder, liquid, granules, paste different types of

packaging materials.

2. Mainframe Frequency Conversion System: Imported AC motor and frequency conversion, stable and reliable operation; low speed and large torque ensure excellent performance even under sharp fluctuations of load.

3. Servo Blanking System: Panasonic servo motor controls rotation of blanking bolt directly by pulse number; stable and reliable performance,convenience of regulation.

4. Package Making System: The package making and sealing and filling systems are independent to each other in this system. The two systems are linked and coordinated by mechanical coupling and programmable logic controller (PLC). Therefore, the system is suitable for a variety of products and sizes of package.

5. Finished Product Sealing System: Fully automatic production facility that finishes package making, metering, filling, sealing and other packaging processes by heat-sealing packaging material (polyethylene membrane, multilayer composite membrane etc.). The package shall be three-side or four-side sealed flat package. Fillers of different types may package a variety of products.

6. Integrated Control System: It is composed of PLC, frequency converter etc., featuring a high level of integration, strong control capabilities and high reliability of operation. Touch screen technology eases and facilities operation. The optoelectric transducer,encoder, proximity switch etc. are all equipped with imported and advanced sensing elements, so the mechanical and electricalintegration of the entire frame is embodied perfectly.



III. Parameter



Model Pouch Size (Min) Pouch Size (Max) Capacity Volume Filler Pouch Type Optional YF-130 60mm×80mm 130mm×180mm 40-60ppm 160ml 1 Flat Pouch Zipper, Hanging hole Power:3.5kw Power supply: 80V, 3 phase, 50Hz Air pressure: .6Mpa Air Consume:400 NL/min Film rool Diameter:Max.600mm Film inner core: 76mm weight:800kg Dimension: 2850mm(L)×940mm(W)×1400(H)mm

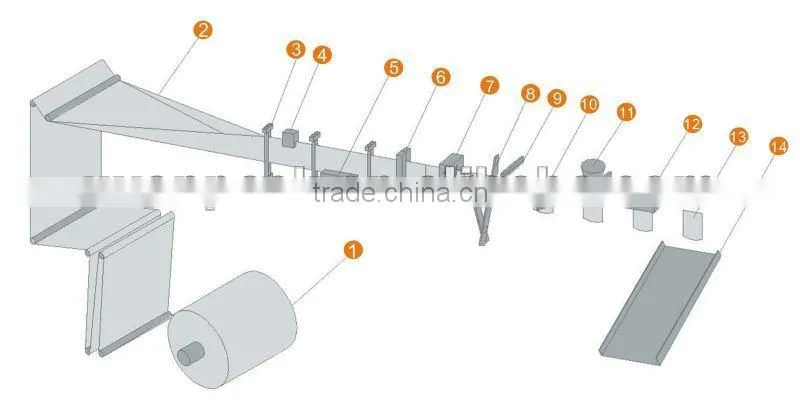

IV. Packaging Process





V. Manufacture Procedure
