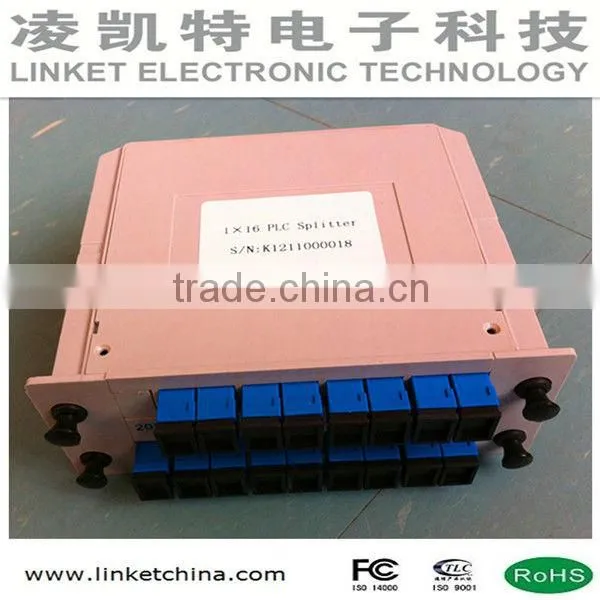

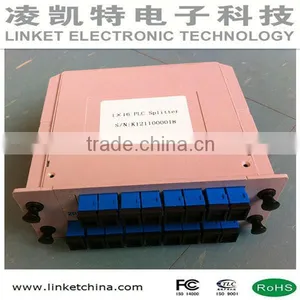

1*16 Optical PLC Splitter for FTTH/GPON/EPON Network

FOB Price

USD $7 - $86 / Piece

2 Pieces(Min.Order)

Supply Ability 3500 Piece / Pieces per Month
Port Shanghai or Shenzheng
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	LINKET
Model Number	1*16 PLC Splitter Slot Box

Product Description

Specifications

1 Low insertion loss, Low PDL and High reliability
2 High return loss and Good repeatability
3 Wide wavelength range

1 Description

Planar Light wave Circuit (PLC Splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and excellent channel-to-channel uniformity. As a result, it is widely used in PON networks to realize optical signal power splitting.

2 Applications:

---LAN, WAN and Metro Networks

---FTTH project & FTTX Deployments

---CATV System

---GPON, EPON

--- Fiber Optic Test Equipment

---Data-base Transmit Broadband Net

3 Technical Specs for PLC Splitter with Connector

Item	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Fiber Type	G.657.A
Working Wavelength	1260nm~1650nm
Max. Insertion Loss (dB)	≤4.1	≤7.4	≤10.5	≤13.8	≤17.1	≤20.4	≤23.8
Uniformity (dB)	≤0.8	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
PDL (dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Wavelength Dependent Loss (dB)	≤0.8	≤0.8	≤0.8	≤1.0	≤1.0	≤1.0	≤1.2
Return Loss (dB)	≥50	≥50	≥50	≥50	≥50	≥50	≥50
Directivity (dB)	≥55	≥55	≥55	≥55	≥55	≥55	≥55

Item	2x2	2x4	2x8	2x16	2x32	2x64	2x128
Fiber Type	G.657.A
Working Wavelength	1260nm~1650nm
Max. Insertion Loss (dB)	≤4.4	≤7.7	≤10.8	≤14.1	≤17.4	≤20.7	≤24.1
Uniformity (dB)	≤0.8	≤1.0	≤1.0	≤1.5	≤2.0	≤2.5	≤2.5
PDL (dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Wavelength Dependent Loss (dB)	≤0.8	≤0.8	≤0.8	≤1.0	≤1.0	≤1.0	≤1.2
Return Loss (dB)	≥50	≥50	≥50	≥50	≥50	≥50	≥50
Directivity (dB)	≥55	≥55	≥55	≥55	≥55	≥55	≥55

Note: The above parameter is for Splitter with connector. If w/o connector, insertion loss will reduce by 0.2dB.

4 Encapsulation Size for PLC Splitter Slot Box

Item	Type of Connector	LengthWidthHeight (mm)
1x2	SC/LC	30218025
1x4	SC/LC	30218025
1x8	SC/LC	30218025
1x16	SC/LC	30218025
1x32	SC	30218050
1x32	LC	30218025
1x64	LC	30218050
1x128	LC	302180100
2x2	SC/LC	30218025
2x4	SC/LC	30218025
2x8	SC/LC	30218025
2x16	SC/LC	30218025
2x32	SC	30218050
2x32	LC	30218025
2x64	LC	30218050
2x128	LC	302180100

5 ISO 9001 Certificate and TLC Certificate for PLC Splitter

6 Workshop Overview
