Home > Products > PLC Splitter > 1*64 Optical PLC Splitter

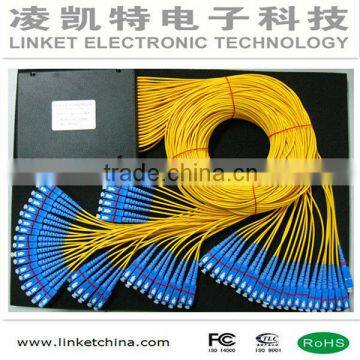

1*64 Optical PLC Splitter
- 18000 Piece / Pieces per Month
- Shanghai or Shenzheng
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | LINKET | Model Number: | 1*64 Optical PLC Splitter |
Product Description
----- Our customers: FiberHome, Fujikura, HUAMAI, KEXIN, FOCI, Sunsea, ZTT, HTGD...
----- Largest PLC Splitter Manufacturer in China: 18Kpcs/day, 40% market share
----- Most Professional on Key Technology: Wafer Dicing and Coupling
----- Import wafer only from South Korea and Reliable relationship with wafer suppliers
----- Direct Factory Price
1. Features of 1*64 Optical PLC Splitter
-Low insertion loss, Low PDL and High reliability
-High return loss and Good repeatability
-Wide wavelength range
-Excellent channel-to-channel uniformity
2. Applications of 1*64 Optical PLC Splitter
-LAN,WAN and Metro Networks
-FTTH project & FTTX Deployments
-CATV System
-GPON,EPON
-Fiber Optic Test Equipment
-Data-base Transmit Broadband Net
3.Technical Specs for 1*64 Optical PLC Splitter
Item | 1x64 |
Fiber Type | G.657.A |
Working Wavelength | 1260nm~1650nm |
Standard Insertion Loss(dB) | ≤20.8 |
P-Grade Insertion Loss(dB) | ≤20.4 |
Uniformity(dB) | ≤2.0 |
PDL(dB) | ≤0.4 |
Wavelength Dependent Loss(dB) | ≤2.0 |
Return Loss(dB) | ≥50 |
Directivity(dB) | ≥55 |
Operating Temp.Gange | -40°C~+85°C |
4. Encapsulation Size for 1*64 Optical PLC Splitter
Item | 1x64 |
Length*Width*Height(mm) | 120x80x18 |
Input | 2.0/3.0mm |
Output | 2.0/3.0mm |
Cable Length | 1m,1.5m,can be customized |
5.Different Models of Optical PLC Splitter
6.Other Products
7.Ordering Information
2. Our Advantage- Integrated Total Chain, Direct Factory Price
4. Workshop Overview of 1*64 Optical PLC Splitter
