Home > Products > 24 solar module > 160W high quality pv modules

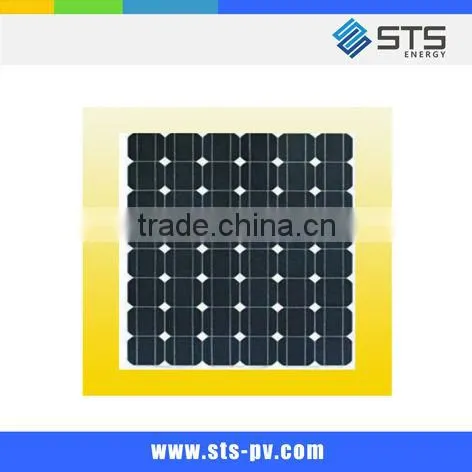

160W high quality pv modules
- 10000 Kilowatt / Kilowatts per Month
- Shanghai
- T/T Credit Card
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | STS | Model Number: | STS-6M-160P-48 |
| Material: | Polycrystalline Silicon | Size: | 1326*990*40mm | Number of Cells: | 48 |
| Max. Power: | 160W |
Product Description
160W high quality pv modules
Efficiency 160W pv modules
1. Low voltage-temperature coefficient allows higher power output at high-temperature condition.
2. High efficient, high reliable solar cells ensure our product output stability.
Benefits of pv modules
1. Manufactured in an ISO9001:2008 certified plant
2. High efficiency, high safety, high reliability
3. Output power tolerance of +/-3%
Warranty
1. 5-years limited warranty on materials and workmanship
2. 25-years limited warranty on power output: 10 years/90%, 25 years/80%
Specifications of pv modules
Model Type | STS-6M-160P-48 |
Peak power | 160W |
Cell type | Poly Crystalline Silicon,156*156mm |
Number of cells | 48 cells in series |
Weight | 0.45kg |
Dimensions | 1326*990*40 mm |
Maximum power voltage(Vmp) | 23.1V |
Maximum power current(Imp) | 6.96A |
Open circuit voltage(Voc) | 29.3V |
Short circuit current(Isc) | 7.66A |
Maximum system voltage | DC 1000V |
Temp.Coeff.of Isc(TK Isc) | +0.04%/°C |
Temp.Coeff.of Voc(TK Voc) | -0.30%/°C |
Temp.Coeff.of Pmax(TK Pmax) | -0.44%/°C |
Normal Operating Cell Temperature | 45±2°c |
Carton box, loaded on pallet or wooden case.
