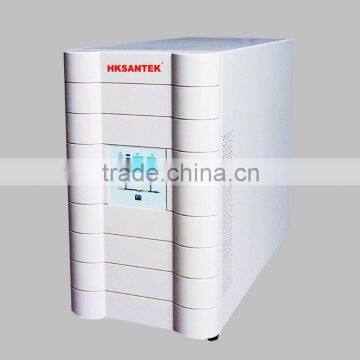

On Line Ups 1-3KVA

Name: On Line Ups 1-3KVA
Brand: HKSANTEK
Availability: InStock

FOB Price

USD $80 - $200 / Set

10 Sets(Min.Order)

Supply Ability 20000 Set / Sets per Month
Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	HKSANTEK
Model Number	BS	Phase	Single Phase
Protection	Overvoltage	Weight	14-30KGS
Output Voltage	110V/220VAC ± 2%	Type	On-line
Application	Telecommunications

Product Description

Specifications

ON LINE UPS
True online UPS
IGBT technology
Overload and short circuit protection
LED/LCD status display

UPS

Key Features

True on-line double conversion technology with advanced microprocessor control
Wide input voltage range
Zero transfer time
Protection against all type of power problems
Self test while start of the UPS
Site wiring fault warning
On-battery power-on function
Smart RS232 communication interface
Intelligent slot available
Sealed lead-acid, maintenance free battery
No add-on CNTL unit required for parallel connection
Low initial investment and flexible for future expansion
Highest reliability and maximum performance for power sharing and redundancy
Equipped with Maintenance Bypass Switch

Technical Specifications

Product Series		CASTLE
Model		BS1K	BS2K	BS3K
Rated Power	VA/W	1kVA / 0.7kW	2kVA / 1.4kW	3kVA / 2.1kW
Input	Nominal Voltage	110V/220VAC
	Voltage Range	60V~136V/115 ~ 300VAC
	Frequency Range	46~54Hz(default), user adjustable within 40~60Hz
	Power Factor	0.97
	Connection	IEC320-10A inlet		IEC320-16A inlet
Output	Voltage	110V/220VAC ± 2%
	Frequency	46~54Hz or 50Hz ± 0.2Hz (Line mode) 50Hz ± 0.2Hz ( Battery mode)
	Waveform	Sine Wave
	Distortion	3%	4%
	Overload Capability	108%~150% for 30 sec., ³150% for 300 ms
	Current Crest Ratio	3:1
	Connections	IEC320 * 4	IEC320 * 6	IEC320 * 3 and Terminal Block
Battery	Type	Sealed, Maintenance free, Lead-Acid
	Quantity	3 pieces	8 pieces
	Back-up Time (Full load)	5 min	9 min	5 min
	Recharge Time	5 hrs to 90% of capacity after full load discharge
Bypass	Automatic Transfer	on overload and UPS failure
	Before UPS Power-on	Default NO, user adjustable to YES
	Voltage Range	80~264VAC (Default), user adjustable within 80~286VAC
Transfer Time		0 ms; less than 4 ms from inverter to bypass and vice versa
LED Indicators	Status	Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault
Audible Alarm		Bypass, On battery mode, Battery low, Overload, Fault
Acoustic Noise	At 1 meter distance	45 dBA	50 dBA
Communications	DB-9 Port	RS-232 Serial Interface
	Intelligent Slot	Options: WebPower, AS400 Card or WinPower CMC
Network Surge Protection		RJ45 I/O port available for network or Fax/Modem
Environmental	Operating Temperature	0 ~ 40°C
	Operating Humidity	20 ~ 90% non-condensing
Weight	Net (Kg)	13	31.5	32
Dimensions	W x D x H (mm)	145 x 400 x 220	192 x 460 x 348
