Home > Products > Contactors > Salzer Old Type SALC1-D6511 Reversing AC Contactor

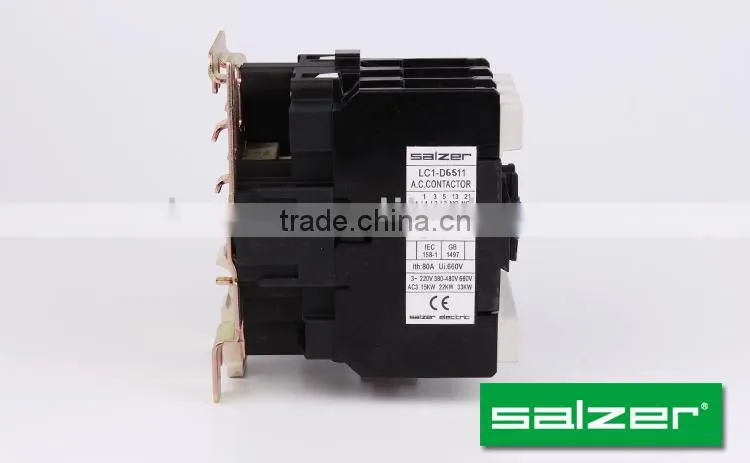

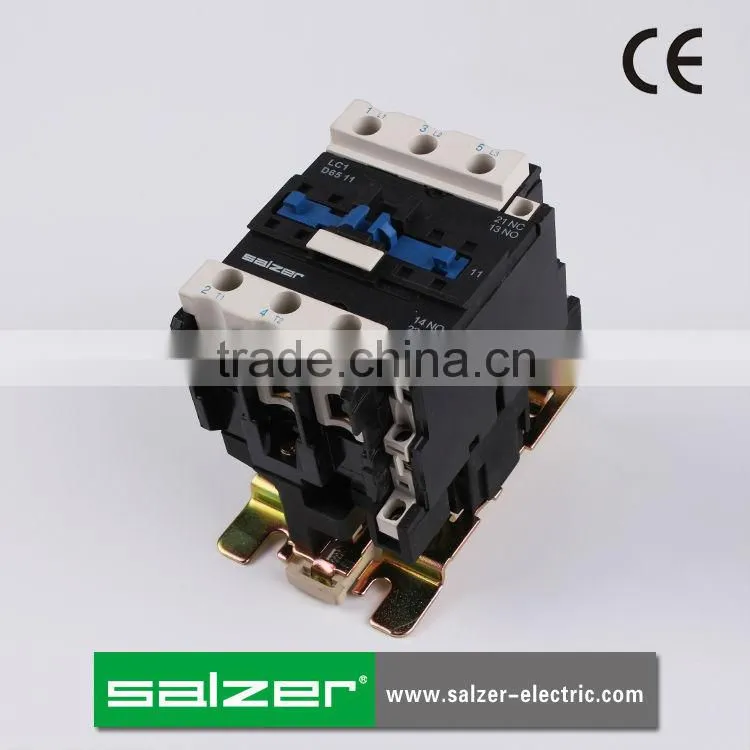

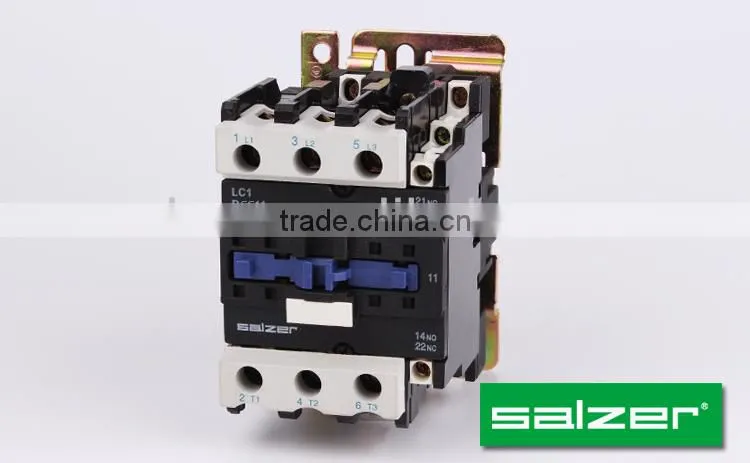

Salzer Old Type SALC1-D6511 Reversing AC Contactor
- 10000 Piece / Pieces per Month
- Ningbo Shanghai
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | SALZER | Model Number: | SALC1-D6511 |
| Electricity Type: | AC | Number of Pole: | Other, 3p+NC+NO | Phase: | 3 |
| Main Circuit Rating Voltage: | Other, 24VAC - 415VAC | Main Circuit Rating Current: | Other, 65A |
Product Description
Salzer Old Type SALC1-D6511 Reversing AC Contactor
Application
SALC1-D series AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current 95A. For making, breaking, frequent starting & controlling the AC motor, combined with the auxiliary contact block, air delayer & machine-interlocking device etc., it is combined into the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 947, GB 14048.1 & G1314048.40.
NIHA
Specifications
| Type | SALC1-D09 | SALC1-D12 | SALC1-D18 | SALC1-D25 | SALC1-D32 | SALC1-D40 | SALC1-D50 | SALC1-D65 | SALC1-D80 | SALC1-D95 | |
Rated working current(A) | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
AC3 capacity of phase 3 squirrel-cage motor AC3(KW) | 220V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 | |
| 440V | 4 | 5.5 | 9 | 11 | 15 | 22 | 30 | 37 | 45 | 45 | |
| 660V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 | |
| Rated heat current(A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 | |
