Salzer AC Cam Switch (UL File No.E236199, TUV and CE Approved)

Specifications

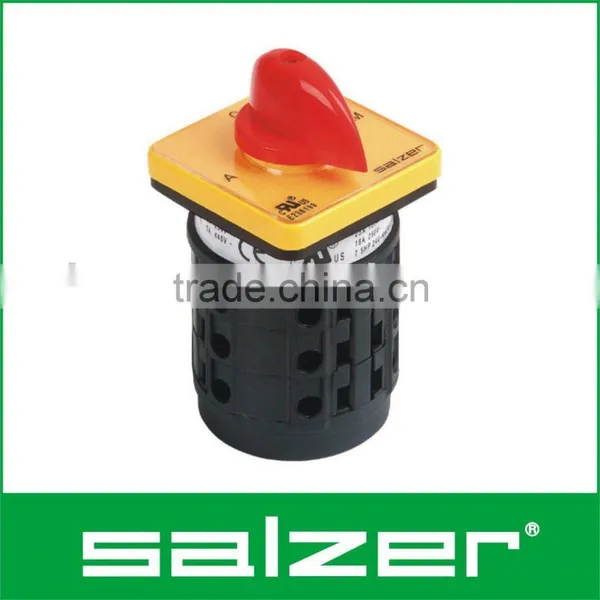

Salzer brand A-O-M change over switch, Rotary Switch/Cam Switch,Selector Switch 16A, IP20 standard, finger protection

Salzer brand A-O-M change over switch, Rotary Switch/Cam Switch,Selector Switch  16A, IP20 standard, finger protection.

Features:
1) Specifications:
a) Rating (TUV): 440V / 18A (AC-21), 13A (AC-23), 16A (AC-3), 5A (AC-15)
b) Rating (TUV): 250V / 10A (AC-15)
c) Rating (UL): 25A / 125V, 16A / 250V, 7.5HP / 240 - 440V, 3HP / 120 -
240V (single phase)
d) Endurance: 5E4
e) Short circuit current: 5KA
2) IP20 standard
3) Widely used to change position of ammeter and voltmeter to control the
direction of motor and other circuits.
4) The switches have 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 positions
5) 1, 2, 3, 4, 5, 6 stage with many different panels and buttons:
a) Ammeter rotary switch: OFF-R-Y-B, OFF-R-S-T
b) Voltmeter rotary switch: TR-ST-RS-0-RN-SN-TN, BR-YB-RY-OFF-RN-YN-BN
c) Off-on rotary switch
d) A-O-M rotary switch
e) FOR-OFF-REV rotary switch
f) Delta start rotary switch
g) Multistep switches:
0-1-2
0-1-2-3
0-1-2-3-4
0-1-2-3-4-5
0-1-2-3-4-5-6
0-1-2-3-4-5-6-7
0-1-2-3-4-5-6-7-8
0-1-2-3-4-5-6-7-8-9
0-1-2-3-4-5-6-7-8-9-10
0-1-2-3-4-5-6-7-8-9-10-11
1-2
1-2-3
1-2-3-4
1-2-3-4-5
1-2-3-4-5-6
1-2-3-4-5-6-7
1-2-3-4-5-6-7-8
1-2-3-4-5-6-7-8-9
1-2-3-4-5-6-7-8-9-10
1-2-3-4-5-6-7-8-9-10-11
1-2-3-4-5-6-7-8-9-10-11-12
