2015 Factory Price of CE,ISO Approved Mobile Diesel Generator With Three or Four Wheels

Specifications

Trailer generator
1.CE certificate
2.ISO9001:2008
3.75dB at the distance of 7 meters
4.with brake and tow system

Main Description

Fengde has 18 years' manufacturing experience, and our Diesel Generator Set by Volvo has the following features: reliability, durability, flexibility, energy-saving, environment protection, wonderful World wide after-service networks.

Genset Datasheet

Besides all performances of Silent Type Gen Sets, JG Silent Type Gen Sets with Trailer has

Advantages as follows:
Equipped armor plate spring of structure poised;
The trailer adopt the adjustable- height bolted towed rack, which is suitable for different height trailer;
Have mechanical underprops at each corner of the trailer. Inertial traveling brake, station brake & disengage emergency brake between trailer and tractor
With turning lamp, brake indicator light and standard BNC connector plugs for back lamp.

.Water-cooled

. 8hrs operation base tank

. Key start / auto start

. Sound-proof / weather-proof canopy is optional

. 380/220V AC, 50Hz ,50KW  0.8pF three-phase and four wires alternating current output

. Frequency: <3%

.Frequency at stable state: <0.5%

. Frequency deviation at instantaneous state: ≤+10%

. Frequency return time: ≤3s

. Voltage deviation at stable state: ≤±1%

. Voltage deviation at instantaneous state: ≤+20%

. Voltage return time: ≤4s

. Voltage modulation: ≤0.3%

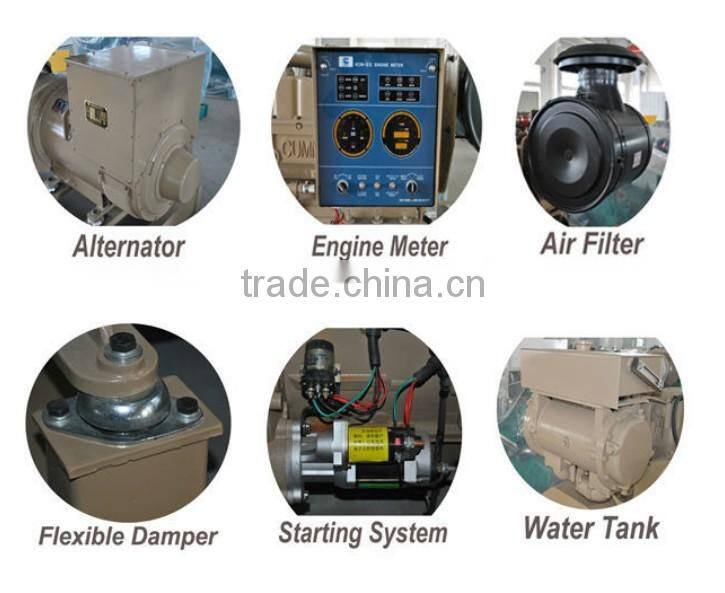

.Standard configuration of gensets:

  a) Engine: Ricardo series diesel engine

  b) Engine type: water-cooled, in line four-stoke, Humit cylinde liner, direct injection

  c) Alternator: Brushless alternator

. Control system:

  a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current

  b) Operation display:

  c) Unit voltage, tri-phase load current and frequency display

  d) Water temperature, oil pressure display

  e) Fuel level, fuel temperature display

   f) Audible and visual alarm lamps and buzzers

. Starting system: DC alternator is used to start engine

. Short circuit protection: MCCB air switch

. Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C

. Filter system: oil, fuel and air filter

. Accessories: exhaust elbow, bellow, muffler

. Supply standard collocation:

  a) Diesel engine with all accessories, 3 filter, electric systems

  b) Alternator

  c) Base fuel tank for more than 8 hours using

  d) Fan and water tank cooling system

  e) Flange connector

  f) 12 / 24V starting motor and charge engine

  g) Air cleaner, fuel cleaner, oil cleaner

  h) On-board control panel

  i) MCCB air conservation switch

  j) 12 / 24V starting accumulator and Battery line

 k) Set shock absorber

 l) High-efficient silencer

Supply Scope

Complete Diesel Generating Set including Volvo diesel engine, alternator, radiator, 8-10 hours running base fuel tank, standard control system, circuit breaker, muffler, absorber, filters, starting batteries, battery charger, ATS Control system (optional), Parallel control (optional), soundproof canopy (optional), testing report, user books and other accessories etc.

Our Service

Fengde provides a full line of brand new and high quality products. Each and every unit is strictly factory tested. Warranty is according to our standard conditions: 12 months or 1000 running hours, subject to the earlier one. And what’s more, Fdengde will provid life-span technical support and spare parts at manufacture prices.

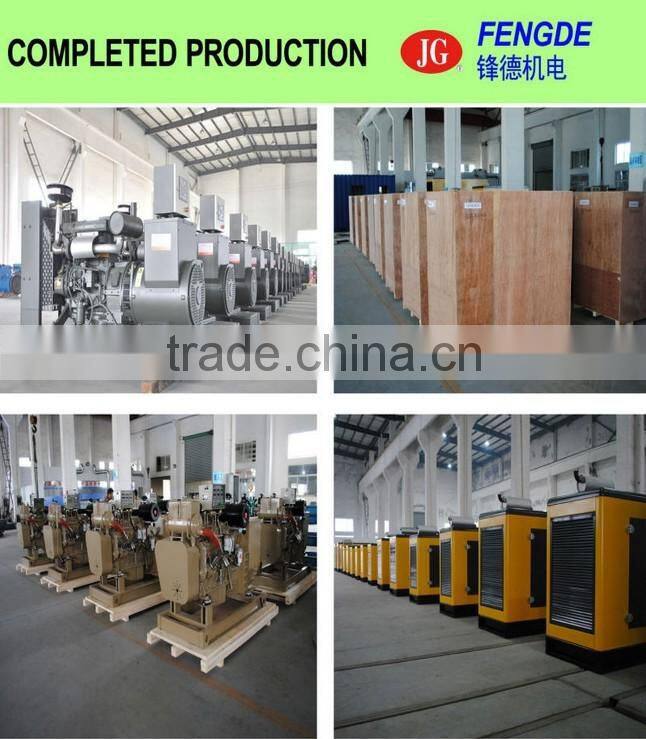

Products Showcase

Everything can be decided on the real situation.Please contact us for more information.
