20-3 lathe machine / swiss type cnc lathe
- 80 Set / Sets per Month
- Qingdao
- T/T
- 20-3 cnc automatic lathe
- high quality 1325 wood cutting engraving machine
- Fast speed and high accuracy1325 CNC Router Machine/cnc router machine Quality Choice
- Remax-1325 cnc wood engraving machine high configuration
- Remax-1325 cnc router machine 3kw spindle high quality can be customer made
- Remax-1325 cnc router woodworking machine
Product Details
Condition: | New | Type: | Turning Center | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 20mm | Place of Origin: | Shandong, China |
Brand Name: | Remax | Model Number: | 20-3 | Voltage: | 220V/380V |
Power(W): | 6KW, 6kw | Dimension(L*W*H): | 2150*1300*1700mm | Weight: | 1500kg |
Certification: | CE Certificate | After-sales Service Provided: | Engineers available to service machinery overseas |

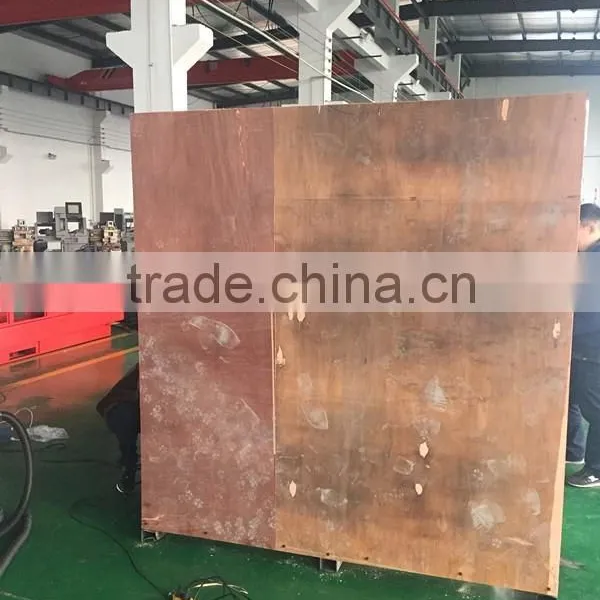

Packaging Details
veneer case
Product Description
20-3 lathe machine / swiss type cnc lathe
Application:
swiss cnc lathe used for making metal parts, like medical, instruments, cars etc.
Video:
work video: https://youtu.be/5PVOmHww6Nc
Technology parameters:
Main shaft | Through -hole dia. of main shaft (mm) | 20 |
Max machining bar (mm) | 20 | |
Guide sleeve | S20 | |
Height from center of main shaft to the floor (mm) | 975 | |
Unlimited graduation of main shaft |
| |
System | Operating system | SYNTEC 20B |
Main shaft motor (kw) | 3.0kw | |
Rotary speed of foundation base (rpm) | 1500 | |
Max rotary speed (rpm) | 6000 | |
Servo motor power of X/Y/Z shaft (kw) | 0.75 | |
X/Z shaft | Travel to shaft X(mm) | 40 |
Travel to shaft Z(mm) | 180 | |
X/Y/Z rapid feeding speed (G00) | 15/18/30/36m/min | |
Machine Accuracy | X/Y/Z repeated accuracy (mm) | 0.04 |
X/Z positioning accuracy | 0.05 | |
others | O.D . Tool number | 5 |
I.D.Tool number | 4 | |
Side milling tool number | 4 | |
O.D.Spec . of tool | 12 | |
I.D.Spec. of tool | ER11 | |
Side millings spec.of tool | ER11 *2/ER16 *2 | |
Outline dimension | 1900*1570*2040 | |
Total power(kw) | 6 | |
Net weight (kg) | About 1200 |

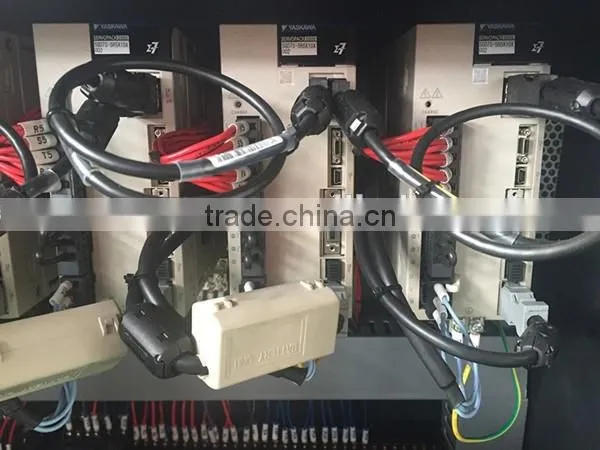

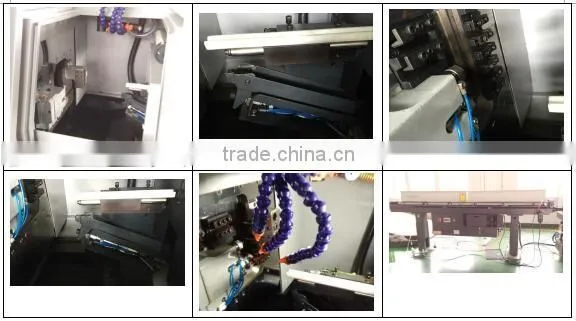

Spare parts:

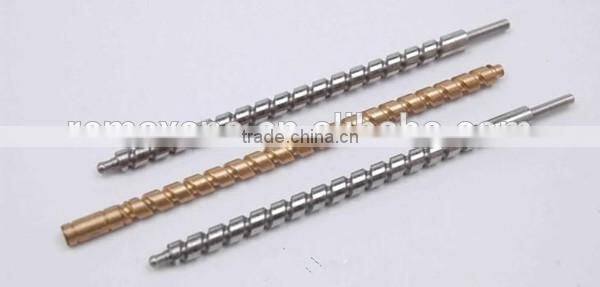

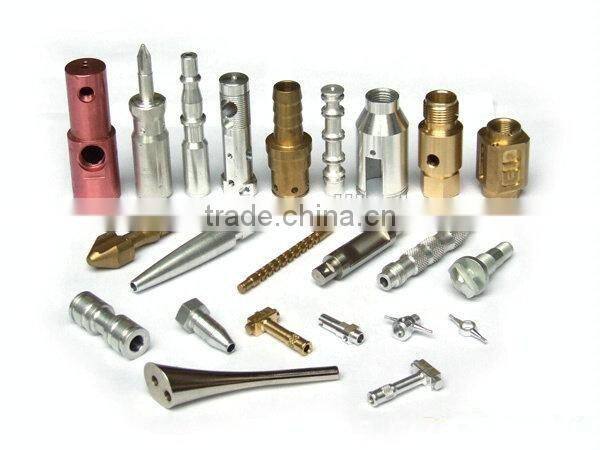

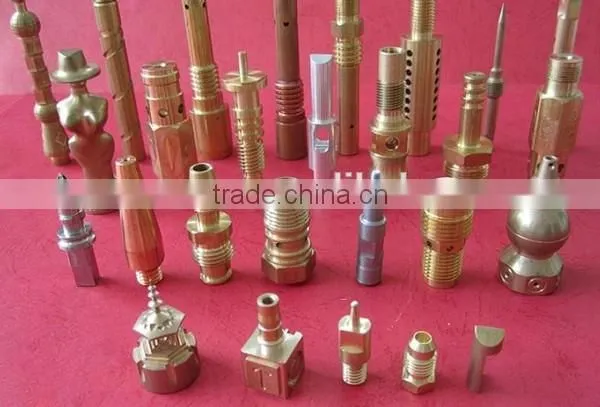

Samples:

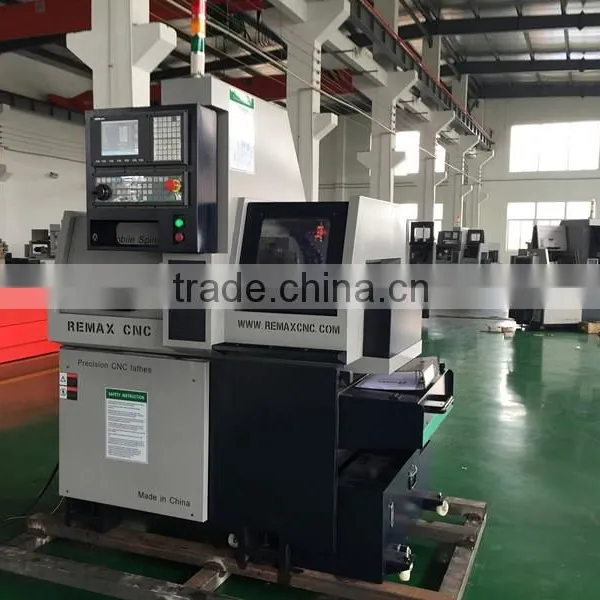

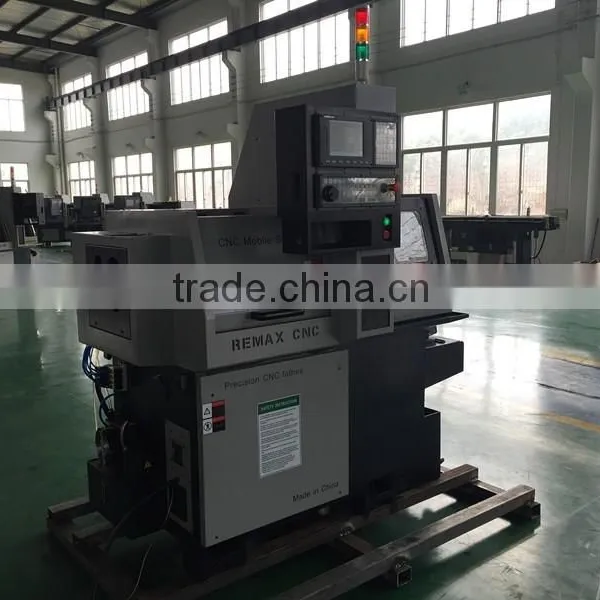

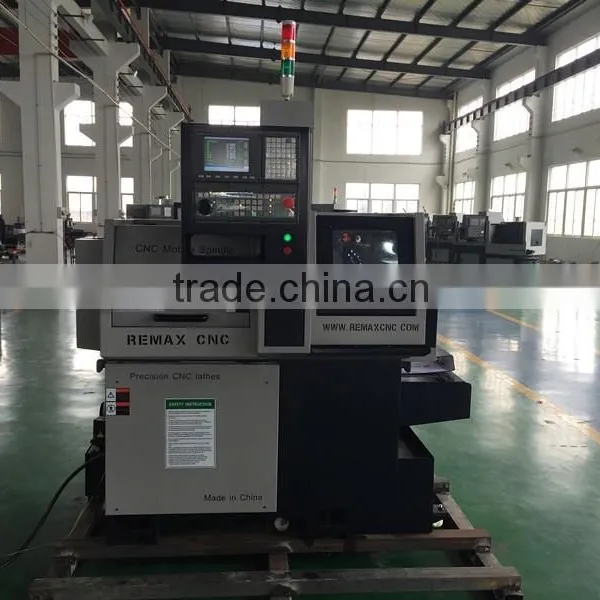

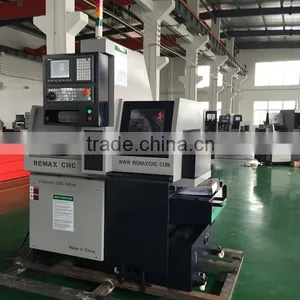

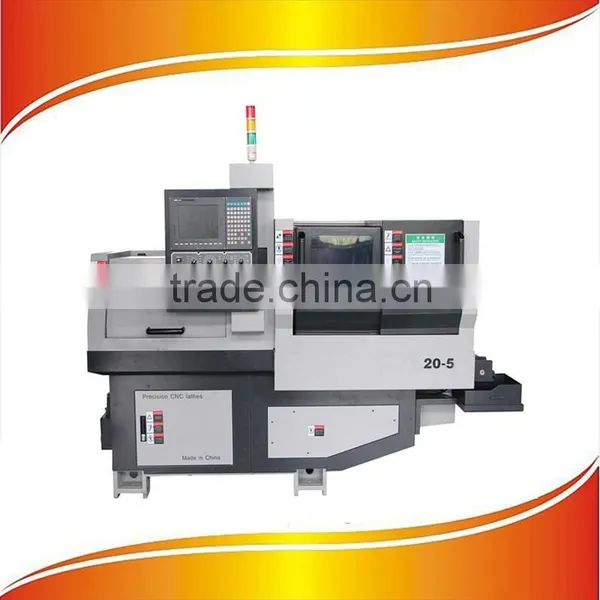

Machine picture:
CERTIFICATE:
our survice:
A Guarantee of Hot sale mini cnc router :
1.12 months for the whole machine.
2.Within 12 months under normal use and maintenance,
3.if something is wrong with machine, you will get spare part for free.;
4.Out of 12 months, you will get spare part at cost price.
5.You will also get technical support and service all the lifetime.
B After sales services:
1.Normal machine is properly adjusted before dispatch.
2.You will be able to use the machines immediately.
3.You will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consulting, technical support and service by
4.email/fax/tel and lifetime technical support.
FAQ:
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by email / skype/ phone /trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
6. Send your order by air or by sea.
E 10 good reasons why you should buy from us?
1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEERS
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO, BV certificate.
7 machine and spindle warranty 1 year.
8 our engineer can go to your country to provide technical guidance
9 we have phone support in English, if you have any questions, you can call it, we can give you a best solution within 24 hours
10 fast delivery, save your time.
