Specifications
metal tube laser cutting machine1. 1500*3000mm cutting area
2. 500w fiber laser
3. cut 3mm stainless steel
4.CE

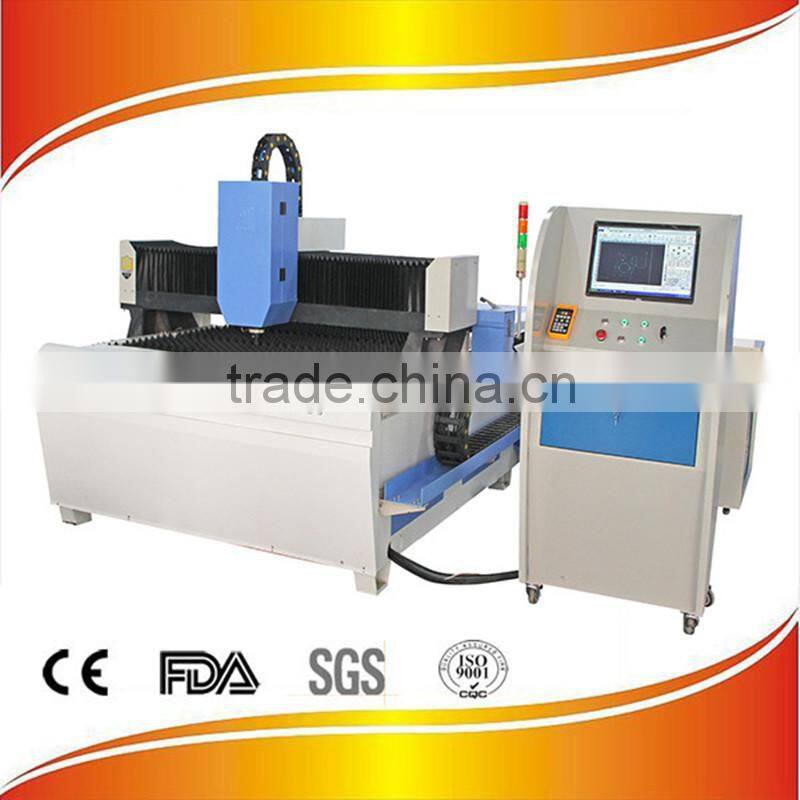

High efficiency 500 watts fiber laser cut equipment:
This laser machine's cutting area is 1300mm*2500mm. It can cut 3mm stainless steel, galvanized sheet, titanium plate and 4mm mild steel.
metal tube laser cutting machine
Machine parameters of metal tube laser cutting machine :
Model | 500w Fiber laser cutting machine |
Max. Working area | 1300mm*2500mm |
Cutting thickness | 0.5mm-3mm |
Laser Wavelength | 1080nm |
Rated Laser power | 500 watts |
X-axis and Y-axis Location accuracy | ±0.03mm |
X-axis and Y-axis repeat Location accuracy | ±0.02mm |
Min cutting Line Width | 0.02mm |
Max. cutting speed | 12m/min |
Driving system | Japan Panasonic servo motors |
Transmission way | Double TAIWAN HIWIN ball-screw |
Machine dimension | 4.0m*2.5m*1.7m |
Machine weigt | 3500kg |

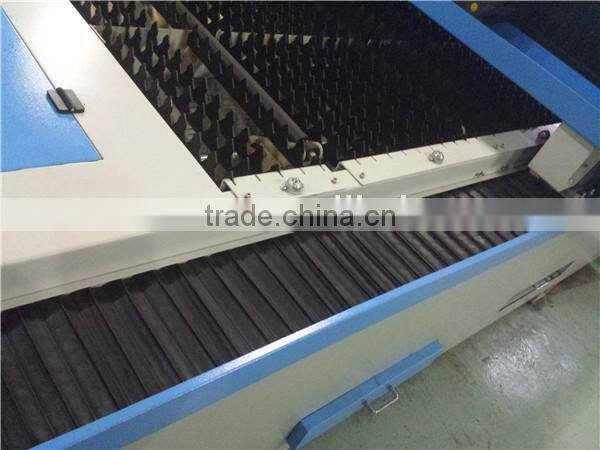

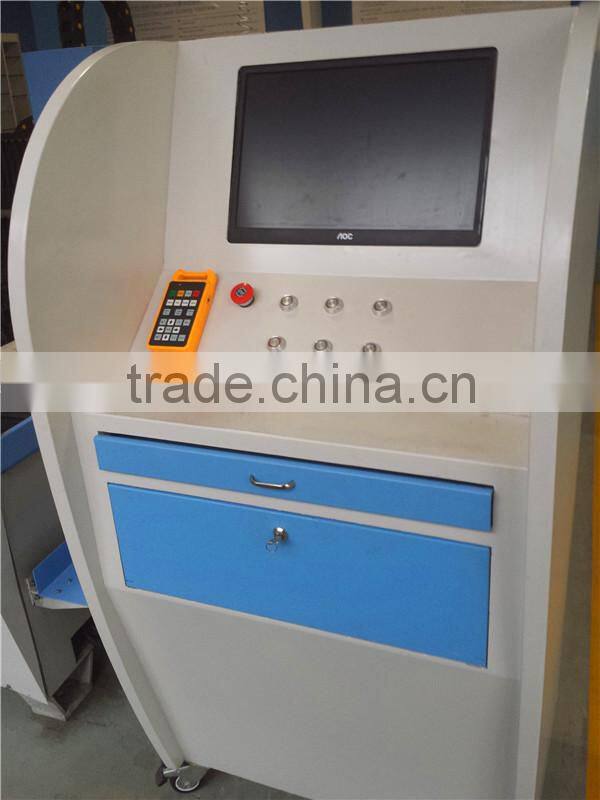

Machine details:

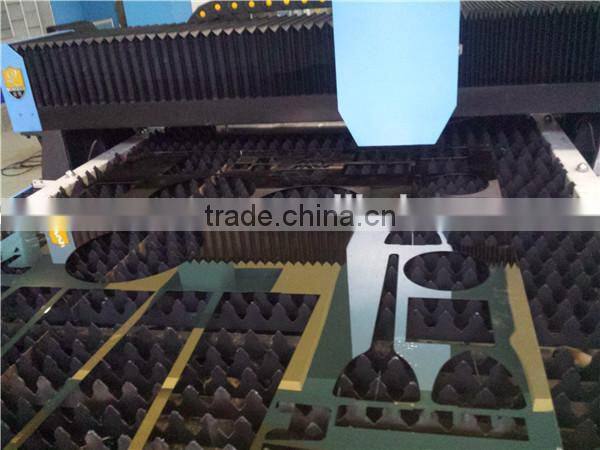

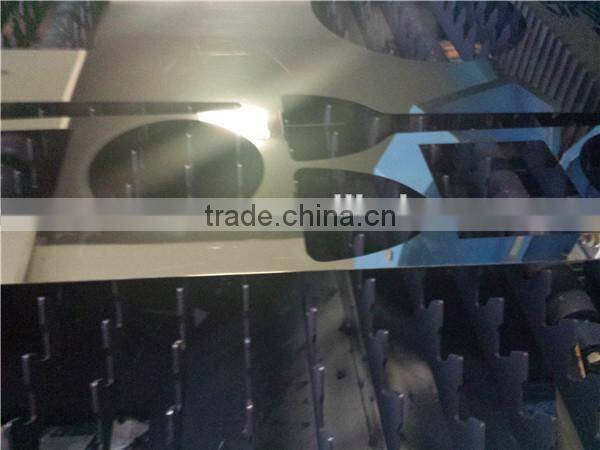

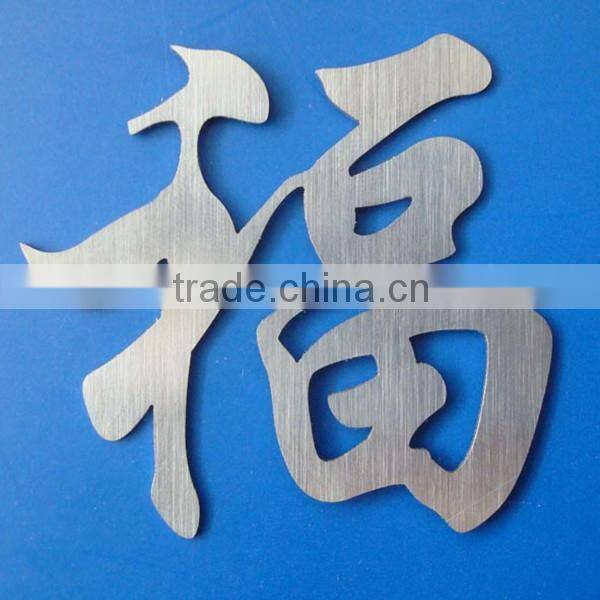

Cutting samples:
Features of fiber laser cutting machine:
1. Stable machine body structure: it adopts gantry structure and high-strength cast aluminum alloy X-Axis beam. So it improves the stable of cutting machine and the precision of working.
2. High-performance transmission system: high power Three Japan Panasonic servo motors and Double Taiwan HIWIN ball screw. X and Y axis are equipment with 1500 watts Panasonic servo motors and Z axis is 200 watts. Transmission system is used TAIWAN HIWIN ball-screw which is best in the field. These parts insure the cutting speed and high precision.
3. Advanced laser generator: fiber laser generator imported from UK GSI company with flexible optical path. This kind generator has long lifetime and stable laser power. GSI company has been working on laser device for many years and has a pretty good fame in the world.
4. Highly sensitive cutting head: this cutting machine equiped with original laser-mec cutting head imported from USA. LaserMech cutting head is of good quality and with dynamic focus system. So it can sure the high quality of cutting samples.
Fiber laser cutting machine and YAG or CO2 laser cutting machine:
Fiber laser cutting machine has a far exceed than YAG or CO2 laser machine. As the fiber laser can be more absorbed by the cutting metal, and the fiber laser power is pretty stable. Also the fiber laser machine consume less because of less mirrors and no consumables. Even the cooling water chiller is 1P compared with the YAG machine use 7P water cooling
Packages:
welcome to visit our factory , promise our machine quality and service !
