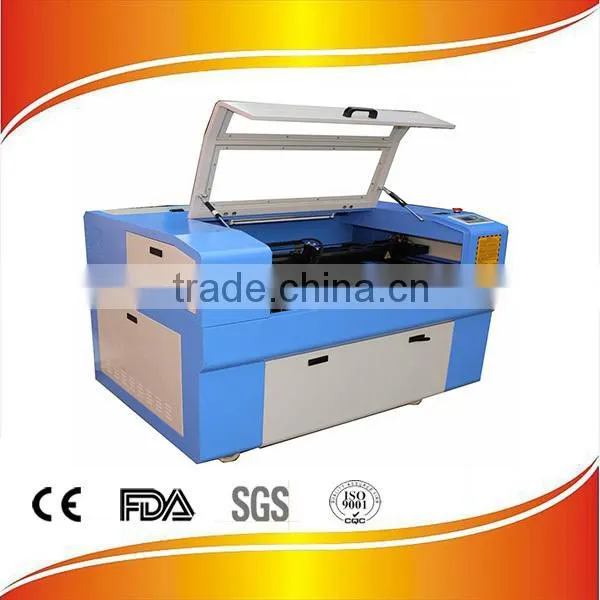

Different mobile phone screen protector laser cutting machine with good price

free fumigation standard plywood wooded case

Specifications

screen protector laser cutting machine
1.24''x35'' size
2.80w laser tube
3.knife/honeycomb table
4.Ruida controller

Different mobile phone screen protector laser cutting machine with good price



How Does It Works ?



Parameters:

Model	6090 good price laser cutter machine
Engraving and Cutting Area	600*900mm (24''x36'')
Tube type	80w CO2 sealed glass tube (100w/60w optional)
Laser wave	10.6um
Cooling	Pure water
Engraving Speed	0-20,000mm/min
Cutting Speed	0-10,000mm/min
Reposition Accuracy	±0.01mm
Minimum Character Size	English:1mm ; Arabic numbers:1mm
Resolution	4,000 dpi
File output mode	2.0 USB interface
Machine Power	<2,000W
Support Format and Compatible Software	PLT,DST,DXF,DWG.CDR, AI,  CorelDraw, AutoCAD, Photoshop
Working Environment Temperature	0-45°C
Drive system	Leashine Stepper motor and drivers
Control system and control software	DSP offline control system,Laser cutter 6.1
Exhaust smoke system	Big exhaust fan
Working Voltage	AC220V,50HZ/60HZ
Warranty time	1 year for machine (6 months for laser tube)
Package	standard plywood wooded case
Packing size	1450*1100*1200mm
Delivery time	5-8 working days after received the deposit



Machine Details:













Following Item are included:

1: Honeycomb Table and Aluminum table
2: Exhaust Fan,water pump,air pump
3: Air Assist with Compressor
4: Auto Focus
5: Red Dot Point

Optional Accessories:

1.Diameter 80mm rotary device:which is used to process cylindrical workpieces,such as wine cups,beer bottles etc.
2.Water Chiller:CW3000:Automatic heat radiation,which is used for less than 80w laser power(<80w),cool well laser tube and extend machine worklife.CW5000-forced cool the laser tube,applies for 80-130w.

3.Automatic Z Table (Vertical Z Travel of Table: 15” )



Applicable Industry:

1.Engraving beautiful patterns and words such as wood,bamboo.ivory,bone,leather,marble,shell.

2.Mainly used in large plastic character cutting,color plate engraving and cutting,sign engraving,

crystal engraving,trophy engraving,authorzation engraving etc.

3.Leather clothing processing industry:can engraving and cutting complex patterns on genuine synthetic  leather,woolens,clothing ,furnishing,glove,handbag,model and Aircraft Model,etc.

4.Model industry:production of construction sand table model and Aiacraft Model,etc.ABC plate cutting,MLB cutting.

5.Packing industry:Engraving and printing rubber plate,plastic plate,duble board,die cut paper,etc.



Applicable Material:

Cloth,leather,fur,acrylic,plexiglass,wooden board,plastic,rubber,bamboo,product,resin and other non-metal

Samples:

  Certificate:

Machine Package:





FAQ:



1.Question:This is the first time I use this kind of machine, is it easy to operate?

Our Answer:

There are english manual or teaching video that show how to use machine.If there is

still have any question, please contact us by e-mail / skype/ phone /trademanager online service

at any time.



2.Question :If machine have any problem after I receive it, how can I do ?

Our Answer:

Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.



3.Question: MOQ ?

Our Answer:

the minimum order is 1 set machine, if you order more one time, the price will be better.



4.Question:D How can I buy this machine from you?   ( Very easy and flexible !)

Our Answer:

1. Consult us about this product on line or by e-mail.

2. Negotiate and confirm the final price , shipping , payment methods and other terms.

3. Send you the proforma invoice and confirm your order.

4. Make the payment according to the method put on proforma invoice.

5. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

6. Send your order by air or by sea.



5.Question: good reasons why you should buy from us?

Our Answer:

1 we are a real factory offering products

2 free technical advice by QUALIFIED MECHANICAL ENGINEERS

3 company in business for many years

4 over 50 countries customers served!

5 buy direct saving your money!

6 all machine with CE, ISO, BV certificate.

7.Total machine for one year guarantee

8 our engineer can go to your country to provide technical guidance

9 fast delivery, save your time.



How about your guarantee&warranty service?

Gurantee&After-Sales Service

1.One year warranty under normal use and we supply maintenance for life for free.

2.24 hours technical support by phone,e-mail,SKYPE,MSN or Remote.

3.Free trainings to make sure you master the operation of laser cutting machine.

4.English operation manual,popular and easy to understand.



If you wanna learn more details about this kind of machine,pls contact me in time by email or skype,there are many working videos provided with you.Besides,we are seeking worldwide distributors and agents,the prices is competive from original factory!Welcome to vist our factory in China mainland at your free time.Thanks.
