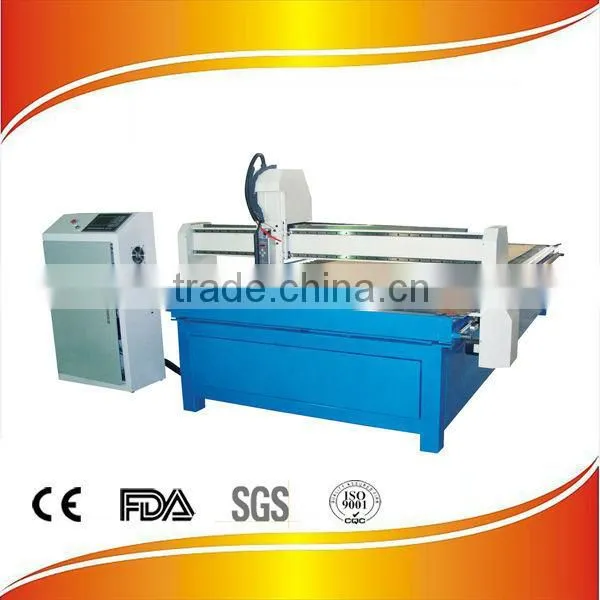

Remax-1325 Cheap CNC Portable Plasma Cutter Machine Price With Good Quality

Standard wood packing or according customer's requirement

Specifications

Portable Plasma Cutter
1.LGK plasma power
2.YAKO driver and 450B motor
3.PMI square rail
4.rack gear drive

Remax-1325 Cheap CNC Portable Plasma Cutter Machine Price With Good Quality





Machine parameter:

Model	Remax-1325
Effective Cutting Width (X axis)	1300mm
Effective Cutting Length (Y axis)	2500mm
Plasma power	LGK
Drive Mode	Bilateral-side
CNC system	Beijing STARFIRE CNC
Plasma cutting speed	50-6500 mm/min
Cutting torch lifting distance	150mm
Speed setting error	≤±5%
Max Idle running speed	12000mm/min
Torch height controller accuracy	≤±1.0mm
Longitudinal line accuracy	±0.2mm/10m
Motor and driver	stepper motor and YAKO driver
Gearbox	Hubei planet
Drive Method	Rack and square rails for X  Y Z axis
Moving Precision	0.01mm per step
Power Source	380V 50/60Hz
Height controller(plasma)	PHC330-Arc voltage height controller for plasma cutting
Plasma cutting thickness	1-32mm
Complete machine accuracy
(Subject to the right drawing)
Side length (Four sides)
1000mm x1000mm
Lineation speed,500-800mm/min
length of a side	±0.5mm
Diagonal error |AD-BC|	±0.5mm
Base point return error	±0.2mm
Intersection point error	±0.5mm
Lineation forward- reverse error	±0.2mm



Plasma cutter process:





Features:
1.All-welded structure, Y,X axis with rack and linear guide drive,Z axis with electric automatic lifting,

to assure cutting speed and quality.



2.Dual drive , stable performance .



3.The set-up is very simple, all kinds of CAD graphics can be read directly by our system trough U-disk.

The  software can be edict graphics automatically.



4.Collocated U-disk interface and cutting code auto converting software for CAD drawing ,

CAD drawing can be input  directly into the cutter through U-disk.



5.Tips for each operation is displayed at the screen at any moment ,

so operators can use our system without being trained or reading the instructions.



6.Collocated indicator lights for various hitches.

Hitch diagnosing is clear just at a glance and the maintenance is convenient and quick.



7.There are necessary keys for the movement control in the torch carriage ,

so the operator can easily move  the torch to the right spot.



8.With break point or interruption of power ,memory function.



Machine parts:

Our Services:



A Guarantee:



12 months for the whole machine.

Within 12 months under normal use and maintenance,

if something is wrong with machine, you will get spare part for free.;

 Out of 12 months, you will get spare part at cost price.

You will also get technical support and service all the lifetime.



B Technical support:



1, Technical support by phone, email or MSN/Skype 24 HOURS

2, Friendly English version manual and operation video CD disk

3, Engineer available to service machinery overseas



C After sales services:



Normal machine is properly adjusted before dispatch.

You will be able to use the machines immediately.

You will be able to get free training advice towards our machine in our factory. Youwill also get free suggestion and consulting, technical support and service by

email/fax/tel and lifetime technical support.



FAQ:

A This is the first time I use this kind of machine, is it easy to operate?



There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

B If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.

C MOQ ?

The minimum order is 1 set machine, if you order more one time, the price will be better.



D How can I buy this machine from you?   ( Very easy and flexible !)



1. Consult us about this product on line or by e-mail.

2. Negotiate and confirm the final price , shipping , payment methods and other terms.

3. Send you the proforma invoice and confirm your order.

4. Make the payment according to the method put on proforma invoice.

5. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

6. Send your order by air or by sea.



Sample:



Workshop:





Product show:



Shipping and Packaging:





          Thanks for you visiting our product of Remax!

If you have any questions or need any help, please contact me.
