Home > Products > Analog Camera > HP-630IR-K80S secure eye cctv cameras
HP-630IR-K80S secure eye cctv cameras
- 20000 Piece / Pieces per Month
- xiamen
- T/T L/C D/P D/A Credit Card
Product Details
| Place of Origin: | Fujian, China | Brand Name: | COOP sony ccd 520tvl cctv security outdoor camera | Model Number: | HP-630IR-K80S secure eye cctv cameras |
| Type: | Digital Camera | Style: | Box Camera | Sensor: | CCD |
| Technology: | NetWork | Special Features: | Waterproof / Weatherproof |
Product Description
cctv security camera , security cameras cctv
Features:
l Long Range Laser LED IR Bullet Camera
l 1/3” Sony Super HAD II CCD,630TVL
l 6-60mm Megapixel IRIS lens,12pcs Laser LEDS,IR Distance 60M
l D-WDR(Wide Dynamic Range),3D DNR(Digital Noise Reduction)
l HLC(High Light Compensation) IR Smart
l Slow Shutter(Sense-up),Motion Detection, Privacy Masking
l Second Video Test, Waterproof IP67
l Dynamic 3-Ax
Technical Specifications
Model NO | HP-630IR-K80S | ||
Functions |
| ||
General | CCD sensor | 1/3” Sony Super HAD II CCD,630TVL | |
Lens amount | 6-60mm Mega pixel IRIS lens | ||
Lens type | Vari-focal Lens (not c/cs amount) | ||
Effective pixels | NTSC:976(H)x494(V) (480K Pixels) PAL:976(H)x582(V) (570K Pixels) | ||
Signal systems | PAL/NTSC | ||
Synchronization | External/Internal | ||
Shutter Speed | PAL:1/50~1/100000/s;NTSC:1/60~1/100000/s | ||
S/N | More than 50dB(AGC OFF) | ||
Horizontal resolution | 700TVL(Color), 780(B/W) | ||
Low illumination | Color: 0.3Lux(F1.2,50IRE,AGC ON),D/N:0Lux(F1.2,50IRE,AGC ON,IR LEDs ON) | ||
D/N | D/N Auto Converter IR CUT filter Optional (with IR CUT function) | ||
D/N switching method | D/N controlled by CDS | ||
D/N switching time | 000~255 | ||
Camera Body | Size description | Magnificent design | |
DWS | Dual windows structure | ||
Bracket | CTB (Cable through bracket), 3-bracket(tilt, horizontal, pan) | ||
Body color | STD: Metal gray, Ivory optional | ||
Waterproof rating | IP66 | ||
OSD & Special functions | OSD menu | Yes, external adjustment | |
DNR | 3DNDR | ||
Sense up | Off/x2/x4/x6/x8/x16/x32/64/x128/x256 | ||
D-WDR | Yes | ||
HLC | Yes | ||
Gamma | Yes | ||
Privacy Masking | ON/OFF | ||
Motion Detection | Yes | ||
Color tint | Yes | ||
BLC | Yes | ||
Color adaptive | Yes | ||
Brightness | 0~255 | ||
White balance | AWB,ATW,MWB | ||
Mirror | ON/OFF | ||
Title settings | Yes | ||
Title location | Selectable | ||
IR LEDs | IR LEDs | 12PCS Laser LEDs | |
Smart IR | Yes | ||
Infrared wavelength | 850nm | ||
IR distance | 80m | ||
IR LEDs ON/OFF | CDS auto control | ||
Others(Approx.) | Video output | VBS 1.0 VPP(75ΩLoad) | |
Video output | BNC output | ||
DC Type | Power | MAX. DC12V 700mA[8.5W](With Heater: DC12V 1.3A[16W]) | |
Power supply | DC12V 1.0A (With Heater: DC12V 1.5A) | ||
Dual Type | Power | MAX. DC12V 700mA[8.5W](With Heater: DC12V 1.3A[15W]) | |
MAX.AC24V 650mA[16.0W](With Heater: AC24V 950mA[23W]) | |||
Power supply | DC12V 1.0A (With Heater: DC12V 1.5A) | ||
AC24V 1.0A (With Heater: AC24V 1.5A) | |||
Working temperature | -100C~+500C (With heater: -400C~+500C) | ||
Working humidity | 20~80% (Non-condensing) | ||
Storage temperature | -100C~+600C | ||
Storage humidity | 20~95%(Non-condensing) | ||

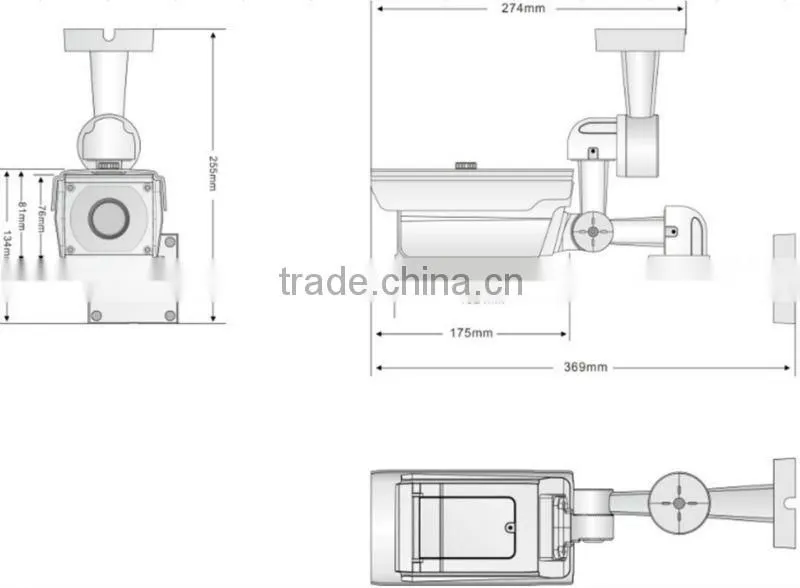

Camera Dimensions | 261mm(L)×83mm(W)×102mm(H) | ||
is Cable Built-in Bracket(Table Mount, Wall Mount, Ceiling Mount)
