Outdoor Security Smart Phone Hybrid Analog CCTV Camera System AHD Alarm Audio 1080P 4CH DVR System AHD

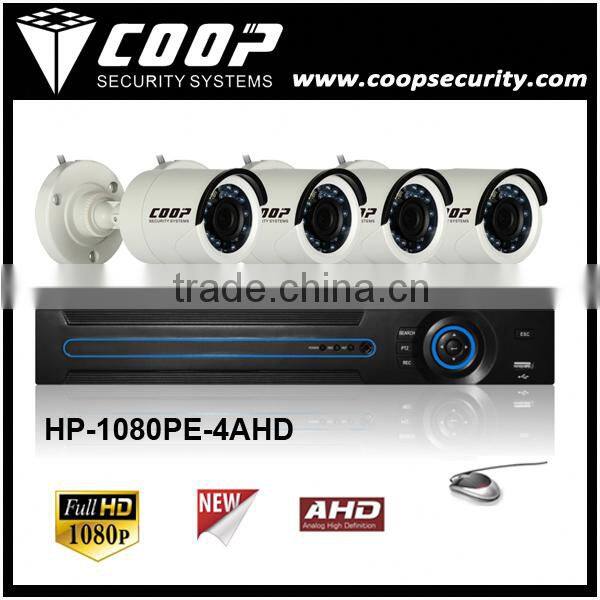

Outdoor Security Smart Phone Hybrid Analog CCTV Camera System AHD Alarm Audio 1080P 4CH DVR System AHD HP-1080PE-4AHD
1080P 4CH DVR System AHD Features:
- 4CH HD 1080P HD system
- 4pcs 1080P AHD cameras + 1080P Hybrid AHD DVR/NVR, support analog and network
- Smart Phone:iPhone,iPad,Android
- 4 Cameras with 1080P Real-time Preview
- H.264 Dual-stream Video Compression
- HDMI/VGA Simultaneous Video Output
- All channel synchronous realtime playback,GRID interface & smart serch
- Support 1 SATA HDD up to 4TB,2 USB2.0
- Multiple Network Monitoring:Web Viewer, CMS(DSS/PSS) & DMMS
- Smart Phone:iPhone,iPad,Android
- 4CH AHD 1080P 30fps NSTC/ 25fpc PAL Real-time
- 4pcs 20M premade video and power combination cable
- Auto Switch IR CUT filter
1080P 4CH DVR System AHD Spec:

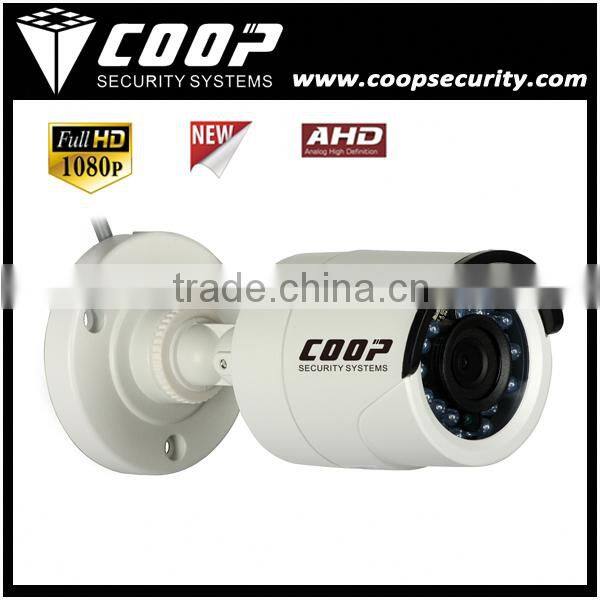

1080P AHD IR Bullet camera
1/2.8'' progressive scan 2.1Mega Pixel Sony222 Sensor camera
1080P Support WDR,3D-DNR,Defog
OSD Menu,Motion Detection,Privacy Zone,HLC,BLC
True Day&Night Mechanical Filter(ICR)
IR Distance:20-30M,30pcs Black IR Leds,3.6mm Fixed Lens
1080P AHD Camera | |
SENSOR | SONY 1/2.8” CMOS IMX222 |
Size | 32mm*32mm/38mm*38mm |
Chipset | NVP2441H |
Output Resolution | AHD 1080P /960H |
Signal Sys. | PAL/NTSC |
Total Pixel | 1312(H)×1069(V) 1.4M Pixels |
Valid Pixel | 1280(H)×1024(V) 1.31M Pixels |
Min Illumination | Color 0.02Lux(F1.2,50IRE,AGC ON); B/W: 0.0008Lux(F1.2,50IRE,AGC ON) |
Electric Shutter | PAL :1/50 ~ 1/100,000s NTSC:1/60 ~ 1/100,000s |
WDR | D-WDR |
Sens-up | 0-30X |
2D-DNR | off/ low/ medium/ high |
3D-DNR | off/ low/ medium/ high |
Image-frozen | Support |
BLC/HLC | Support |
Defogger | 0-2 Level |
S/N | > 60dB |
White Balance | Auto White balance |
Day/Night | Auto/ manual / Color/ B/W |
Mirror | Horizontal/ Vertical |
Privacy Mask | Support |
OSD Language | Chinese/ English/ German/ French/ Italian/ Spanish/ Portuguese/ Russian/ Dutch/ Turkish/ Polish |
Video Output | 1.0Vp-p compound output, 75Ω |
Power | DC 12V±50% |
Working Temperature | -20℃~60℃ |
Working Humidity | Relative humidity less than 90% |
1080P 4CH DVR System AHD Specification:

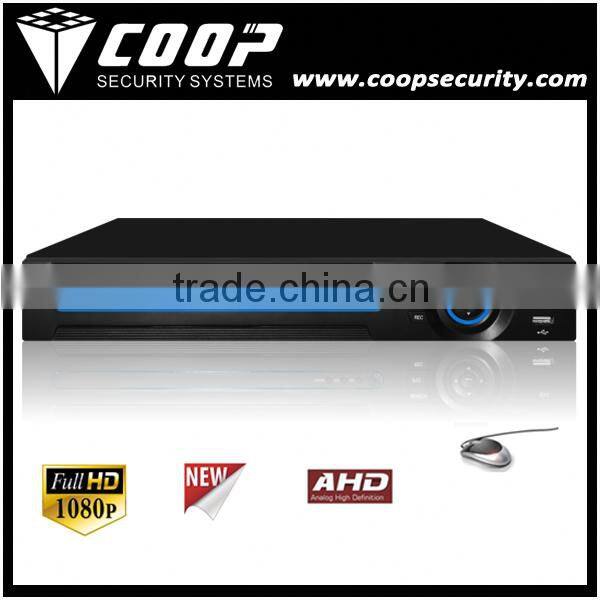

AHD DVR | |
System | |
Main processor | High performance embedded microprocessor |
OS | Embedded Linux OS |
Video | |
Image standard | H.264 |
Switch model | 4ch AHD 1080P or 2ch AHD 1080P+2ch 960H |
Recording Playback | PAL:1080P @ 50FPS NTSC: 1080P @ 60FPS |
Language | English, French, German, Italy, Poland, Portugal, Russia, Spanish, Thai……. |
Motion detection | Each cam can set 192pcs area (16*12) ,Sensitivity level: 1-6 |
Area mask | Support |
Recording | |
Recording mode | Manual ,motion, timer ,alarm recording |
Recording storage | HDD , Network |
Recording Speed | 30 fps NTSC;25fps PAL |
Playback | Local: 4CH ; Remote: 4CH |
Backup mode | Support HDD, USB pen drive Storage and backup |
Video | |
Video output | 1CH VGA ,1CH HDMI ,1CH BNC |
Audio | |
Audio input | 4 channel |
Audio output | 1 channel |
Alarm | |
Alarm input | NO |
Alarm output | NO |
Others | |
Network | 1x10/100Mbps,RJ45 interface |
Communication | RS485 |
USB | 2 USB2.0, Support upgrade via usb pen drive |
HDD | 1HDD sata port ,Max to 3TB |
Power | DC +12V /2A |
Consumption | <12W(Not included HDD ) |
Working temperature | 0℃-+55℃ |
Working humidity | 10%-90% |
Size | 255*215*45mm( Height 0.8u) |
Weight | 2KG |
COOP SECURITY(CHINA)LIMITED is one of the leading factories which develop and produce CCTV products in China, supported by the Chinese government as the most importantly developed company. All the models are produced by machine automatically.It has a Research and Development Center in Taiwan, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Taipei International Show:
1. Transportation: UPS, TNT, DHL, EMS or FEDEX.
2. Item will be shipped out within 7 working days upon receipt of the payment.
3. Shipment may arrive within 5 – 16 days. Actual delivery days would be different for varies countries.
1. Pls report us if there are any problem, we will solve it ASAP.
2. This items comes with 2 YEARS


Q: How long your delivery time?
A: In general, the time is about one week.
Q: What’s your payment?
A: We accept payment by TT Bank Transfer in this stage.
