Day and Night Vandalproof IR Camera HD SDI 1080P Dome CCTV HD SDI Camera

Day and Night Vandalproof IR Camera HD SDI 1080P Dome CCTV HD SDI Camera photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Coop
Model Number:
HD-20VDVI-SDI 1080P Dome CCTV HD SDI Camera
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name Coop
Model Number HD-20VDVI-SDI 1080P Dome CCTV HD SDI Camera
Type Analog Camera
Style Dome Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof

  Day and Night Vandalproof IR Camera HD SDI 1080P Dome CCTV HD SDI Camera HD20VDVI-SDI

Day and Night Vandalproof IR Camera HD SDI 1080P Dome CCTV HD SDI Camera





Product Description

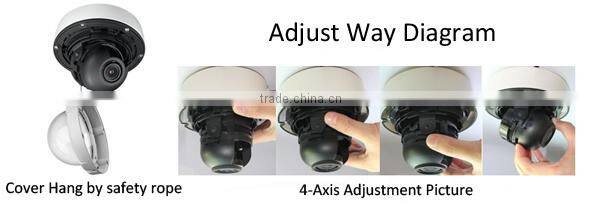

Day and Night Vandalproof IR Camera HD SDI 1080P Dome CCTV HD SDI Camera HD-20VDVI-SDI Series with 4-structure of easy adjustment, metal vandal proof case, convenient installation. Also has an dust-tight design for robust and reliable outdoor surveillance performance.





1080P Dome CCTV HD SDI Camera Features and Benefits:

  • Adopt Panasonic 34041+ NVP2421(DSP) 1080P 1920+1080(30FPS)2Mega Pixels;
  • With Chinese/English OSD control; RS485; Remote control;
  • With BNC coaxical cable control; multi-color of background optional;
  • 2D/3D DVR, Electric-shutter (Manual /Auto); IR-CUT;
  • Color:0.5Lux F1.2, B/W: 0.05Lux F1.2; Video output: HD- SDI BNC;
  • DWS avoiding IR diffusion, Hiddem cable bracket; IP66 waterproof;
  • Infrared focus correction-asphercial zoom lens; focusing accurate, clear image;
  • IR light strength adjusted; with analog Video Test port;
  • Std:4-9mm ; IR distance:35M; Power Supply: DC12V
  • 4  structure metal vandal-proof IR dome camera, Ceiling and inbedding installing optional

  • Support D-WDR, 2D-DNR, IR-CUT FILTER





1080P Dome CCTV HD SDI Camera Specification:

Day and Night Vandalproof IR Camera HD SDI 1080P Dome CCTV HD SDI Camera

General
ModelHD-20VDVI-SDI
Camera TypeHD-SDI Camera
CMOS TypeAdopt Panasonic 34041+NVP2421(DSP)
Lens4-9mm 2Mega Pixels
IR Distance 35M
Image Resolution1080P 1920+1080(30FPS)
Power SupplyPower adapter: 12V(min 0.5A)
Image Resolution1080P(1920×1080)30Hz/25Hz
Sensor Specifications1/2.5 inch
Pixel Size2.2um x 2.2um
Color SystemYcbcr 16bit
Video OutputHD-SDI (SMPTE274M standard)
Video Output InterfaceBNC
Shooting Speed30fps/25fps
Min. illumination0.1LUX (single-frame and color mode)
OSDSupport multiple languages (up to 30 and flexible customize)
Scene ModeGeneral/Highlight
Infrared SwitchAuto/Color/Gray
HDROn/Off
Analog GainOn/Off
2D DNROn/Off
Automatic Exposure Response Speed8 frames
AWBAuto/Mode 1/Mode 2/Mode 3/Off
CCMOn/Off
DPCOn/Off
Brightness/Contrast/
Saturation/Hue
0~255 adjustable
Self AdaptionOn/Off
Auto IrisSelectable
Transmission Distance (Non-Relay)Min 300m (the quality of coaxial cable is optional)
Power ConsumptionMax 2W (with 12V power supply, IR off)
WateproofIP66
Working EnvironmentTemperature: - 10°C ~ + 50°C  Humidity: ≤ 90%

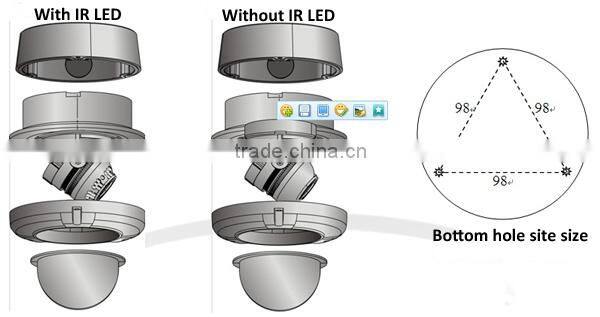

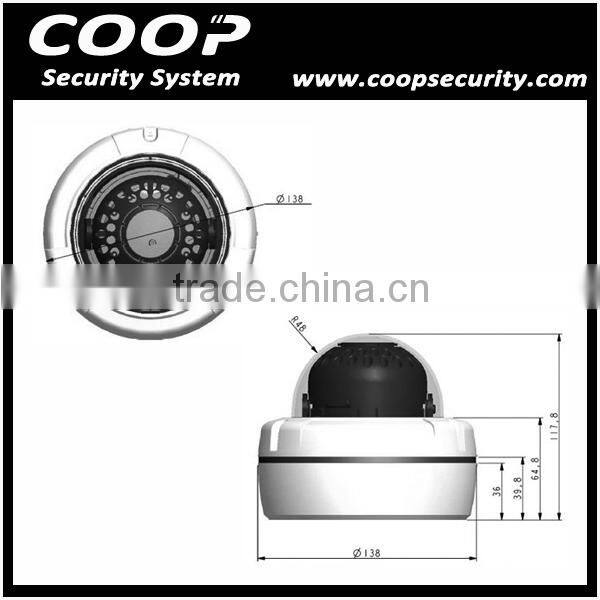

1080P Dome CCTV HD SDI Camera Picture and Dimensions:

Day and Night Vandalproof IR Camera HD SDI 1080P Dome CCTV HD SDI Camera

Day and Night Vandalproof IR Camera HD SDI 1080P Dome CCTV HD SDI Camera

Day and Night Vandalproof IR Camera HD SDI 1080P Dome CCTV HD SDI Camera

Day and Night Vandalproof IR Camera HD SDI 1080P Dome CCTV HD SDI Camera

Day and Night Vandalproof IR Camera HD SDI 1080P Dome CCTV HD SDI Camera
