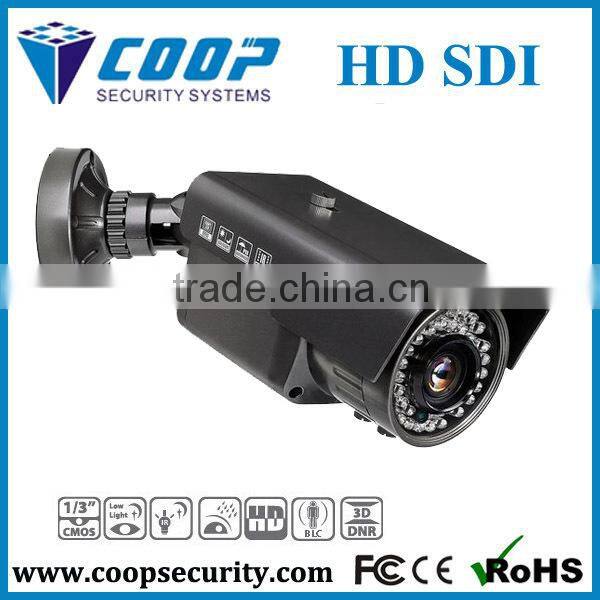

Electrical SMPTE 292M Compatible WDR Metal Housing Box HD CCTV 720P Waterproof Camera

Electrical SMPTE 292M Compatible WDR Metal Housing Box HD CCTV 720P Waterproof Camera photo-1
US$ 62 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Coopsecurity
Model Number:
HP-PA720PY-SDI box camera
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name Coopsecurity
Model Number HP-PA720PY-SDI box camera
Type Analog Camera
Style Box Camera
Sensor CMOS
Technology NetWork
Special Features Vandal-proof

Electrical SMPTE 292M compatible WDR Metal Housing Box HD CCTV 720P Waterproof Camera







Product Description

 Electrical SMPTE 292M compatible WDR Metal Housing Box HD CCTV 720P Waterproof Camera

 Technological Parameter



Model No.

HP-PA720PY-SDI

Image Sensor

1.3 Mega Pixel, Panasonic CMOS(MN34041) Sensor

Effective pixels

1920(H) x 1080(V)

Scanning system

Progressive Scan

Minimum illumination

0 Lux(LED ON)

Lens

2.8-12mm  2Megapixel Varifocal Lens with ICR

IR view distance

About 35-45M with 42ea (¢5) LEDs

WDR (Long and Short exposure)

OFF/ON(Level Adjustable)

O.S.D

Built-in

3D-DNR (3D Digital Noise Reduction)

OFF/ON(LOW/MIDDLE/HIGH)

Sens-Up

OFF/ON

Motion Detection

OFF/ON

Privacy Zone

OFF/ON

HLC

OFF/ON

B.L.C. control

OFF/ON

Defog

OFF/ON

White balance

AWB/ATW/PUSH/MANUAL

A.G.C

HIGH / LOW

Electronic shutter Speed

AUTO/MANUAL/FLK

Video output

HD-SDI(SMPTE 292M compatible) / CVBS:1.0 Vp-p Composite Signal  (75ohm)

Operation temperature

-10 - +50

Operation Humidity

Within 95% RH

Power supply

DC12V(+/-15%)

Power Consumption

100mA / IR LED ON:400mA Max

Dimensions (mm)

290(L)*97(W)*110(H)mm

Weight-Net (g)

960g





Packaging & Shipping

All of items will be careful packaged before shipping, As below photo showed :

Electrical SMPTE 292M compatible WDR Metal Housing Box HD CCTV 720P Waterproof Camera

Shipping Way:

by sea /air / express

Electrical SMPTE 292M compatible WDR Metal Housing Box HD CCTV 720P Waterproof Camera





payment

Electrical SMPTE 292M compatible WDR Metal Housing Box HD CCTV 720P Waterproof Camera





HD-SDI CCTV DVR KIT

HD 1080P Security CCTV System HD-SDI DVR Kit 4/8 CH

Pls click the picture into the related web page.

Electrical SMPTE 292M compatible WDR Metal Housing Box HD CCTV 720P Waterproof Camera







CCTV Metal Camera

CCTV Analogue Metal Housing Camera ---700/800/1000tvl

Electrical SMPTE 292M compatible WDR Metal Housing Box HD CCTV 720P Waterproof Camera



Company Information

COOPSECURITY is professional security equipment supplier committe to provide secuiry surveillance goods.

There are wide range of security camera to cover everything. From home design camera with night vision and outdoor project bullet ip ptz and HD resolution camera. Also the related accessoires. All of product were technological updated contantly.

We are hoping to offer you the eco device that low power comsuption, good reliability long life and secure enviroment.

Electrical SMPTE 292M compatible WDR Metal Housing Box HD CCTV 720P Waterproof Camera

Fair

Electrical SMPTE 292M compatible WDR Metal Housing Box HD CCTV 720P Waterproof Camera

Certification if you need CE ROHS

Electrical SMPTE 292M compatible WDR Metal Housing Box HD CCTV 720P Waterproof Camera
