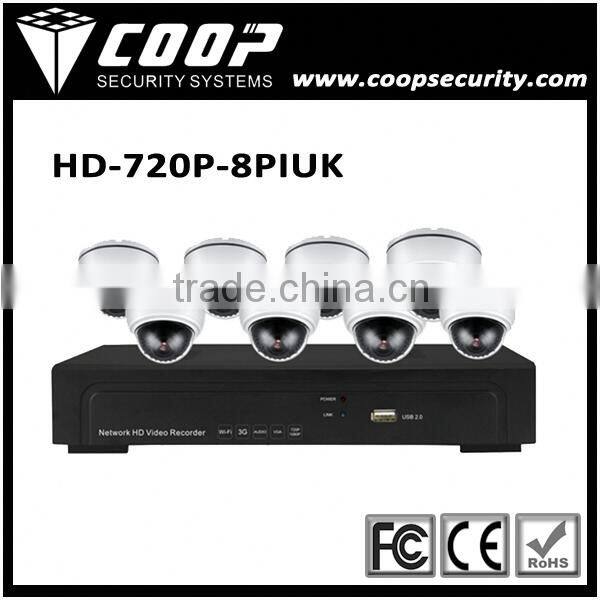

Hisilicon 1MP Dome IP Camera HDMI Onvif LINUX 8CH NVR 720P NVR System 8CH POE CCTV Kit
Hisilicon 1MP Dome IP Camera HDMI Onvif LINUX 8CH NVR 720P NVR System 8CH POE CCTV Kit HD-720P-8PIUK
8CH POE CCTV Kit Features:
- P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place
- Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based on Onvif,RTSP standard
- Support search, playback and backup by event;
- Support all channel image display on one screen at same time, support 4 channels’ image display by mainstream,
- Support monitor PTZ on preview mode
- Offer CMS for free
8CH POE CCTV Kit Main Functions:
- Preview channel can be switched to other channel randomly without changing the MAC which is convenient for the project construction;

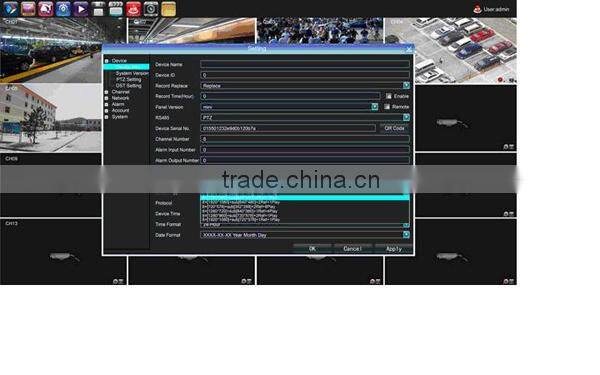

- The dendritic menu can be moved. Man-machine communication is more direct and the settings of parameters are more easy and convenient;
- The mouse roller can realize 15X digital zooming which the enlarged image can be dragged and moved randomly under preview and playback modes;
- Immediate snapshot and immediate view; the picture will be stored in an independent area in the HDD;
- The recording playback is shown by time bar and different color represents different recording type. It is very fast and easy to find check the recording;
- Recording backup can be accurate to second. Any time period of backup is available;
- The recording files in the USB disk can play directly in the playback interface while the snapshot pictures can be viewed directly;
- With 3G, WIFI wireless connection functions;
- Standard resolution which can be adjusted according to the display device in order to get the best image quality;
- Adopt HDD sequence writing method and the data is written from 0 track which increase 2.5X lifetime of the HDD
8CH POE CCTV Kit Specification:
Model Number | DV6008-POE | |
Operating System | Embedded LINUX operating system | |
Image Code Control | Image code quality adjustable, variable bitstream and constant bitstream optional | |
Dual Stream | Each channel can set main stream and sub stream | |
Video Standard | 1080P(1920×1080)30fps/960P/(1280×960)/720P(1280×720)30fps | |
Monitoring Image Quality | 1080P(1920×1080) / 960P/(1280×960)/720P(1280×720) | |
Image Motion Detection | Each screen can set mutiple detection areas and set 6-level sensitivity(IPC Support) | |
Recording Playback Quality | 4ch playback in 4ch 720 mode; 1ch 1080P playback in 4ch 960P/1080P model | |
Region Cover | Every channel can set 4 cover regions(IPC Support) | |
Recording Mode | Support manual , auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support) | |
Backup Way | Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup | |
Operation Way | Mouse | |
Local Login | User name and password | |
Recording Storage | Local HDD, network | |

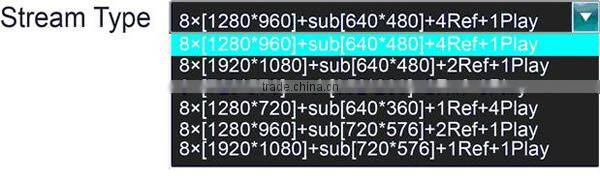

External Ports | Video Input | 1. 8×(1280*720) +sub[640*360]+1Ref.+4Play 8ch 1.0MP IP Camera |
2. 8×(1280*960)+sub[640*480]+4Ref.+1Play 8ch 1.3MP IP Camera | ||
3. 8×(1280*960)+sub[720*576]+2Ref.+1Play 8ch 1.3MP IP Camera | ||
4. 8×(1920*1080)+sub[640*480]+2Ref.+1Play 8ch 2.0MP IP Camera | ||
5. 8×(1920*1080)+sub[720*576]+1Ref.+1Play 8ch 2.0MP IP Camera | ||
Audio Input | 8ch network audio input | |
Video Output | 1ch VGA+1ch HDMI | |
Audio Output | 1ch RCA Output | |
Network Port | 9 RJ45, 100M LAN port, data transferring and power supply both by network cable | |
USB Port | 3 USB 2.0 ports | |
Wireless Port | 3G,WIFI | |
HDD | HDD Port | 1 SATA HDD Port |
MAX Capacity | Each port supports MAX 4TB HDD | |
Mobile Surveillance | Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone | |
Power Supply | DC48V 2.5A | |
Power Consumption | ≤115W(without HDD) | |
Working Temperature | -10℃~+55℃ | |
Working Humidity | 10%-90% | |
Dimension | Equipment:260mm×220mm×43mm, Packing:355mm×255mm×88.5mm | |
Weight(without HDD) | N.W.:1.7Kg;With packing:2.6Kg | |
Outside Carton | 10 pcs/carton. 525mm×455mm×365mm; Weight:27 Kg | |
Installation Way | Desktop Installation | |

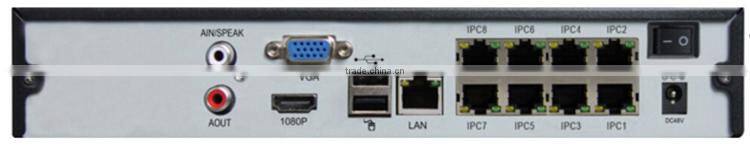

8CH POE CCTV Kit Accessories & Port Pictures:
NVR | 1PCS |
IP Cameras | 8PCS |
Network Cables | 8 PCS |
NVR Power Supply | 1 PCS |
NVR Mouse | 1 PCS |
CD | 1 PCS |
8CH POE CCTV Kit Camera Specs:
| Model | HD10PIUK | |
| General | Feature | Simplification |
| CMOS Type | OV 9712+ Hisilicon 3518C | |
| CMOS Model | 1/4″1.0 Mega Pixel | |
| Illumination | Color: 1.0Lux/BW:0.1Lux(F1.2, AGC ON) | |
| IR Distance | 20m (24pcs of Black IR LED) | |
| Shutter Speed | 1/60Sec~ 1/100, 000Sec, Shutter Speed Adjustable | |
| Lens | 3.6/6/8mm Fixed Lens | |
| Exposure Control | DSP Auto Adjust | |
| AGC & W/B | Auto | |
| S/N Ratio | ≥50dB | |
| Network Function | Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, |
| RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X,P2P | ||
| Support Agreement | Support ONVIF 2.0 | |
| Video Storage | FTP Storage,Local storage,Support ONVIF NVR Storage, | |
| optional:SD Card&TF Card(Max 32GB) | ||
| Smart Alarm | Motion detect Video Shelter, I/O Alarm for Video Lost | |
| Extended Function | POE power supply, 150M wireless WIFI, TF/ SD card, the temperature control switch, I/O alarm, electric lens | |
| General Function | Anti flicker, dual stream, mirror, password protection, video hiding, | |
| watermarking technology | ||
| Upgrade maintenance | Support Remote Upgrade, With Password Protect. | |
| Wireless(Optional) | Adapting WIFI or 3G,Adapting P2P Intelligence Mobile Phone Visit | |
| Special Features | 3- | With portable & fast 3-Construction for Adjust. |
| Appearance quality | Plastic Housing | |
| Waterproof | Strong waterproof stopper for IP67 | |
| Smart IR | Intelligence Prevent IR light Over Exposure | |
| Video Efficiency | Compression | H.264 |
| Video Frame Rate | 1280×720P | |
| Effective Pixel | 50Hz:25fps (1280*720); 60Hz: 30fps (1280*720) | |
| Bit Rate | 32 Kbps~8Mbps | |
| Image Setting | Saturation, Luminance, Contrast Ratio Adjustable Through Client or IE. | |
| Backlight Compensation | BLC / HLC / DWDR | |
| Audio | Audio Encoding | With G.726/G.722/G.711 standard code,64Kbps transfer Speed |
| Audio Function | Audio Broadcast,Audio talkback | |
| Mount | Power Mount | DC female connector,5.5×2.1mm |
| Network Mount | 1ch 10M/100M ether net mouth, RJ45 Mount | |
| Video Output | 1ch local analog output, BNC interface. | |
| Alarm Mount | 1ch alarm input,1ch alarm output | |
| Audio Mount | 1ch audio input,1ch audio output | |
| RS485 Mount | 1ch RS485 Mount | |
| Others | Work Temperature | Circle temperature:-10℃~+60℃ Body temperature:25℃~35℃ |
| Work humidity:<90% (no condensation) | ||
| Power Consumption | DC 12V±5% , IR ON: 8W | |
| SIZE(mm) | Unit packing:230 × 220 × 125 mm carton size:610 × 430 × 400 mm(10 CTN) | |
| Weight(Kg) | Unit Weight:1.25Kg Carton Weight:12.50 Kg |
COOP SECURITY(CHINA)LIMITED is one of the leading factories which develop and produce CCTV products in China, supported by the Chinese government as the most importantly developed company. All the models are produced by machine automatically.It has a Research and Development Center in Taiwan, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Taipei International Show:
1. Transportation: UPS, TNT, DHL, EMS or FEDEX.
2. Item will be shipped out within 7 working days upon receipt of the payment.
3. Shipment may arrive within 5 – 16 days. Actual delivery days would be different for varies countries.
1. Your LOGO can be puttted on cameras.
2. Model Number can be customized.
3. Welcome OEM & ODM order, MOQ for OEM is 50pcs/model
Q. What's the MOQ for this item?
A. MOQ 1pcs. Sample order is welcome.
Q. What's the payment term?
A. We accept payment by T/T bank transfer, PayPal, or WesterUnion.
Q. What's the delivery time?
A. Usually in one week after payment received.
