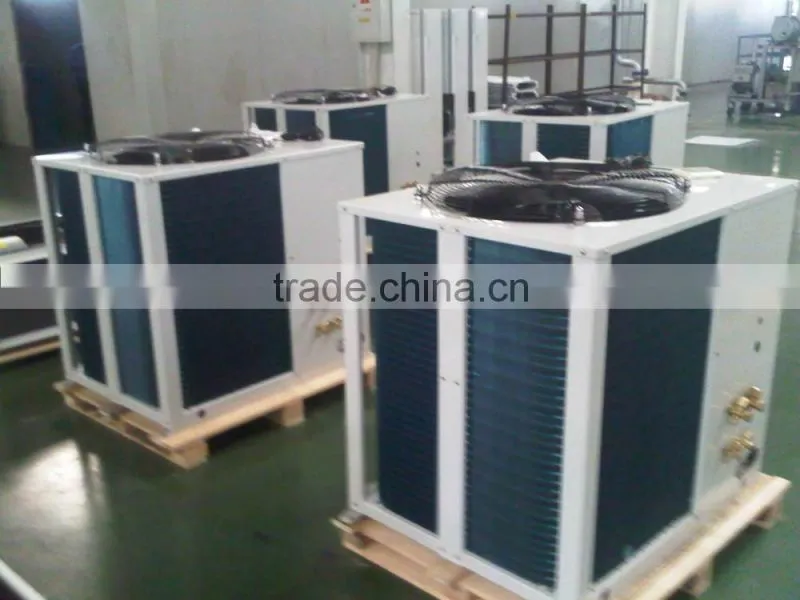

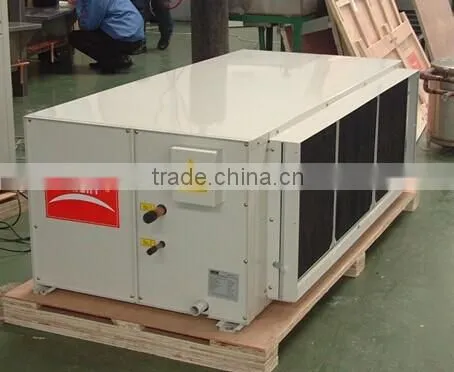

Split type duct air conditioner

      Model :  BD(R)F 20W/N - 104W/N

     Refrigerant  :    R22,R407C

      Characters   l      11 sizes available ranging from 19.5 kW to 103.7 kW cooling                               capacity.

                      l      Cooling only and heat pump version.

                          l      Wide application as hotel, apartment, villa, factory, shopping center, office                                 building, school, etc.

                         l      Panels and frame are made from metal steel protected with polyester powder                          painting to ensure total resistance to atmospheric agents.

                         l      High efficiency scroll compressor for the whole range, with built-in thermal                                  overload cut-out and crankcase heater, mounted on rubber vibration dampers.

                        l      Compact indoor design, long air supply distance.

                        l      Outdoor units are equipped with low noise axial fans.

                        l      Indoor units are equipped with quiet centrifugal fans.

                        l      Split installation, connected by means of flare/welding coupling.

                        l      Easy operation line controller:

                        ¨     Cooling/Heating/Fan/Auto

                        ¨     Error indication

                         ¨     Timing On/Off

                        l       Multi safety protection

                       ¨     High/low pressure protection

                       ¨     Overheat protection

                       ¨     Current overload protection

                      ¨     Phase sequence relay

                      ¨     Time delay and antifreeze switch

               OPTIONAL

                     l   Additional electric heater on indoor unit

                     l   Additional heating coil on indoor unit

              Application :   Wide application as hotel, apartment, villa, factory, shopping center, office                 building, school, etc.

       Product shows:

A total area of 600,000 square meters and  200,000 square meters  for workshop

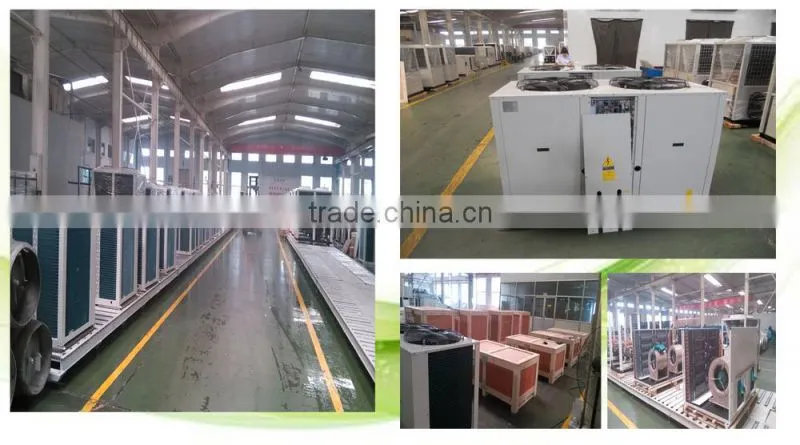

Inside workshop:

 Established in 1987, BRIGHT has specialized in air conditioner, HVAC system & parts as a  the leader in north of china.

  BRIGHT is provided with Quality certification according to ISO 9001:2000 and ISO14001:2004.
