Home > Products > Pneumatic components > Airtac Type Air treatment unit (triple unit )
Airtac Type Air treatment unit (triple unit )
USD $1 - $10
/ Piece
1000 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- NINGBO/SHANGHAI
- T/T
You May Like
Product Details
| Condition: | New | Type: | Other, air sorce treatment | Place of Origin: | Zhejiang, China |
| Brand Name: | WEHOPE | Model Number: | AC/BC series | Operating Voltage: | 230 VAC |
| Mounting: | Other | After-sales Service Provided: | No overseas service provided |
Product Description
Specifications
1.Many years experiences.2. High quality , favorable price .
3. Fast delivery , best service
AIR SOURCE PROCESSING UNITS
AC/BC Series
Specification For Type
Specification
| Type | AC1500 | AC2000 | BC2000 | BC3000 | BC4000 | |||||
| Fluid applied | Air | |||||||||
| Pipe size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | |||||
| Filtration | 5 um | |||||||||
| Applicable pressure range | 0.5~8.5Kgf/cm² | |||||||||
| The highest pressure in use | 9.5Kgf/cm² | |||||||||
| Guaratee pressure with stand | 15.0Kgf/cm² | |||||||||
| Applicable Temperature | 5-60°C | |||||||||
| Drain Holding Capacity | 15CC | 60CC | ||||||||
| Lubricating Oil Capacity | 25CC | 90CC | ||||||||
| Recommended lubricating Oil | Suggested greaes:ISO VG 32 Or Equivalent | |||||||||
| Weight | 0.7Kg | 0.9Kg | ||||||||
| Material | Body | Aluminium alloy pressure casted | ||||||||
| Cup | PC | |||||||||
| Protection cover | - | Nylon | ||||||||
| Components | Air Filtor | AF1500 | AF2000 | BF2000 | BF2000 | BF4000 | ||||
| Air Regulator | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 | |||||
| Air Lubricator | AL1500 | AL2000 | BL2000 | BL3000 | B14000 | |||||

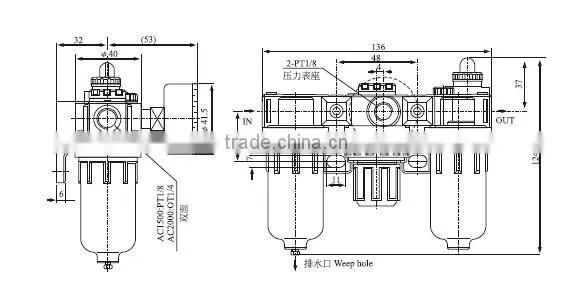

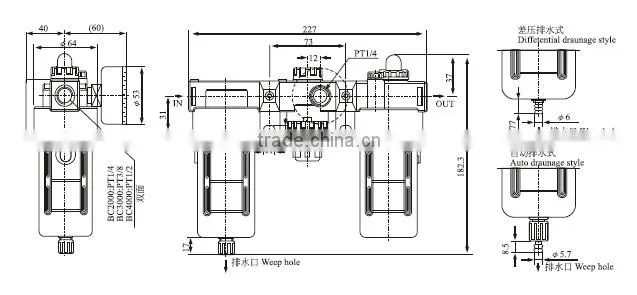

Figure Dimension
Product detail
