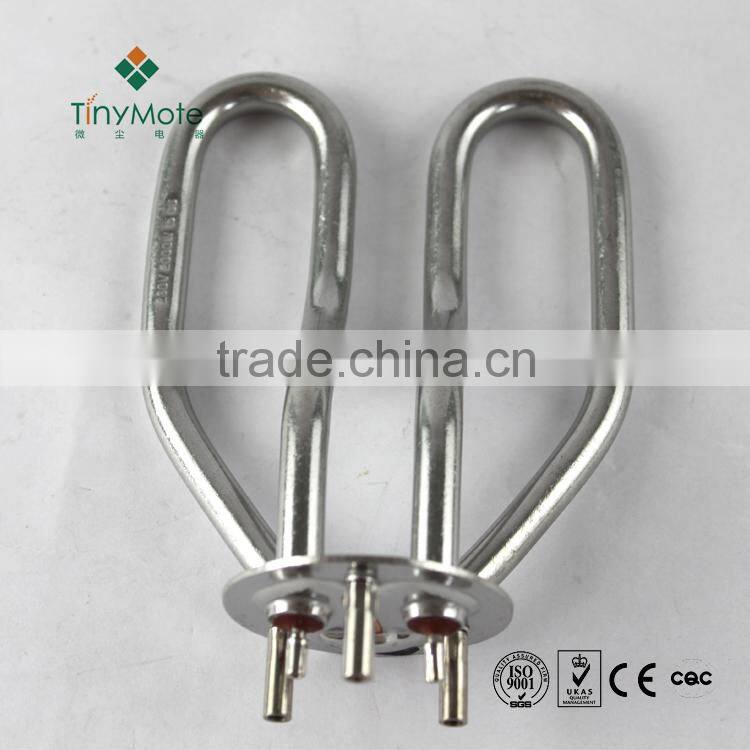

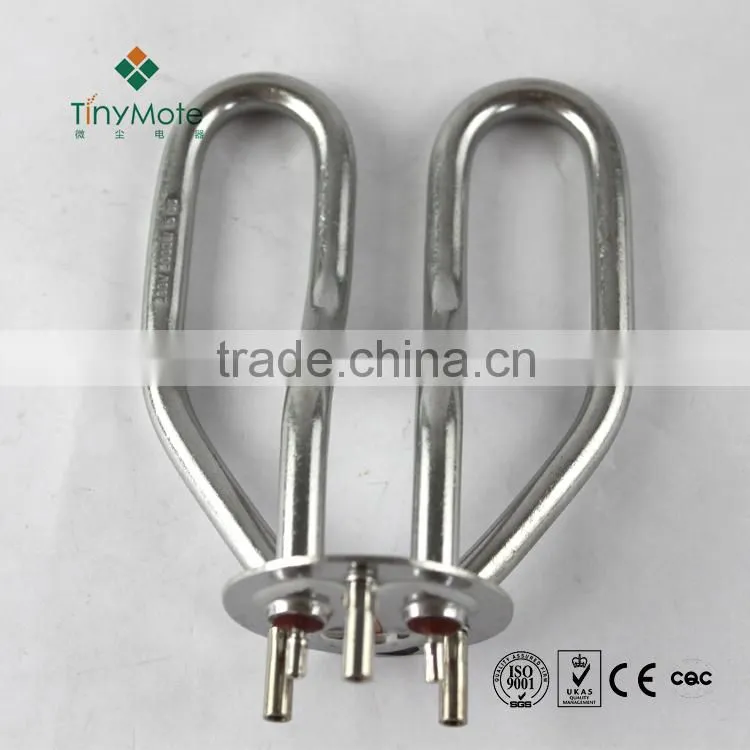

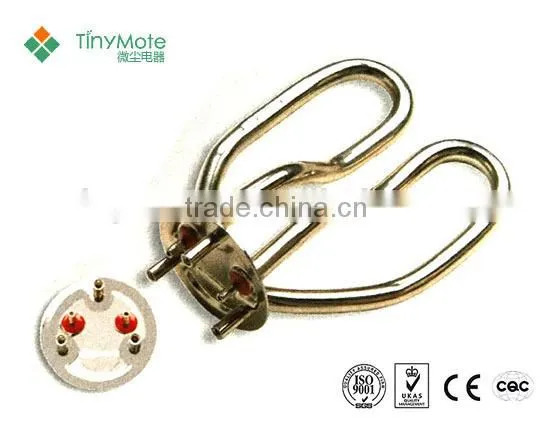

Jiangsu T2 electric kettle heating tube

Name: Jiangsu T2 electric kettle heating tube
Brand: Tinymote
Availability: InStock

FOB Price

USD $2 - $10 / Piece

1000 Pieces(Min.Order)

Supply Ability 40000 Piece / Pieces per Month
Port SHANGHAI/NINGBO
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Jiangsu, China

Brand Name:

Tinymote

Model Number:

TM-TSH2068

Product Description

Product parameters3

TinyMote is the professional manufacturer of electric heater
with experienced design team

Professional

Experienced

Standardized

our factory have more than 10 years experience in OEM services and with
more than thousands of customers
at home and abroad

Design and make drawing according to the product requirements.

we provide the special design products with standard productions.

What can we do for you

Tiny mote is the professional manufacturer of electric heater,with experienced design team, specialized in the production of high quality electric heating element, which mainly sales at: South Africa,the Middle East,Latin America and so on.

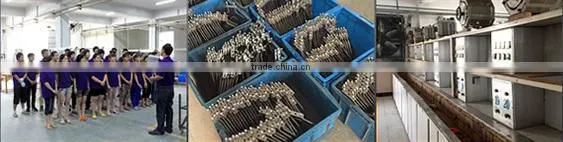

10 years production experience of electric heater	Professional team in design and productionthe order feedback in process every 3 days.	Complete electrical performance testing equipment

How do we do

Accept your enquiry requirements, our engineer will choose ingredients
design the installation and electrical performance, also equip with the complete equipment design, to ensure the product safety
conform to the requirement of production condition and quality in consistency


Demand	Design and make drawing according to the product requirements	Tooling design and production	Sample production & proceduce confirmation


Operater training & assessment	Professional operating	Strict testing

Authentication

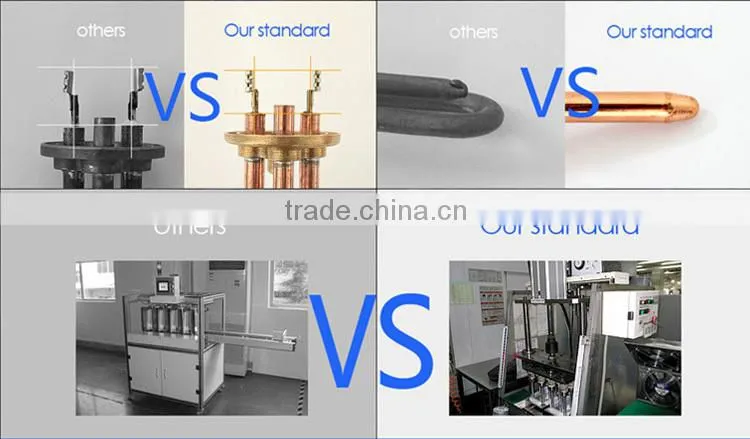

Product comparison

Pressure sampling checking as Proportional	Test welding part leakage in 12 KG pressure

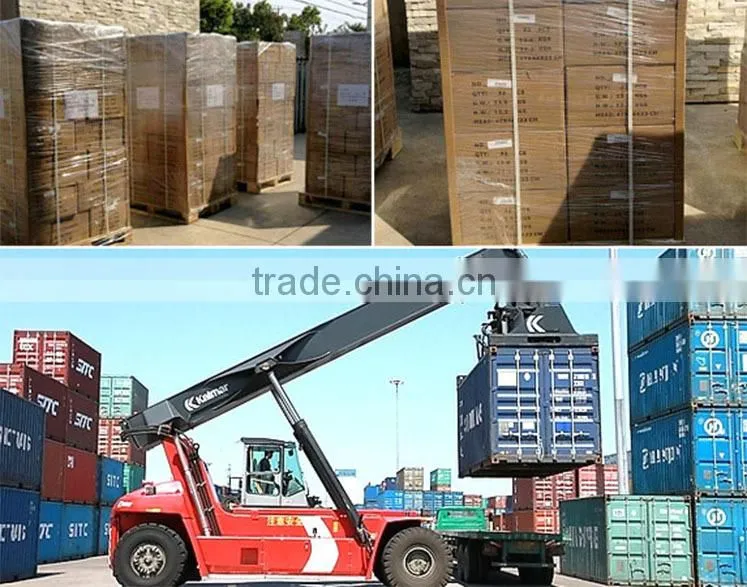

Packing

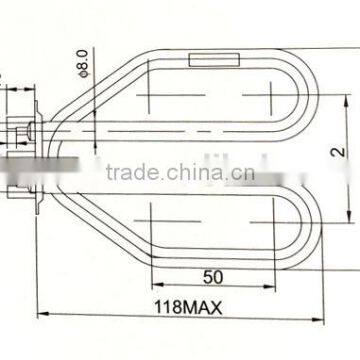

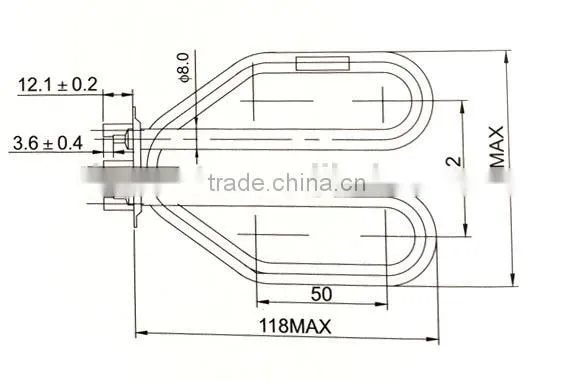

Technical Parameter

Technical Parameter
Electric Kettle Heating Tube
Body Material	T2 red copper
Pipe Size	Φ8.0
Tube wall thickness	0.4~0.5mm
Terminal Size	187# or 250#terminal plug,terminal spot welding withstand 10kg tension without loose.
Terminal Connection	squeeze riveted to withstand tension of 5 kg
Temperature Control	3.6±0.4;13.1±0.25;14.1±0.2
Watt	customized
Voltage	Customized
Overall Dimensions	scissors-type,OEM, customized in drawing or samples.
Electrical Performance	AC1500V/0.5mA.3S;DC500V 100MΩ;Leakage current<0.5mA
Life Time	Power on 0.5 time voltage boil dry until trip,then water cooling within 5 seconds,non-yellowing on tube surface.Coating without upwarping and sparkling. Instal the heating tube and thermostat inside of kettle,inject 1L cold water,boil water until boiling by rated voltage,boiling 5 seconds later power off,then drain and cooling,inject 1L cold water again boil until boiling.So after 10000 cycles,heating tube can be still work normally.
Warranty	TWO year
High- pot test	1500V/2mA/1S
Resistance insulation	100MΩ MIN
Leakage current	0.5mA MAX
Surface Treatment	electronickelling
Hydraulic testing	withstand 1.2MPa pressure test no leakage
flange material	brass
welding of flange technique	Flange and pipe joint with brazing

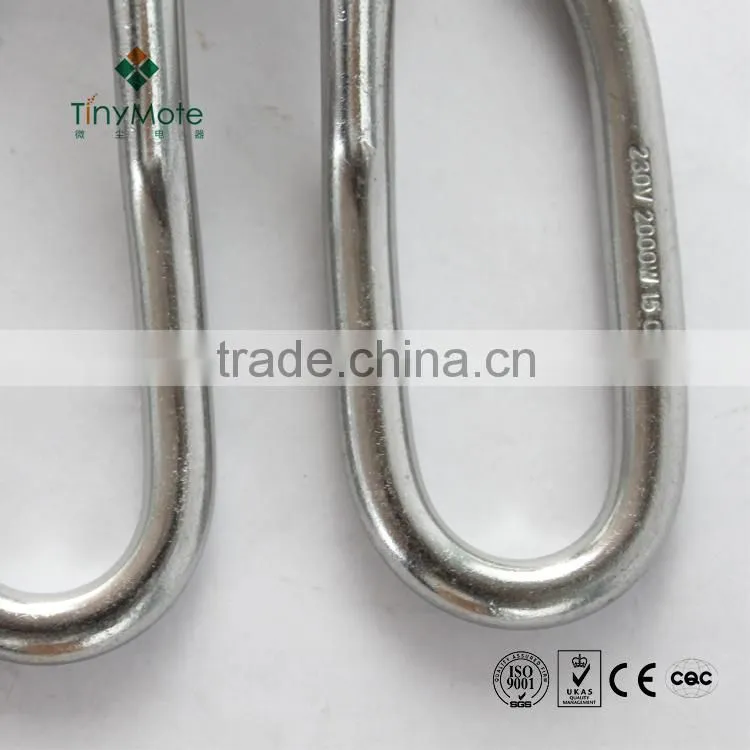

Product details

FAQ

1.Q: Are you a trading company or .a factory?
A:We are a factory.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Changshu of Suzhou city, Jiangsu province, China. It is about 100 km far from Changshu to Shanghai,drive only need 2 hours to our factory. All the client, from home or abroad,
are warmly welcome to visit us.

3.Q:How can I get some samples?
A:We are honored to offer you samples,will send to you by express.

4.Q:Are your products customized?
A:Yes, the products in the website are only common type or the customized types ordered by our customers, we can supply products according to your samples and drawings.

5.Q: How does your factory control quality?
A:Quality is priority, our QC always keep step to quality control during production process,all of the orders will be delivery after QC passed.
