Amaxtek IC Chip USB Card Reader/ Writer
- 60000 Piece / Pieces per Month
- Shenzhen/ Hongkong
- T/T L/C D/P D/A Credit Card PayPal
- Chip Card Writer and Reader,SIM Card Reader
- USB Smart EMV Card Reader Writer
- Amaxtek Black Desk Single Slot USB Smart Chip Card Reader
- ISO 7816 USB Smart Card Reader Debit Card Reader and writer
- Amaxtek ATM Card Reader,IC/EMV Card Reader,Smart Chip Card Reader Writer
- Hot Sale EMV PC/ SC ISO 7816 Smart Card Reader Writer, Smart Chip Card Reader/ Writer EMV USB CCID
Product Details
Brand Name: | Amaxtek | Model Number: | C292 | Type: | MMC Card |
Interface: | USB | Card Slots: | Single | Installation: | External |
Place of Origin: | Guangdong, China |
Product Description

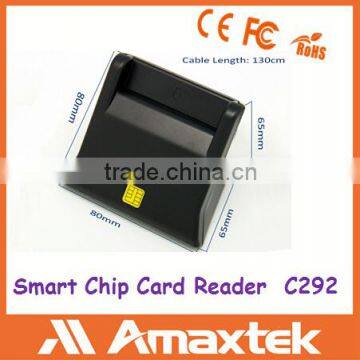

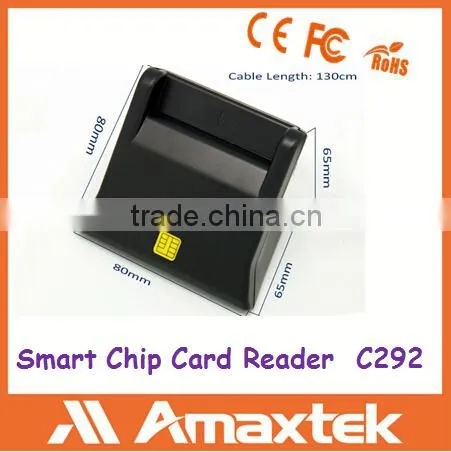

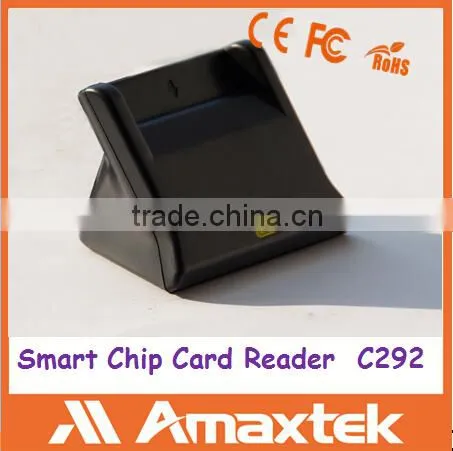

Amaxtek IC Chip USB Card Reader/ Writer
Model No: C292
Sell Point:
1. Single Slot credit card reaer
2. Support ATM/Credit/EMV/ID/IC card
3. With 12-Month-warranty
4. CE,FCC certificate and reach RoHS standard
5. OEM/ODM service
Specifications
support the ISO 7816-3, T=0 or T=1 protocols CPU-based smart cards.
Complies with PC/SC Version 1.0/2.0 standard and officially approved by Microsoft.
Provided for many popular memory cards including: 4404, 4428, 4442 and I2C memory cards.
The Smart Card Reader IC is compliant with EMV 4.1 specification.
Provide to online bank transaction, online shopping w/credit card.
System Requirements:
Smart Card: Windows 2003/ XP/ Vista
Attention:
* For Smart Card driver, please install the CD software.
Hardware Installation:
Installation the smart card editor software
Open the smart card reader cover and plug in the card
Move USB cover and plug-in the reader to PC
Body Dimention: 84 x 65 x 25 mm
Body Weight: 122 g
IC Controller | AU9520 |
Interface | USB 2.0 Type A |
Host Interface | USB 2.0 CCID 1 (also compliant with USB 1.1) |
Transmission Speed | 12 Mbps (USB 2.0 full speed) |
Power Supply | Bus powered |
Smart Card Interface | |
Standards | ISO 7816 & EMV 2 2000 Level 1 |
Protocols | T=0, T=1, |
2-wire: SLE 4432/42 (S=10), | |
3-wire: SLE 4418/28 (S=9), | |
I 2 C (S=8) | |
Card Size | ID-1 (full-size) |
Smart Card Interface Speed | 420 Kbps (when supported by card) |
Smart Card clock frequency | Up to 5 MHZ |
Supported card types | 5V, 3V and 1.8V Smart Cards |
ISO 7816 Class A, AB and C | |
Power to Smart Card | 60 mA |
Other Features | |
Status Indicator | Dual color LED |
Options | |
Customer specific logo or label | On request |
Customer specific colors | On request |
PC/SC Driver Support | |
Windows ® 98 / ME, 200 / XP (32bit), 2003 Server | |
Windows ® CE 5.0 (depending on hardware) | |
Windows ® Vista (32bit / 64bit) | |
Linux ® | |
Hardware Specifications | |
Demensions (L x W x H) | 84 x 65 x 25 mm |
Weight | 122g |
Operating temperature | 0 º -55 º C / 32-131 º F |
Operating humidity | 10-90% rH |
Composition | ABS |
Connector cable | 100 cm / 70.9" |
Durability | 100.000 insertions |
Meantime between failure (MTBF) | 500.000 hours |
Inne pack: Blister box with color card package
We also can provide the package which you require, with additional charge depend on your needs.
We have strong cooperation with DHL,TNT,UPS,EMS,Chian Air Post,etc. Also, you can choose your own shipping forwarder.
For more details,please feel free to contact us.
1. Any inquiries will be replied within 24 hours.
2. Professional manufacture. Welcome to visit our our website: 3.OEM/ODM available
4. High quality, fashion designs, reasonable& competitive price, fast lead time.
5. After-sale Service:
1). All products will have been 100% quality checked in house before packing.
2). All products will be packed be shipping.
6. L/T: within 3 working days for sample order and with 20 working days for bulk production.
7. Payment: T/T, Western Union, Escrow
8. Shipping: We have stong cooperation with DHL, TNT, UPS, FEDEX, EMS, China post air. You also can choose your own shipping forwarder.
Amaxtek Electronics Limited, located in Baoan Shenzhen, the high-tech centre of China, covers an erea of 500 square meters, nearly 300 workers and 8 R&D engineers with more than 8 years experience in electronics area. We own 5 production lines with 80,000 pieces monthly capacity to guarantee the fast leadtime.
The company's products include card reader/USB hub/Car charger/Power meter etc PC peripheral products, we also provide OEM/ODM project with own brand to more than 30 countries.
For more information, please kindly visit our website:
