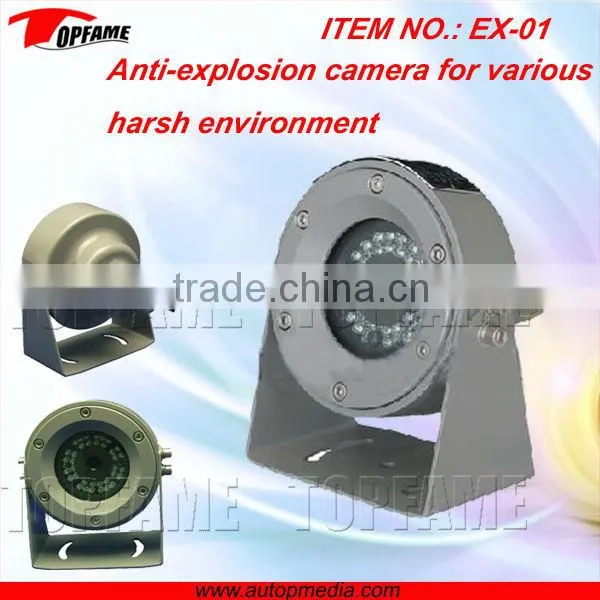

EX-01 Anti-explosion camera, explosion proof camera case for oil tank truck, etc.

Specifications

explosion proof camera case
Cgrade EX-proof, night vision, waterproof
Explosion proof mark: ExdIICT6
Ideal for oil tank tr

TOPFAME EX-01 Anti-explosion camera,  explosion proof camera case for oil tank truck, etc.



C grade Ex-proof,true color 420TVline,infrared light auto



work in 15meters distance,



2.8mm/3.6mm/4mm/6mm lens optional



aluminum alloy material,protection level IP66,



small size, less weight and could be used in special place



which has limit space and weight requirements,such



as:oil tank truck,oil adding machine,small



warehouse,explosion -proof lift etc.







The explosion-proof performance accord with GB3836.1-2000 <<Electrical apparatus use general requirements:part1,which used under explosive gas atmospheres environment>>,GB3836.2-2000<< use explosion-proof electrical equipment under explosive gas environment : part 2 Exd explosion proof "d" >> standard and make Exd explosion proof structure.







Use unique special explosion proof glass, high light flux rate,avoid infrared light spot



Nanometer invisible features, rain wiper functions,non-stick water,non-stick oil,Exclusion of dust



All in one aluminum alloy structure,surface coated processing technology,explosion proof,



Avoid dust,water proof, little sizes for easily install,less weight for transportation



Work environments : Chemical industry,oil,steel,iron,Military project,medicine,mine,oil warehouse,ship,oil drilling platform,gas station,Production of fireworks and firecrackers,food Processing and storage.







Specification



model/signal type	EX-01  PAL/NTSC
Ex mark	ExdIICT6
Protection grade	IP66
connection type	composite cable output
Image sensor	1/3"SONY Super HAD  CCD
resolution	480/540/650/700 TVLine
Min illumination	0Lux
Infrared invisible distance	15 meter
Infrared switch	Infrared light automatic on(infrared light on when light sum less than 0Lux)
lens	2/4/6/8mm
Work voltage	DC12V
Work current	≤500mA
Noise ratio	>50dB
Environment temperature	-25°C~+70°C
Atmosphere pressure	86~106KPa
Relative humility	≤95%RH(+25°C)
dimensions	119mm ×108 mm(Length)
Cable outlet specifications	G 1/2"
weight	≤1.7Kg
