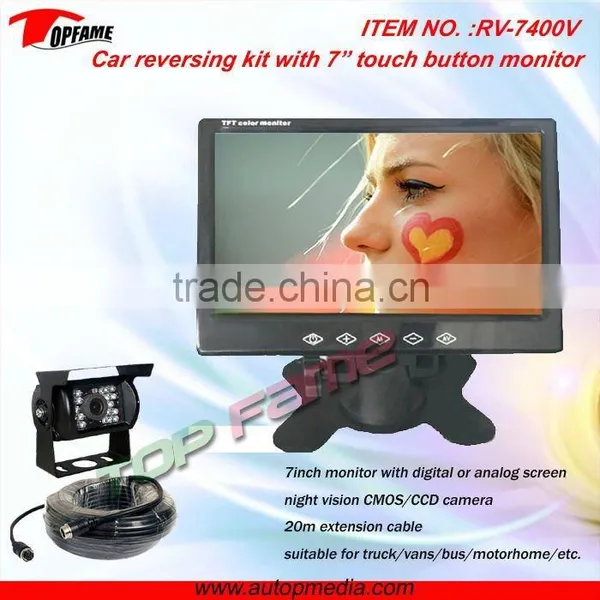

RV-7400V 7 inch Car Rear view System with LCD Monitor+backup camera for Truck/Vans

Specifications

RV-7400V 7 inch car rear view camera system
* 7" DIGITAL/ANALOG LED monitor
* Back up CCD/CMOS cameras
* Available for Truck

RV-7400V 7 inch Car Rear view System with LCD Monitor+backup camera for Truck/Vans



Monitor Spec:

7" DIGITAL/ANALOG-LCD MONITOR

Ratio: 16:9 /4:3

Pixel: 800x 480 480x234

System: PAL/NTSC auto switch

Video input: 2 way

Audio input: 1 way optional

Backup: V2 auto reverse

View angle: U/D/L/R

Adjustable image brightness/color/contrast

With remote control and OSD menu

Power supply: DC12V, 11-32V

Current: 0.7A

Luminance: 300-400/m2

Operating temp.:-10°C ~ 60°C

Device size:171*125*19mm(W/H/D)

weight: 550g



Back up camera:

Image Sensors: 1/4"  /1/3" CMOS/CCD

TV System:PAL / NTSC
waterproof rate:Ip67
Effective Pixels:628x582 pixels / 656×492 pixels
Resolution:420TV lines
Minimum Illumination:1.0Lux / F1.2
Pin Lens:f=3.6mm / F = 2.0
Lens Angle:120°
Vertical Sync. Frequency:50Hz / 60Hz
Video Output:1.0vp-p, 75Ohm
Power Supply:DC12V, 11-32V
Current Consumption:≤200mA
Electronic Shutter:1/60 ~ 1/10,000 Seconds
Gamma Consumption:0.45
S/N Ratio:Better than 48Db
Scanning System:2:1Interlace
Operating Temperature:-20°C~70°C ,RH95% MAX
Storage Temperature:-40°C~85°C ,RH95% MAX



Package included:

7inch LCD monitor x 1

Remote control x 1

Stand bracket x 1

1/4" Sharp CCD bus camera x 1

0.8M aviation connection cable x 1

20m waterproof aviation connection cable x 1



With different cable, camera optional:
