Fiber Microscope
USD $750 - $950
/ Unit
1 Unit(Min.Order)
- 1000000 Unit / Units per Month
- Shanghai Shenzhen
- T/T L/C Credit Card
You May Like
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | Grandway/F2H | Model Number: | FIM-1 |
Product Description
Description:

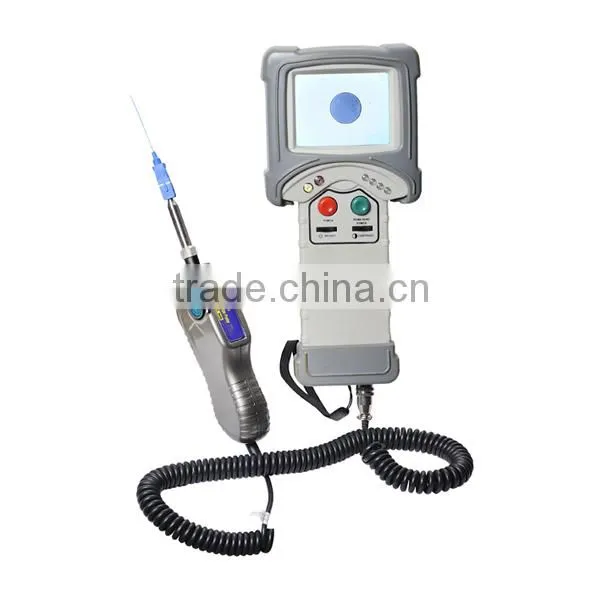

FIM-1 Fiber Microscope is used to inspect end-face of fiber optic connectors. It magnifies 125um fibers 200 times, enlarging picture through a video signal to the display where the status of fiber end-face is showed clearly.
Not only portable and easily in-hand, FIM-1 Fiber Microscope is also multi-functional. It can detect simplex and duplex fiber ends located in both male and female connectors. Also, working stably is it’s another feature. It eliminates the need to find solutions for hard-to-reach areas inspection, which can detect connectors even installed on the backside of patch panels or inside hardware devices, providing you a completely convenience for checking .
Features:
FIM-1 Fiber Microscope is used to inspect end-face of fiber optic connectors. It magnifies 125um fibers 200 times, enlarging picture through a video signal to the display where the status of fiber end-face is showed clearly.
Not only portable and easily in-hand, FIM-1 Fiber Microscope is also multi-functional. It can detect simplex and duplex fiber ends located in both male and female connectors. Also, working stably is it’s another feature. It eliminates the need to find solutions for hard-to-reach areas inspection, which can detect connectors even installed on the backside of patch panels or inside hardware devices, providing you a completely convenience for checking .
Features:
- 960x240 definition, 3.5 inch LCD monitor
- Power run-out alarm
- Magnetic attachment to equipment
- Battery safe and high volume, ≥5 hours continuous working time
- 0.3mm*0.3mm observable areas, 2mm*2mm adjustable areas
| Model | FIM-1 | |
| Image Zoom | 200X | |
| Display Screen | 3.5'' TFT | |
| AV Output | PAL/NTSC | |
| Resolution | 0.75um | |
| Video | N/A | |
| Audio | N/A | |
| Multiple in Display | N/A | |
| Power Supply | Li-ion battery 2200mAh & AC/DC adaptor | |
| Data Storage | N/A | |
| Connect to TV | N/A | |
| Connect to PC | optional | |
| USB Interface | optional | |
| Number of Channels | 1CH | |
| Back Light | yes | |
| Battery Life | >5 hours | |
| Storage Temperature | -10°C-40°C | |
| Working Temperature | -20°C-60°C | |
| Dimension | 240mm*100*35mm | |
| Net Weight | 580g | |
| Standard Accessories: | ||
| Name | Quantity | |
| FIM-1 probe | 1pc | |
| 3.5 inch display | 1pc | |
| SC-PC-F (For SC/PC adaptor) | 1pc | |
| FC-PC-F (For FC/PC adaptor) | 1pc | |
| LC-PC-F (For LC/PC adaptor) | 1pc | |
| 2.5PC-M (For 2.5mm connectors, SC/PC, FC/PC, ST/PC) | 1pc | |
| Lithium battery | 1pc | |
| DC 12V 2A adaptor | 1pc | |
| User manual | 1pc | |
| Soft case | 1pc | |
| Optional Accessories: | ||
| Name | Quantity | |
| USB function related | 1pc | |
| ST-PC-F (For ST/PC adaptor) | 1pc | |
| MU-PC-F (For MU/PC adaptor) | 1pc | |
| E2000-PC-F (For E2000/PC adaptor) | 1pc | |
| MTRJ-PC-F (For MTRJ/PC adaptor) | 1pc | |
| 1.25PC-M (For 1.25mm connectors, LC/PC, MU/PC) | 1pc | |
| SMA-M (For SMA/PC connector) | 1pc | |
| FC-APC-F (For FC/APC adaptor) | 1pc | |
| SC-APC-F (For SC/APC adaptor) | 1pc | |
| LC-APC-F ((For LC/APC adaptor) | 1pc | |
| E2000-APC-F ((For E2000/APC adaptor) | 1pc | |
| 2.5APC-M (For 2.5mm connectors, SC/APC, FC/APC, ST/APC) | 1pc | |
| 1.25APC-M ( (For 1.25mm connectors, LC/APC, MU/APC) | 1pc | |
| MPO-PC-F (For MPO/PC adaptor); MPO-APC-F (For MPO/APC adaptor) | 1set | |
| TIP60 (60 degree base for 60 degree tips) | 1pc | |
| FC-PC-F60 (For FC/PC adaptor at 60 degree testing) | 1pc | |
| SC-PC-F60 (For SC/PC adaptor at 60 degree testing) | 1pc | |
| LC-PC-F60 (For LC/PC adaptor at 60 degree testing) | 1pc | |
| LC-APC-F60 (For LC/APC adaptor at 60 degree testing) | 1pc | |
| SC-APC-F60 (For SC/APC adaptor at 60 degree testing) | 1pc | |
